61 31 310 Replacing brake-light switch: Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Removing instrument panelling at bottom left, refer to 61 31 016 Removing and installing / replacing dip switch for direction of travel

Disconnect connector.

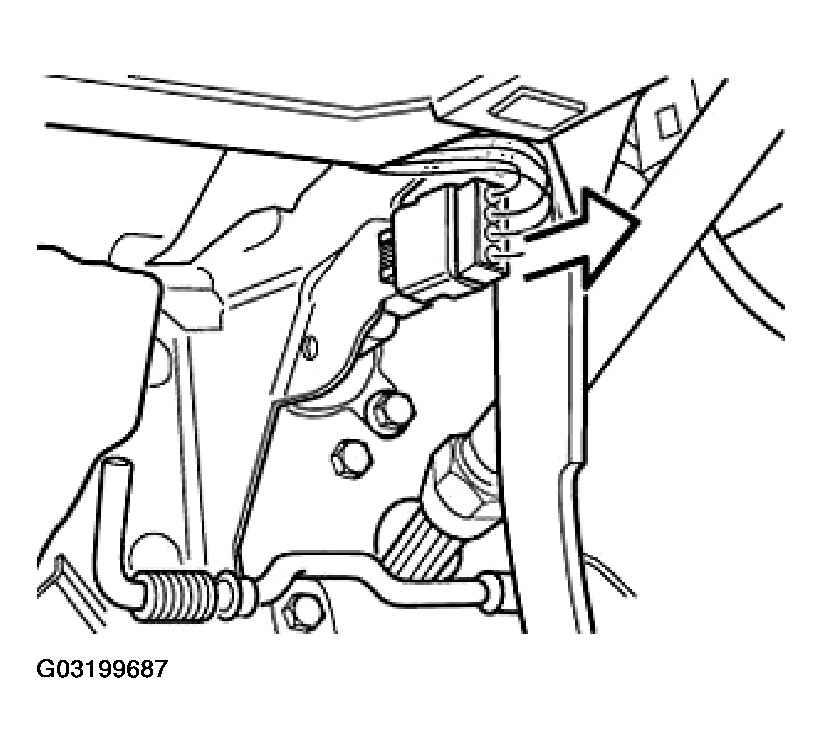

Fig 1: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Depress brake pedal as far as possible.

Pull tappet and sleeve forward completely.
Press together clips and pull back switch.

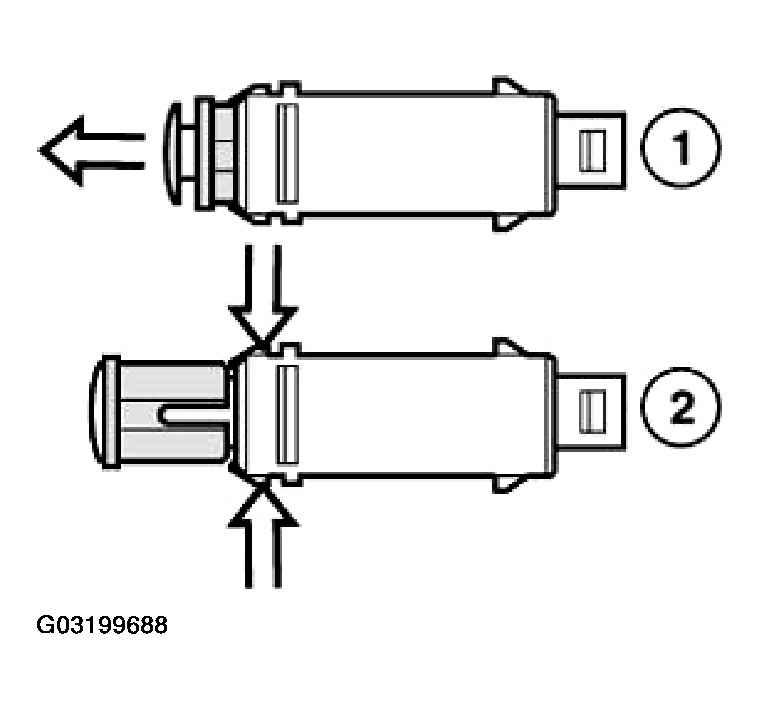

Fig 2: Removing Switch
Courtesy of BMW OF NORTH AMERICA, INC.
