61 31 040 Replacing windshield wiper switch: Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Turn steering wheel to straight-ahead position.

Remove steering wheel, refer to STEERING WHEEL .

Remove instrument panelling at bottom left.

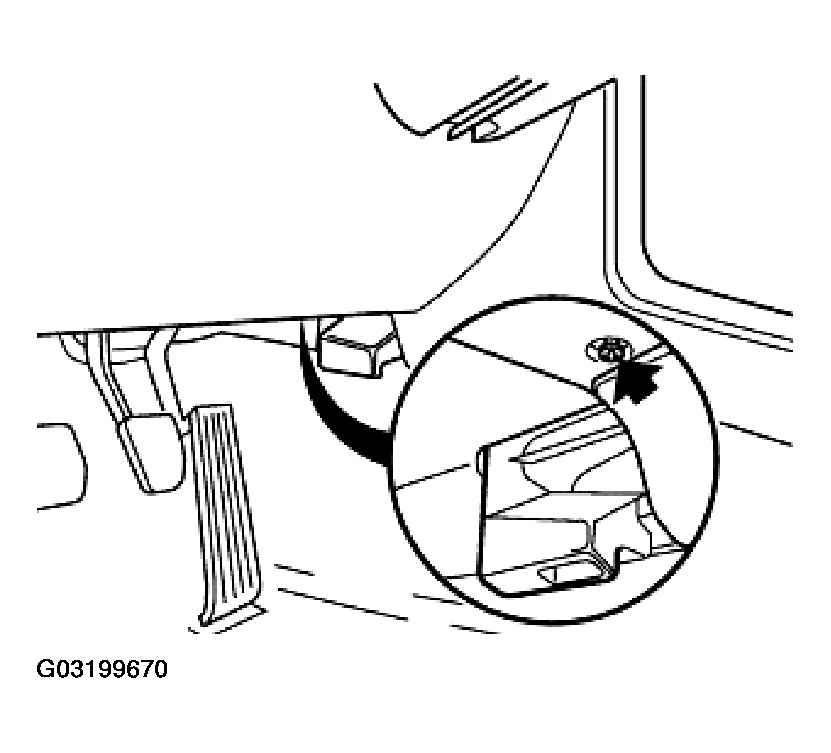

Fig 1: Removing Instrument Panelling

G03199670

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolts.

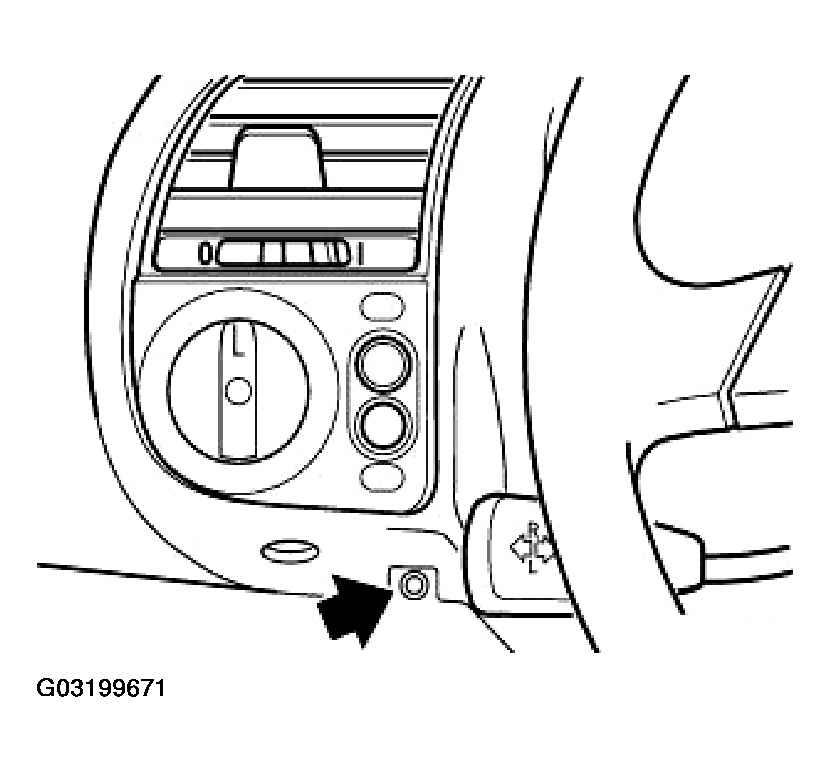

Fig 2: Removing Bolts

G03199671

Courtesy of BMW OF NORTH AMERICA, INC.

Pull bottom trim panel to the side out of the clips.

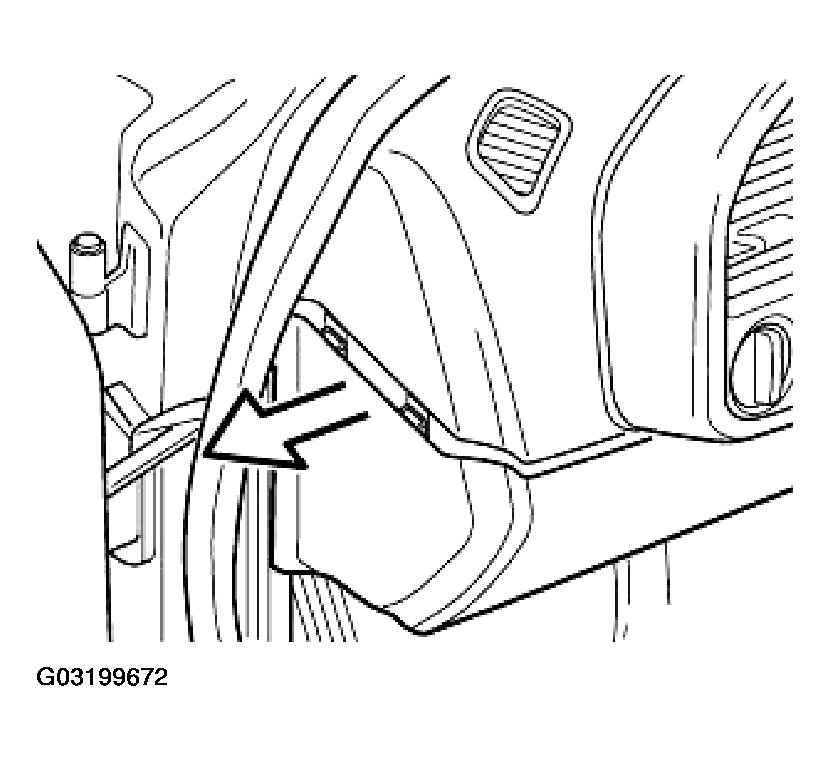

Fig 3: Pulling Bottom Trim Panel Out Of Clips

G03199672

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screw and take off lower section of steering -column panelling.

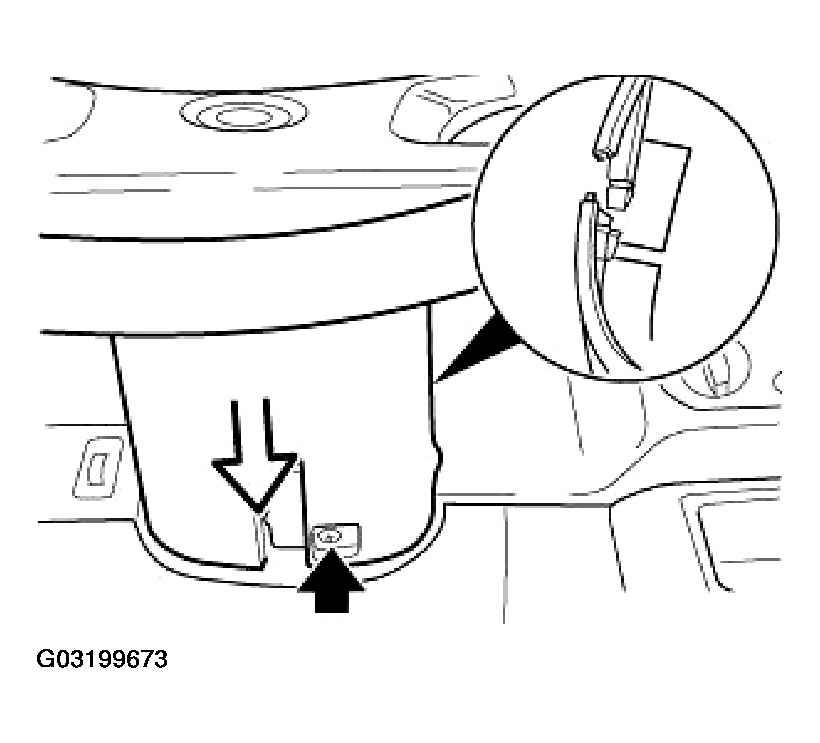

Fig 4: Removing Lower Section Of Steering -Column Panelling

G03199673

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screw for holder of steering-column stalk.

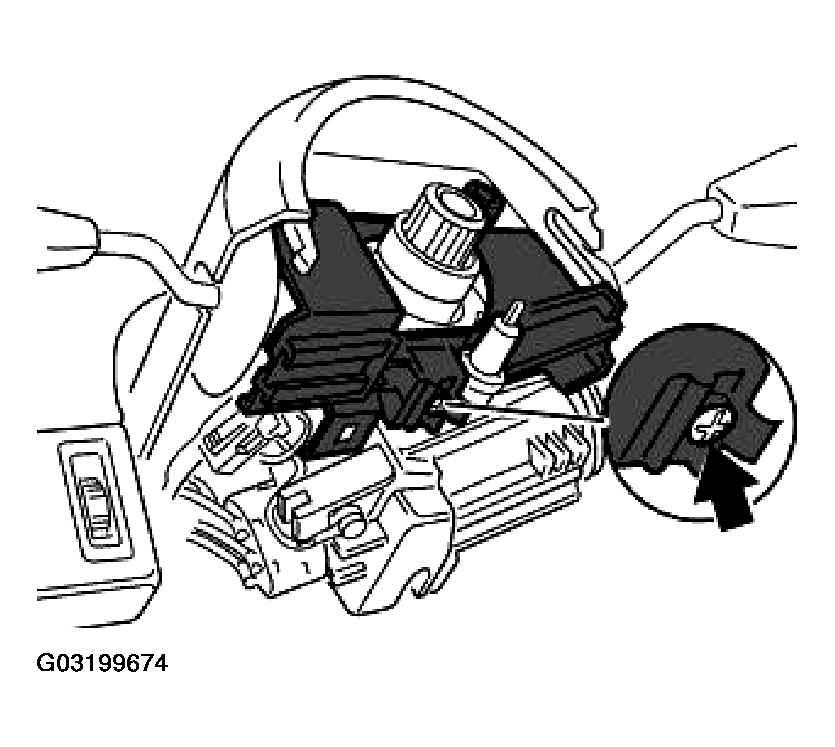

Fig 5: Removing Screw For Holder Of Steering-Column Stalk

G03199674

Courtesy of BMW OF NORTH AMERICA, INC.

Lever off holder in downwards direction using a screwdriver.

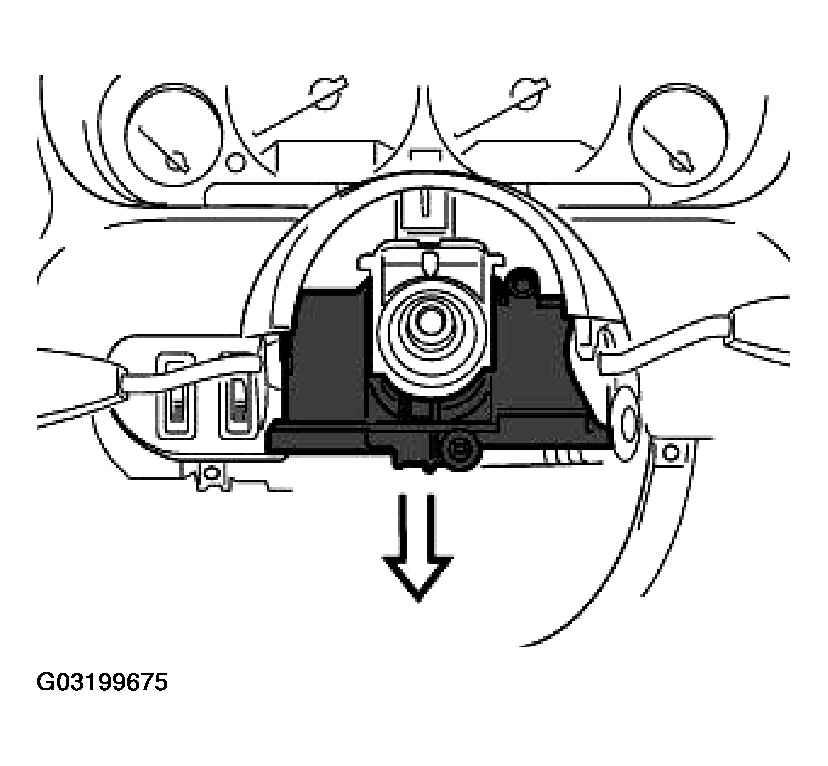

Fig 6: Removing Holder

G03199675

Courtesy of BMW OF NORTH AMERICA, INC.

Compress retainers on both sides and pull out lever.

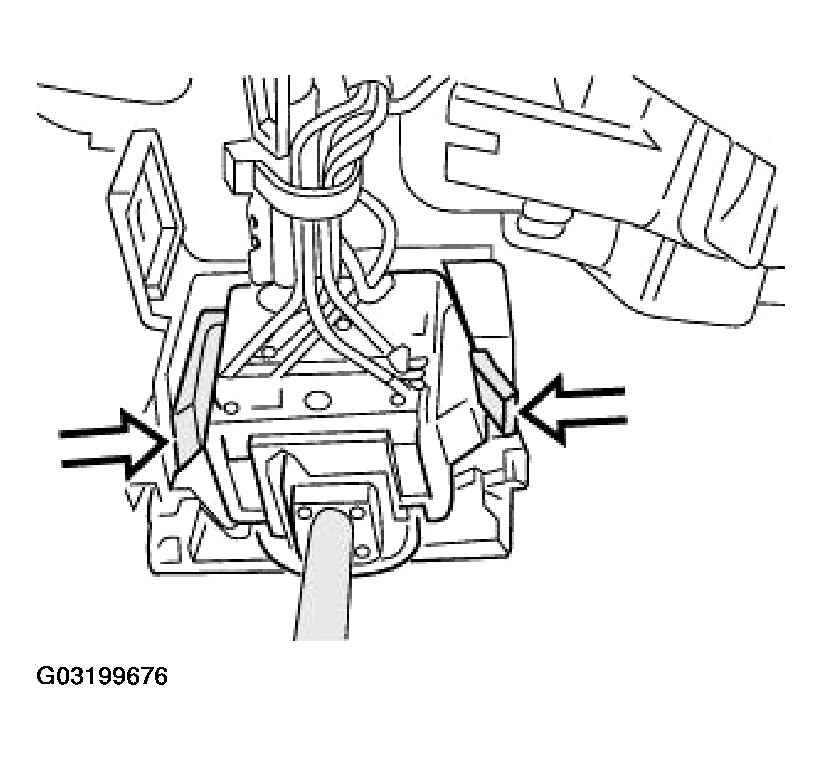

Fig 7: Compressing Retainers

G03199676

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen cable straps on steering column.

Disconnect connector.

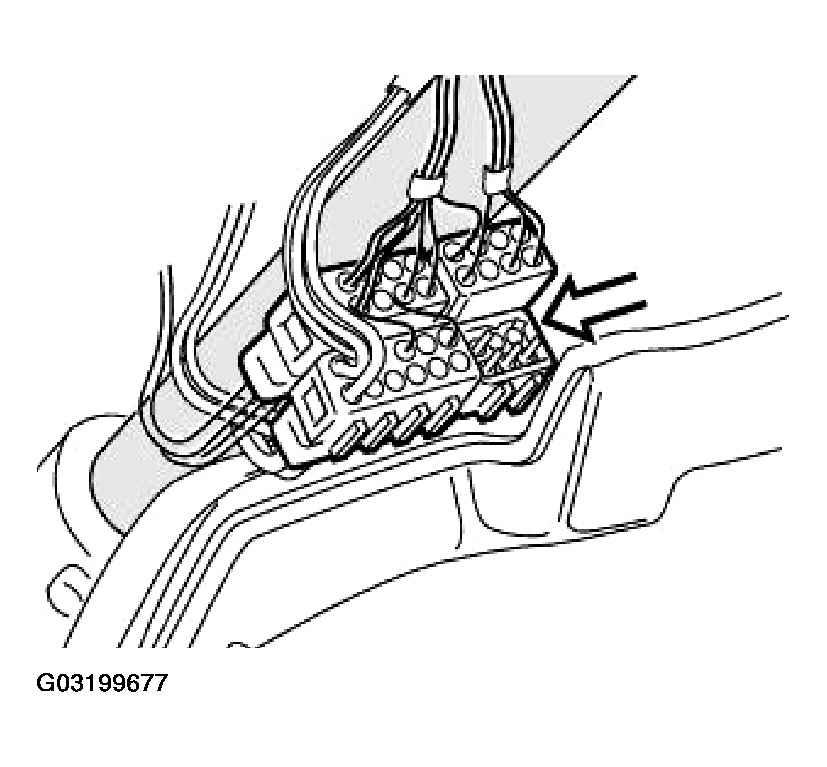

Fig 8: Disconnecting Connector

G03199677

Courtesy of BMW OF NORTH AMERICA, INC.
