61 31 016 Removing and installing / replacing dip switch for direction of travel: Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Turn steering wheel to straight-ahead position. Remove steering wheel, refer to STEERING WHEEL .

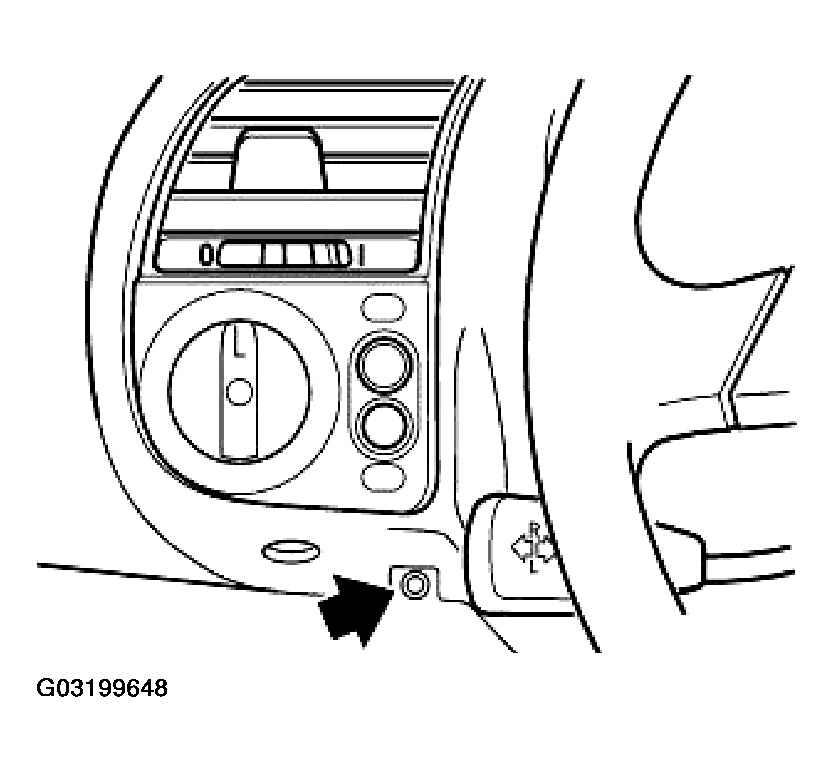

Remove instrument panelling at bottom left.

Fig 1: Removing Instrument Panelling At Bottom Left

G03199648

Courtesy of BMW OF NORTH AMERICA, INC.

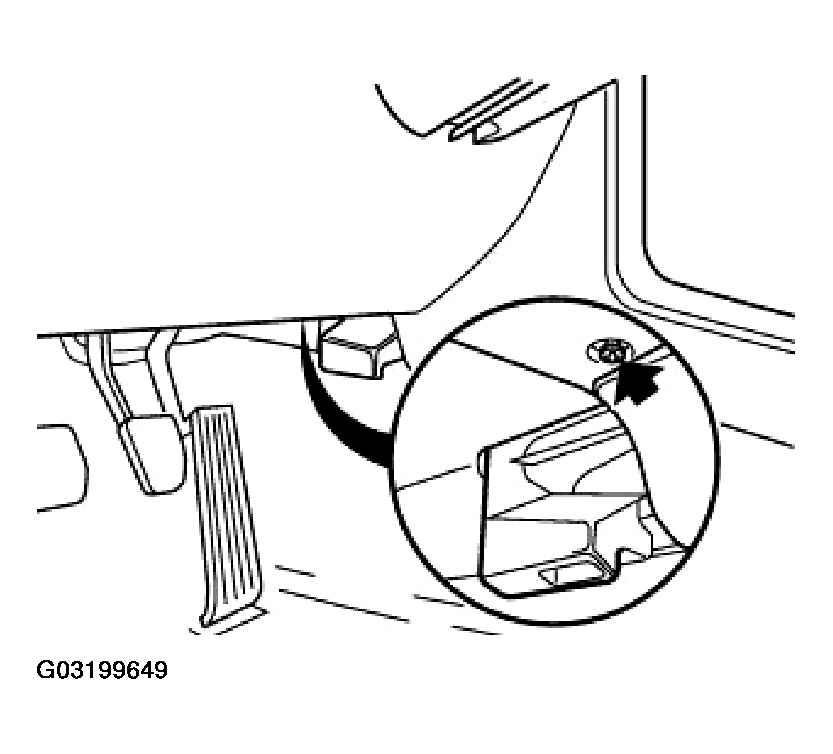

Unscrew screw.

Fig 2: Removing Screw

G03199649

Courtesy of BMW OF NORTH AMERICA, INC.

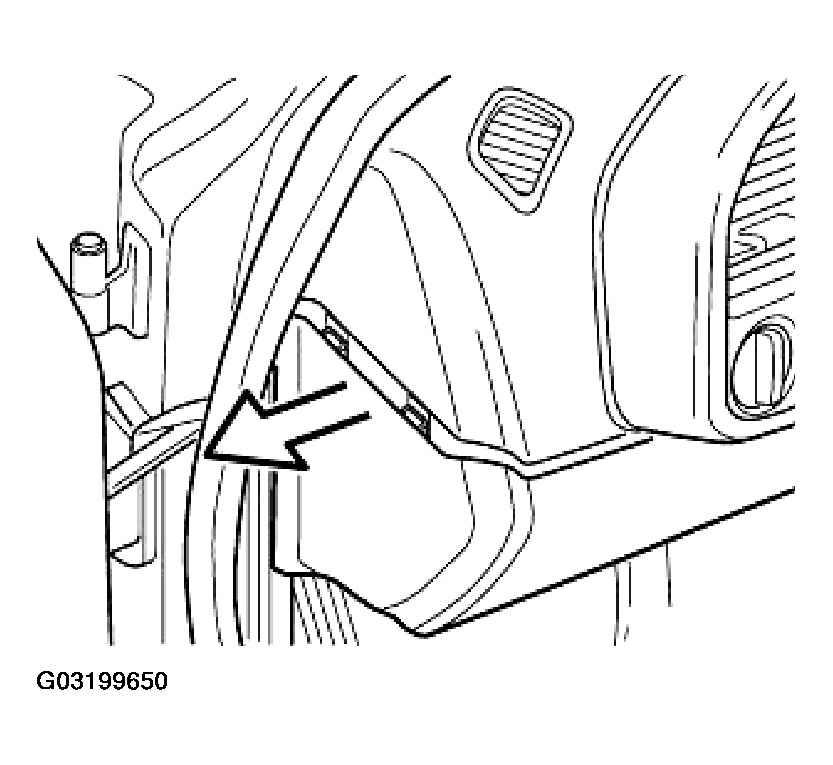

Pull bottom trim panel to the side out of the clips.

Fig 3: Pulling Bottom Trim Panel Out Of Clips

G03199650

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screw and take off lower section of steering -column panelling.

Fig 4: Removing Lower Section Of Steering -Column Panelling

G03199651

Courtesy of BMW OF NORTH AMERICA, INC.

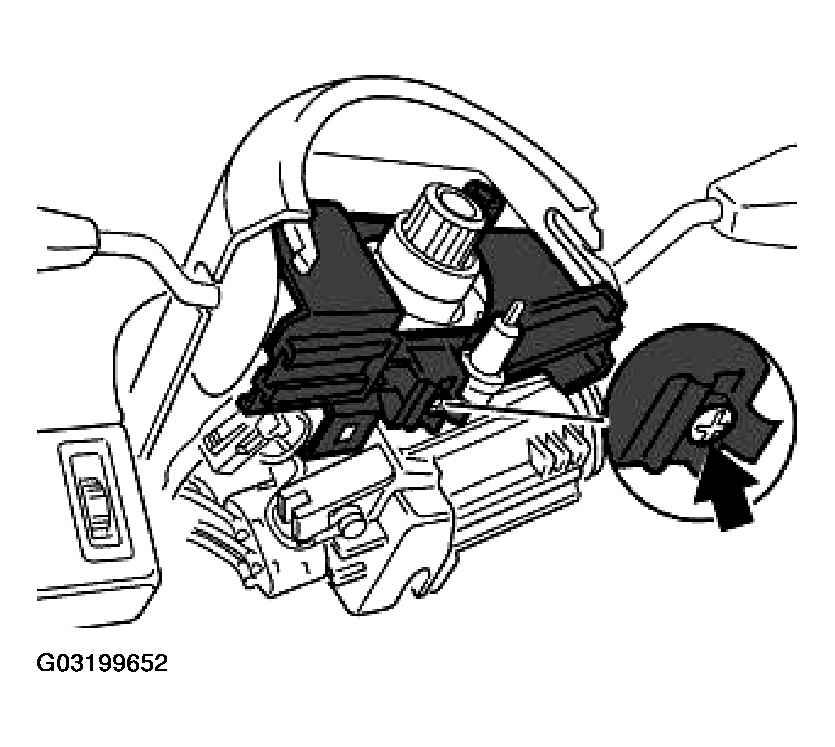

Remove screw for holder of steering-column stalk.

Fig 5: Removing Screw For Holder Of Steering-Column Stalk

G03199652

Courtesy of BMW OF NORTH AMERICA, INC.

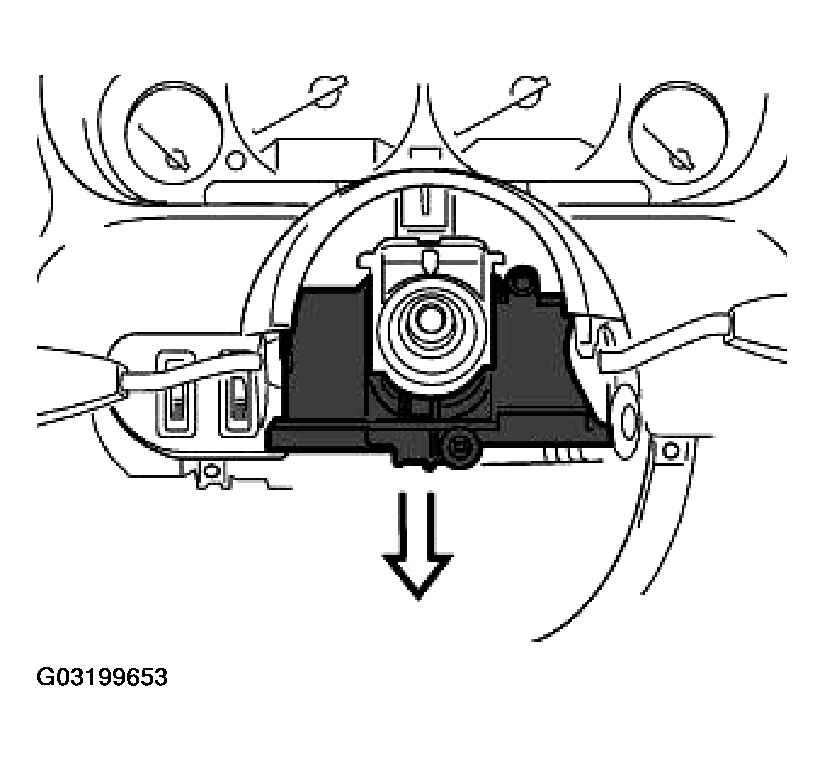

Lever off holder in downwards direction using a screwdriver.

Fig 6: Removing Holder

G03199653

Courtesy of BMW OF NORTH AMERICA, INC.

Compress retainers on both sides and pull out lever.

Fig 7: Removing Lever

G03199654

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen cable straps on steering column.

Disconnect plug connection.

Fig 8: Disconnecting Plug Connection

G03199655

Courtesy of BMW OF NORTH AMERICA, INC.
