Removing MPQ contacts from contact carrier:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Remove contact carrier (1) with MQS contacts from radio plug.

Raise lock (2) on radio plug.

Pull contact carrier (3) out of radio plug.

Fig 1: Removing Contact Carrier From Radio Plug

Courtesy of BMW OF NORTH AMERICA, INC.

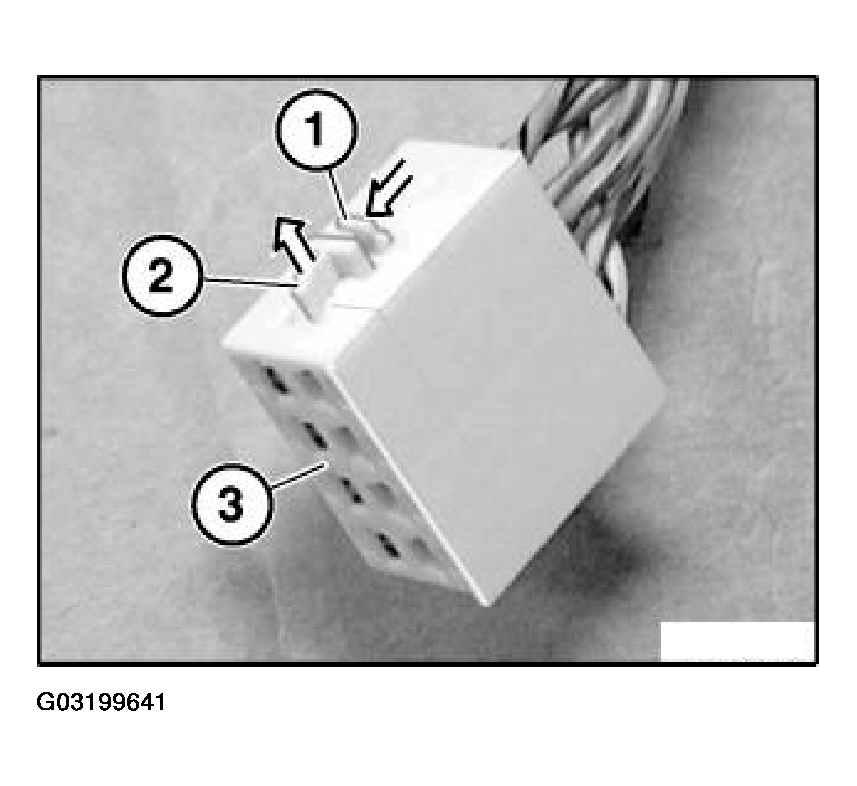

Press lock (1) in direction of arrow.

Pull secondary lock (2) in direction of arrow completely out of contact carrier (3).

Fig 2: Pulling Secondary Lock Out Of Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Press special tool 61 1 135 on inside of contact into contact carrier (2).

Pull wire with socket contact (1) out of contact carrier (2).

Fig 3: Removing Wire From Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
