Ultrasonic-welded connectors:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Ultrasonic-welded connectors (1) can be identified by the welds (2) on their longitudinal side.

The contacts of these connectors cannot be replaced. Replace plug completely.

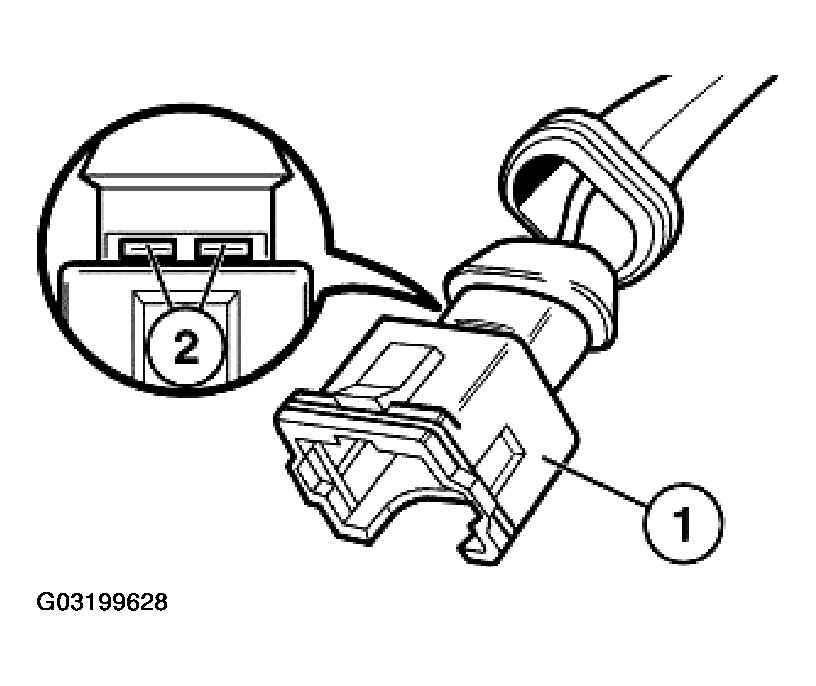

Fig 1: Identifying Ultrasonic-Welded Connectors
G03199628Courtesy of BMW OF NORTH AMERICA, INC.
