61 35 900 Removing and installing/replacing ring antenna of electronic immobilizer: Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

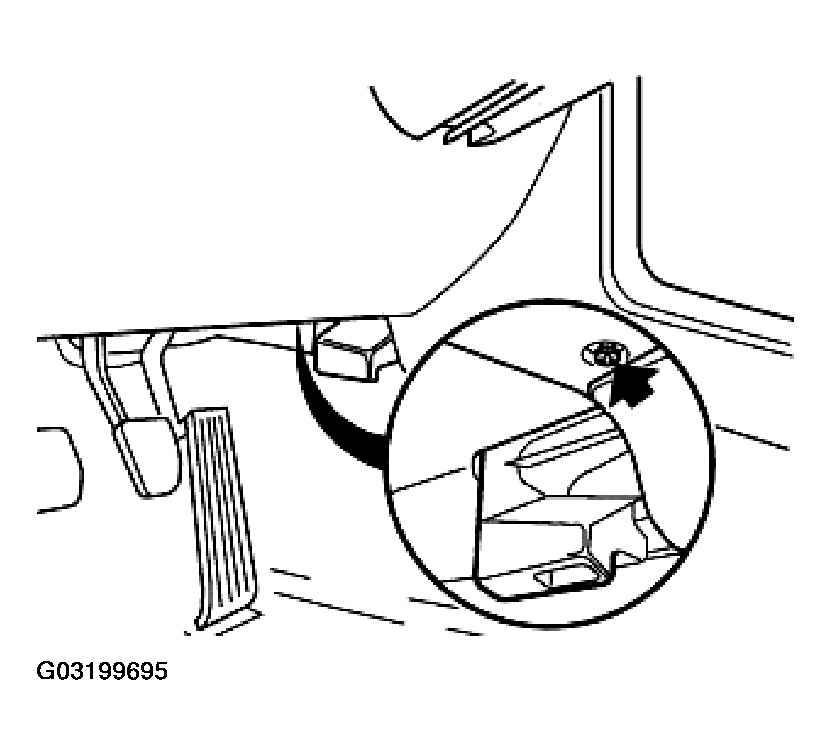

Remove instrument panelling at bottom left. Release screws

Fig 1: Removing instrument panelling at bottom left

G03199695

Courtesy of BMW OF NORTH AMERICA, INC.

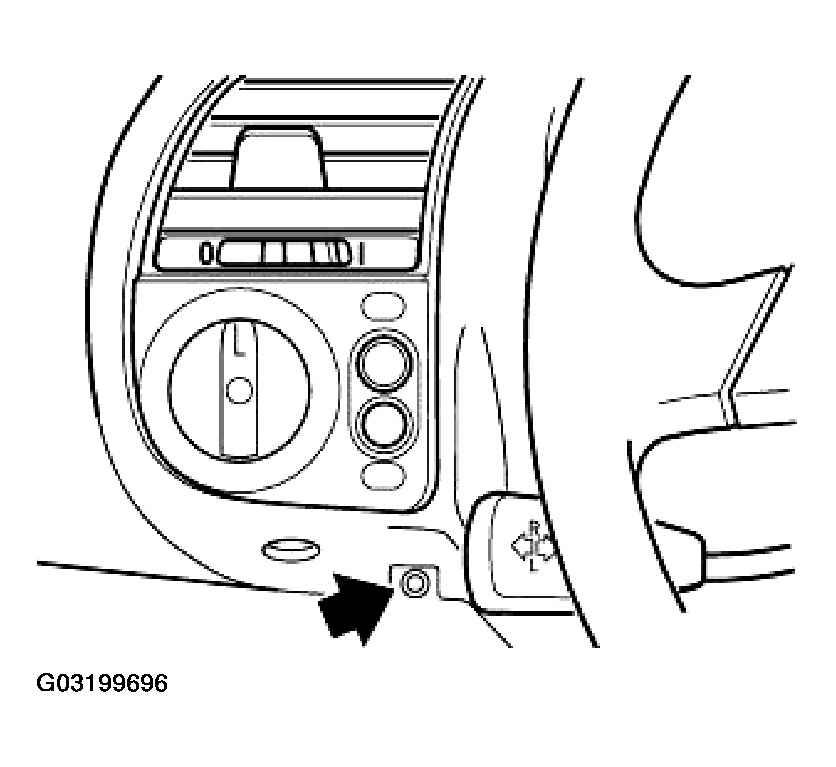

Unscrew screw.

Fig 2: Removing Screw

G03199696

Courtesy of BMW OF NORTH AMERICA, INC.

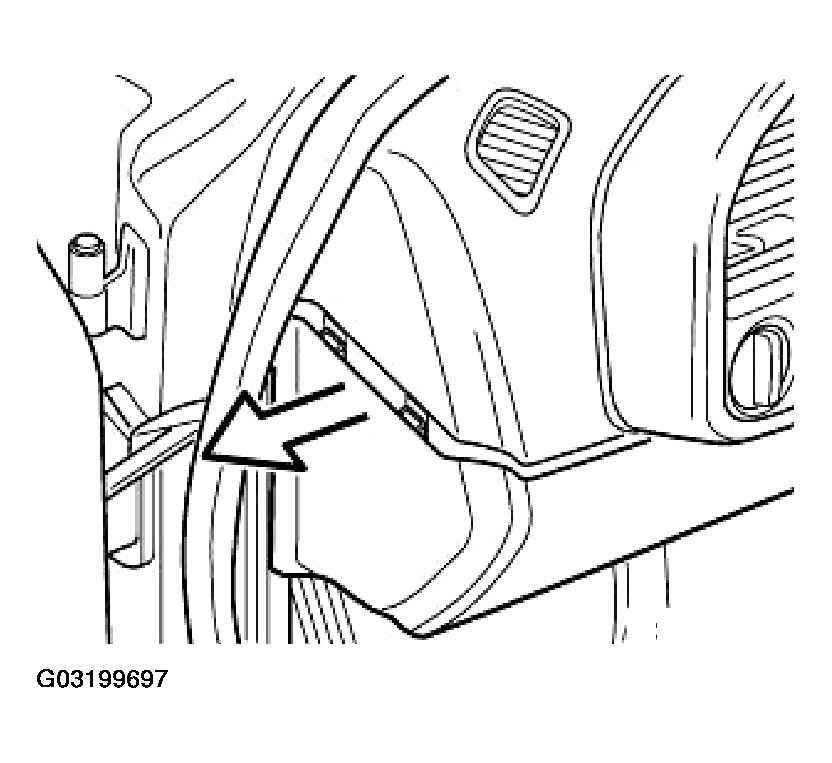

Pull panelling to side out of clips.

Fig 3: Pulling Panelling Out Of Clips

G03199697

Courtesy of BMW OF NORTH AMERICA, INC.

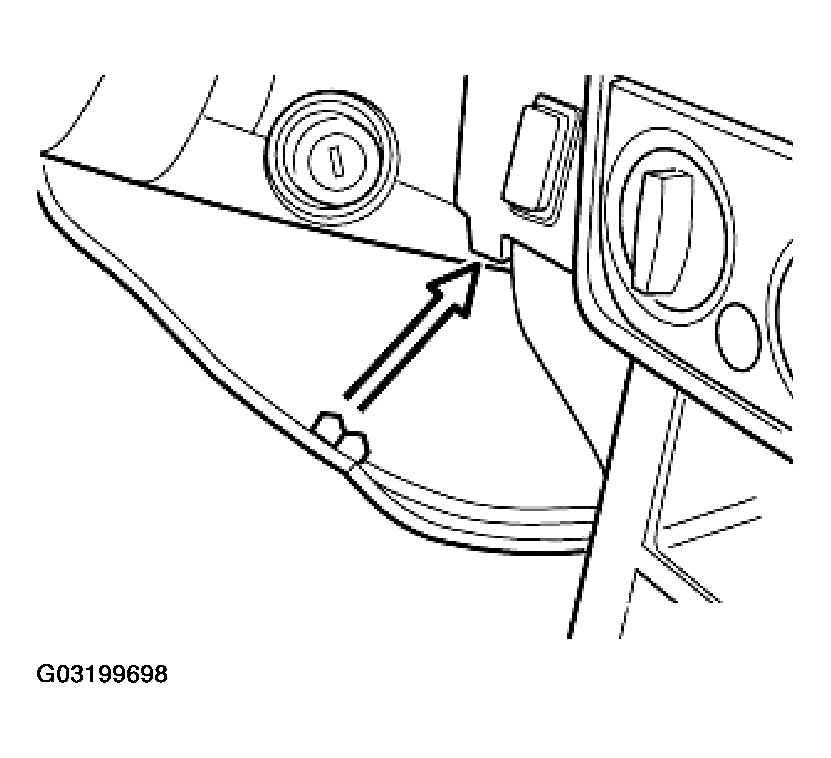

Pull front end of panelling in downward direction and remove.

Fig 4: Removing Front End Of Panelling

G03199698

Courtesy of BMW OF NORTH AMERICA, INC.

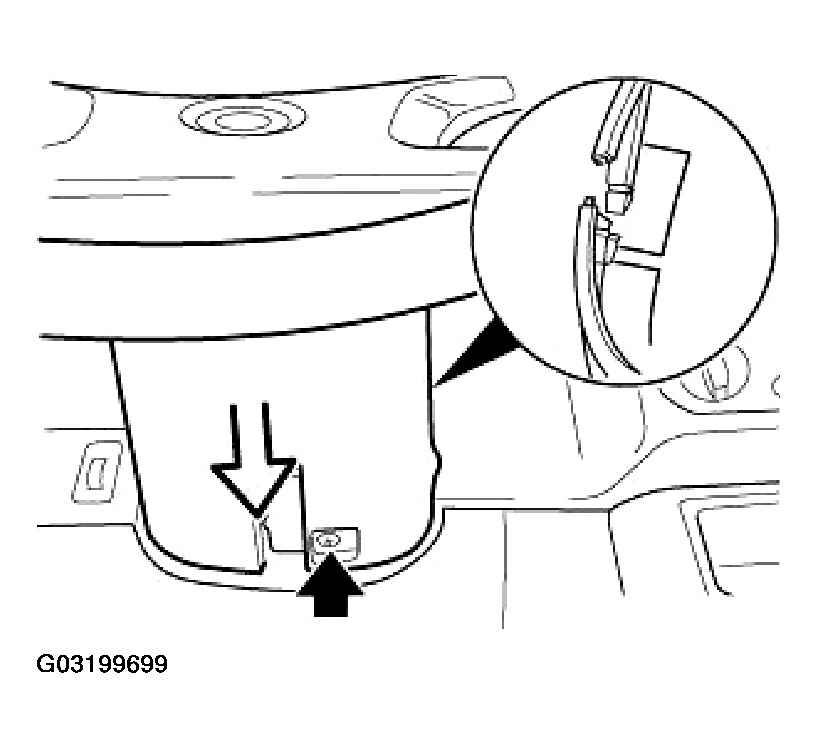

Unscrew screw.

Fig 5: Removing Lower Section Of Steering-Column Casing

G03199699

Courtesy of BMW OF NORTH AMERICA, INC.

Pull lower section of steering-column casing off upper section.
