61 12 525 Replacing both rear impulse sensors for ABS: Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Remove rear wheel, refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

Open protective box for ABS sensor.

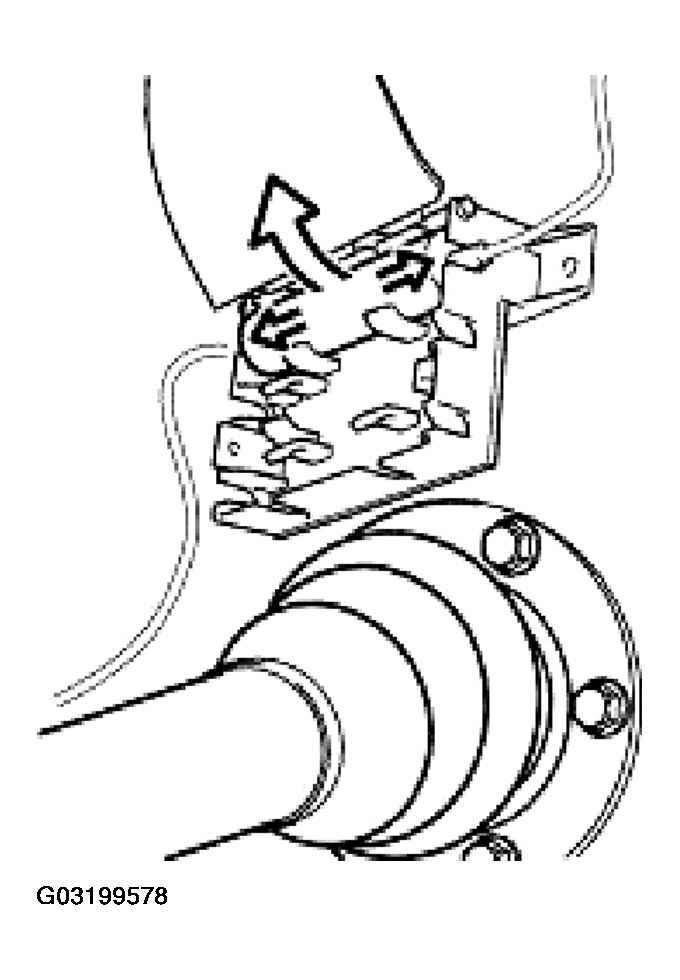

Fig 1: Opening Protective Box

Courtesy of BMW OF NORTH AMERICA, INC.

Procedures for rear-left sensor are analogous to those for rear-right sensor.

Lift out plug-in connection.

Disconnect connector.

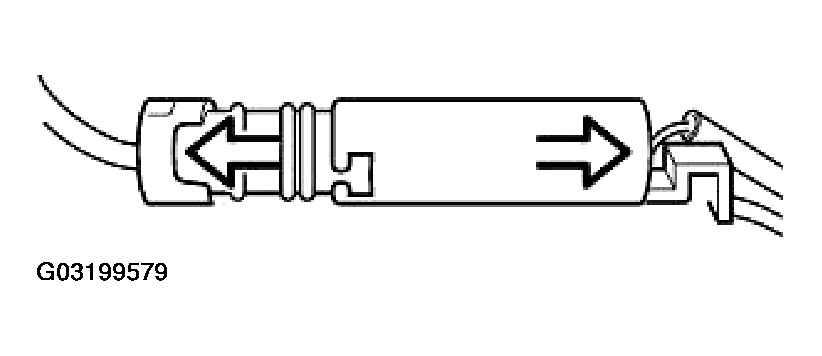

Fig 2: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew hexagon screw.

Lift out sensor.
