51 13... Replacing bracket for roof luggage rack at left or right (Z3 coupe, M coupe): Notes
WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.
Removing trim strip on roof frame at left or right, refer to 51 13 280 REMOVING AND INSTALLING TRIM STRIP ON LEFT OR RIGHT ROOF FRAME (Z3 COUPE, M COUPE)

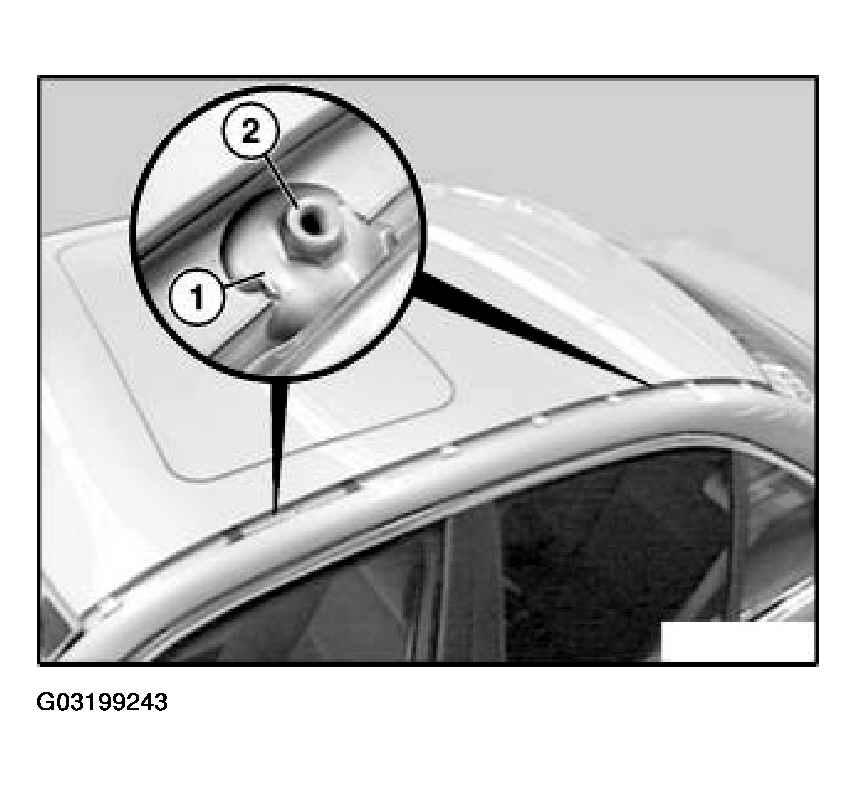

Remove body sealing compound (1) with special tool 00 9 322 and unfasten threaded pin (2).
