Windscreen removal system "Roll Out 2000"

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

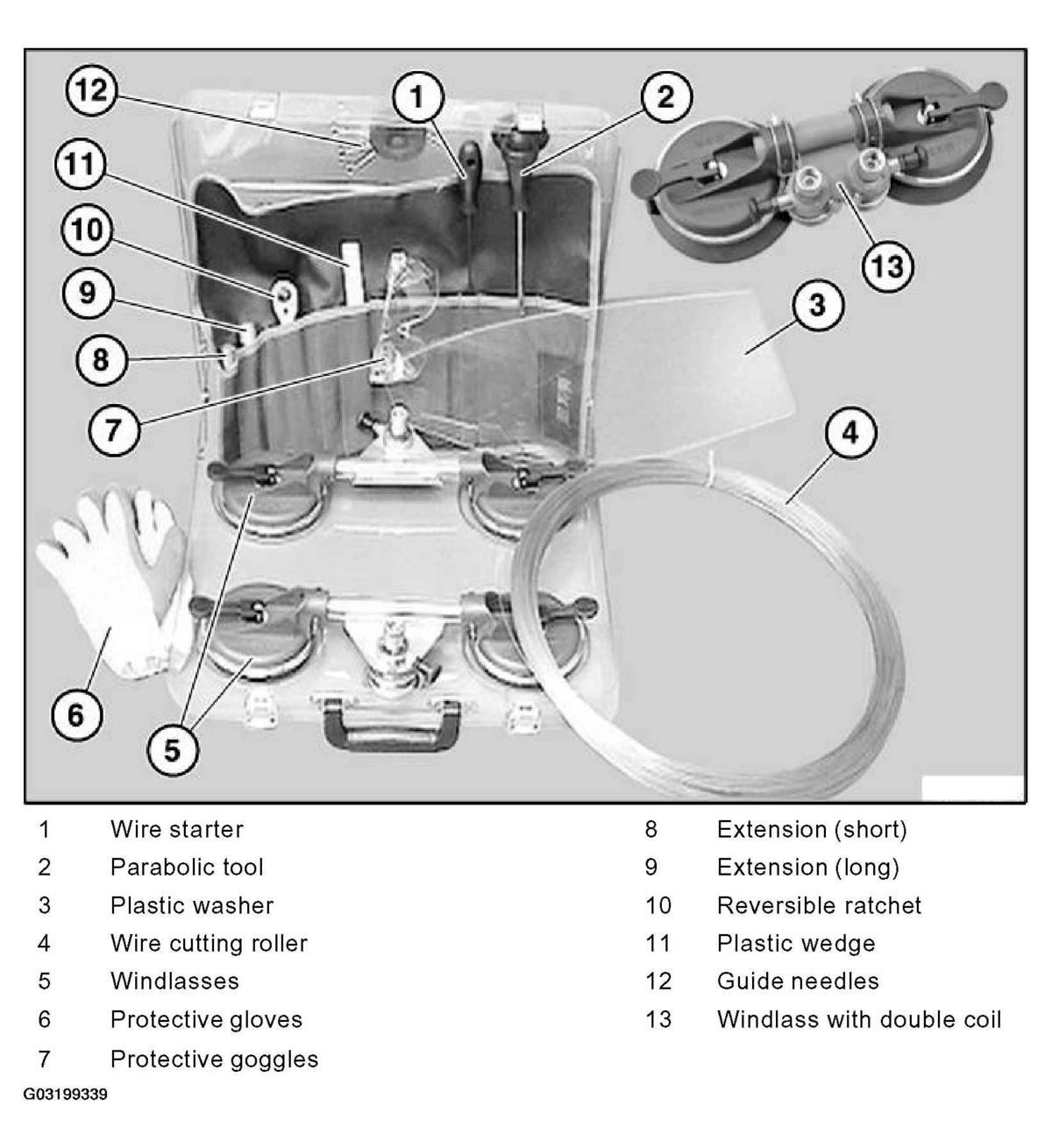

Fig 1: Identifying Windscreen Removal System Roll Out 2000

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Using the "Roll Out 2000" system (sourcing reference: BMW Workshop Equipment and Planning Documentation) minimizes paintwork and ergonomic damage as well as damage that is hazardous to health.

WARNING: Follow safety instructions for working on cars with AIRBAG systems (risk of injury). Refer to 51 00... Safety instructions for working on cars with AIRBAG systems .

IMPORTANT: Take care when handling sharp-edged tools and cutting wire (risk of damage to head AIRBAG).

IMPORTANT: Always keep both suckers dry and clean to ensure their optimum adhesion on the windscreen.

Lubricate coil if interlock rattling becomes too loud.

Always wear protective goggles and gloves for your own safety.
