Laying cutting wire around windscreen:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Make sure the cutting wire is located at all four corner points below the windscreen.

Check that the cutting wire is not caught on retainers or body.

Secure window on outside with adhesive tape against slipping

NOTE: Windows (1) with fitted seals (3) or sprayed-on surrounds:
  • Moisten cutting wire (4) and seals (3) on window (1) with water
  • Insert cutting wire (4) in bend (without kinking) between window (1) and body cutout (2)

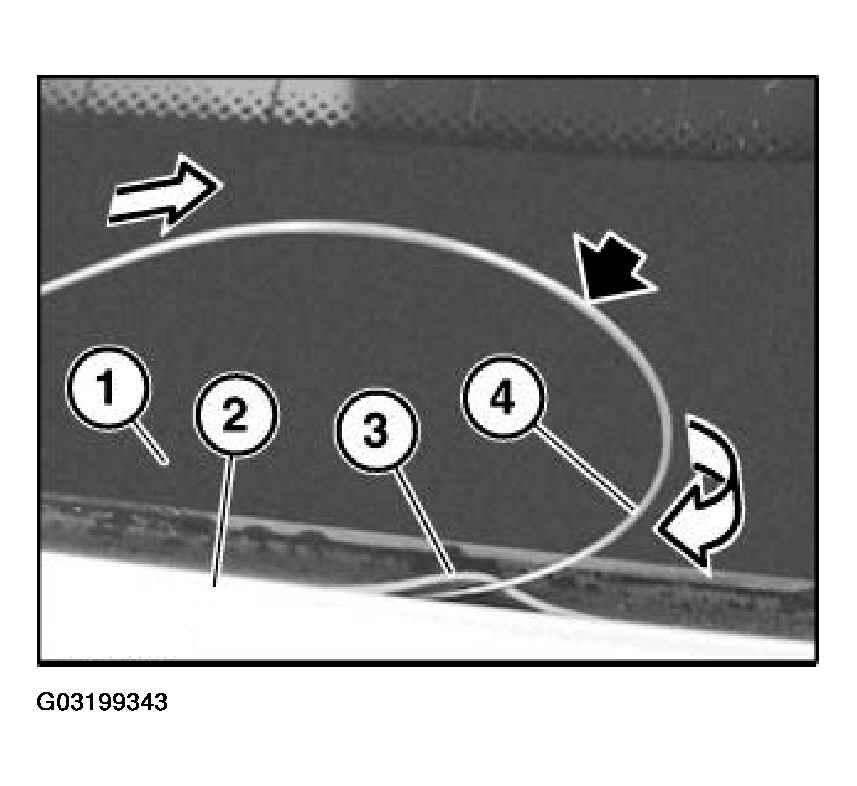

    Fig 2: Using Cutting Wire
    G03199343Courtesy of BMW OF NORTH AMERICA, INC.
