36 13 Subsequent Installation Of Wheel-Bolt Lock
WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.
Loosen wheel bolts.
Lift car until wheel can be turned.
Loosen wheel bolts enough for it to be easy to move wheel on wheel hub.

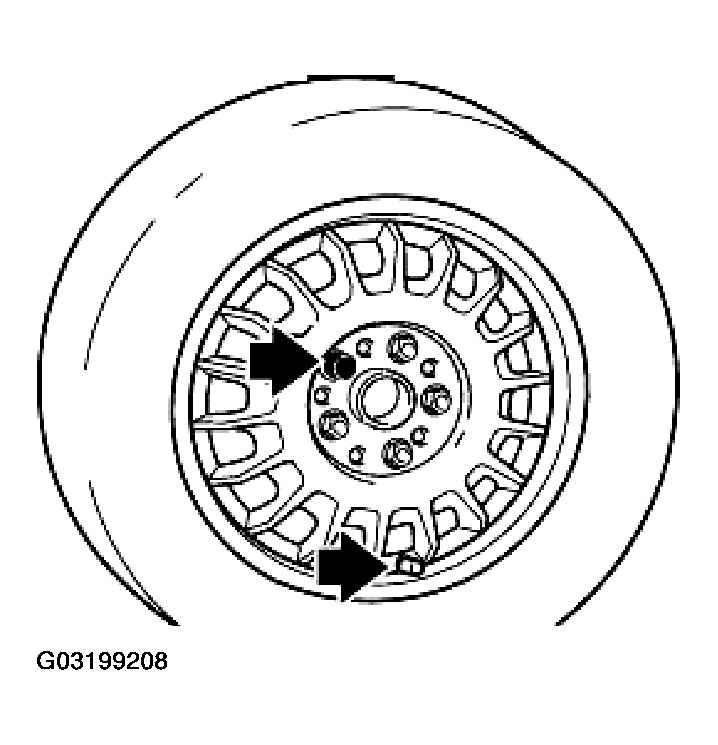

Turn wheel so that valve is face down.
Remove upper wheel bolt and insert wheel-bolt lock.
Possible play in wheel centre and wheel weight could cause imbalance.
This imbalance is reduced to a minimum by installing the somewhat heavier wheel-bolt lock in the top wheel-bolt position.

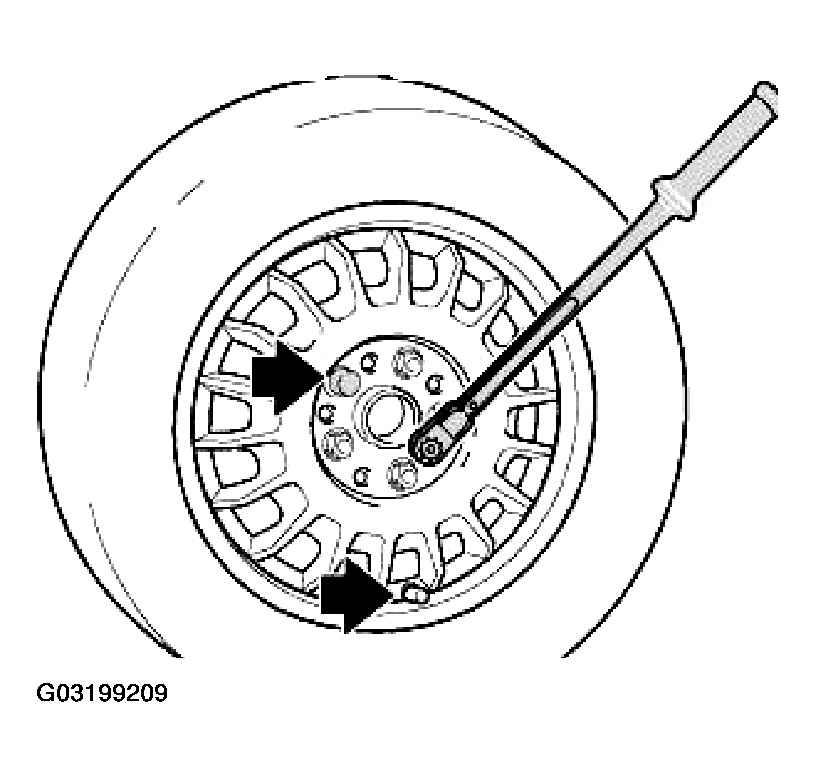

Tighten wheel bolts crosswise and by hand in this position (wheel-bolt lock at top, valve at bottom).
Lower car and tighten wheel bolts crosswise.
Torque wheel bolts to 110-130 Nm.
Should a customer complain about wheel imbalance after installation of wheel-bolt lock, wheels will have to be finish-balanced.
