26 11 665 Replacing Boot-Constant-Velocity Joint Removed

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Drive out cheese-head bolts using a plastic hammer.

Remove washers.

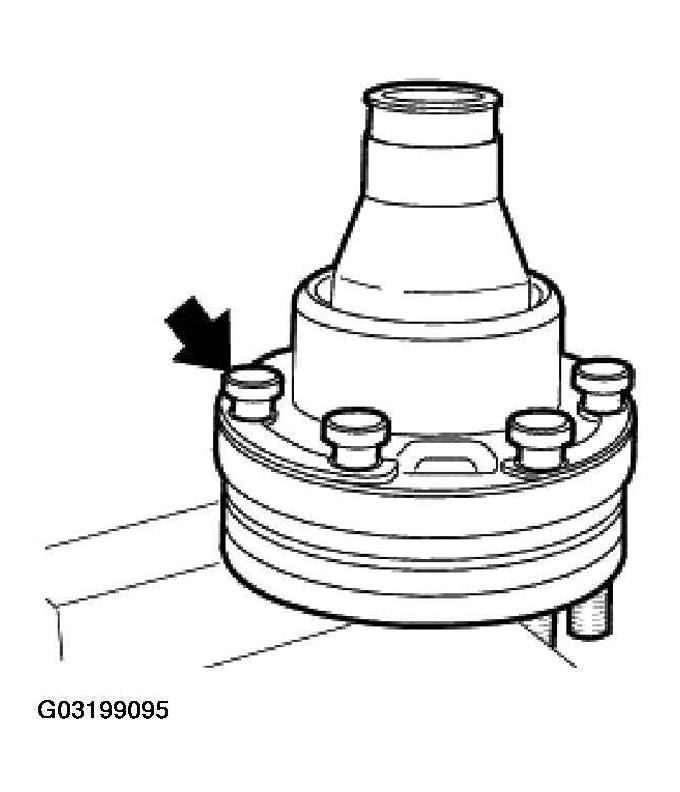

Fig 1: Removing Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Pull or knock off end cover (1).

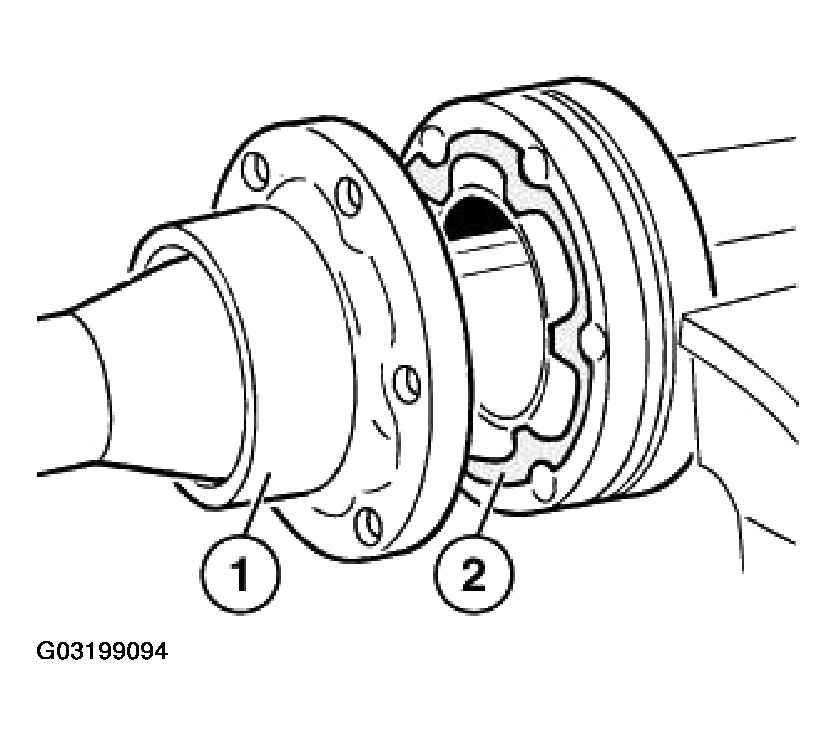

Fig 2: Pulling Off End Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Watch out for seal (2) between constant-velocity joint and end cover.

Check grease filling, adding grease if necessary. Refer to 26 00 PROPELLER SHAFT IN GENERAL .

Mount new end cover and boot on propeller shaft or on constant-velocity joint.

Install washers and cheese-head bolts.

Drive in cheese-head bolts to fit tightly using a plastic hammer.

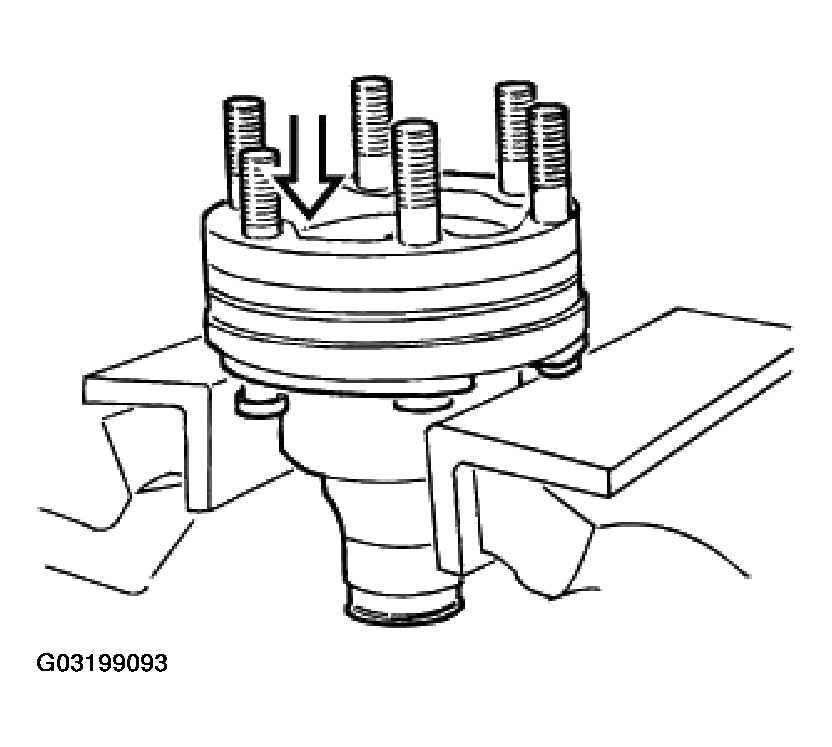

Fig 3: Installing Washers And Cheese-Head Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Pull boot onto propeller shaft.

Install hose clamp on boot and tighten.

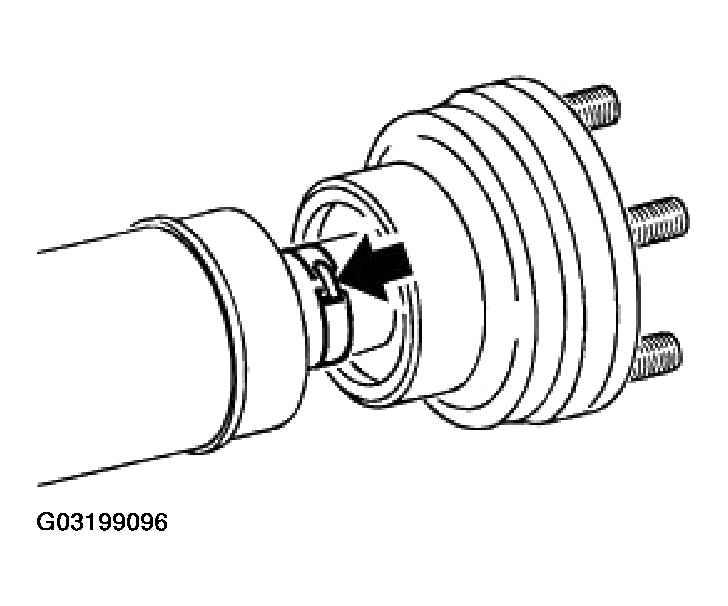

Fig 4: Pulling Boot Onto Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
