26 11 160 Replacing Constant-Velocity Joint For Propeller Shaft: Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Removing Joint:

Remove and install complete propeller shaft, refer to 26 11 000 REMOVING AND INSTALLING PROPELLER SHAFT - VERSION WITH REAR CONSTANT-VELOCITY JOINT

Remove hose clamp.

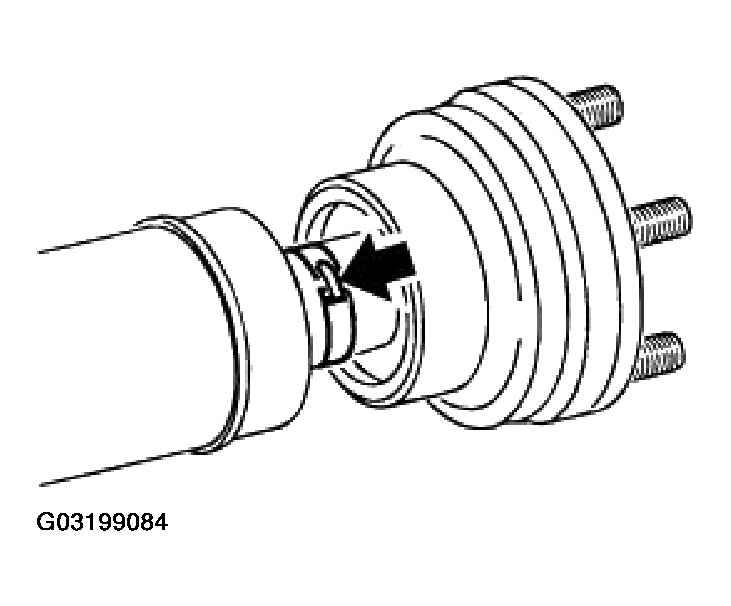

Fig 1: Removing Hose Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out circlip (1).

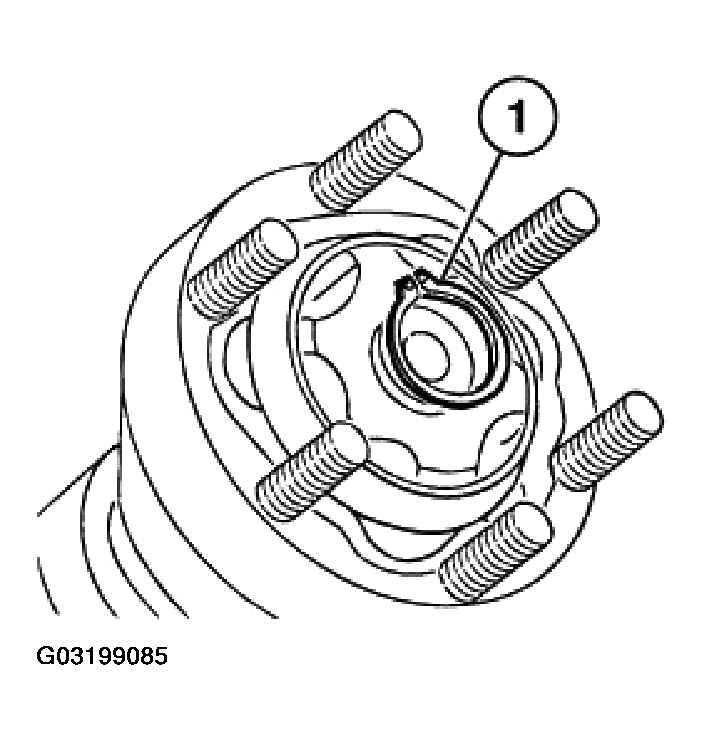

Fig 2: Replacing Circlip

Courtesy of BMW OF NORTH AMERICA, INC.
