26 11 090 Removing And Installing Or Replacing Center Mount Of Propeller Shaft: Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Remove propeller shaft, refer to 26 11 000 REMOVING AND INSTALLING PROPELLER SHAFT - VERSION WITH REAR CONSTANT-VELOCITY JOINT .

Completely fill center bore with viscous grease.

Drive special tool 11 1 130 into center bore with a plastic hammer.

The center mount is forced out by applying pressure to grease fill (1).

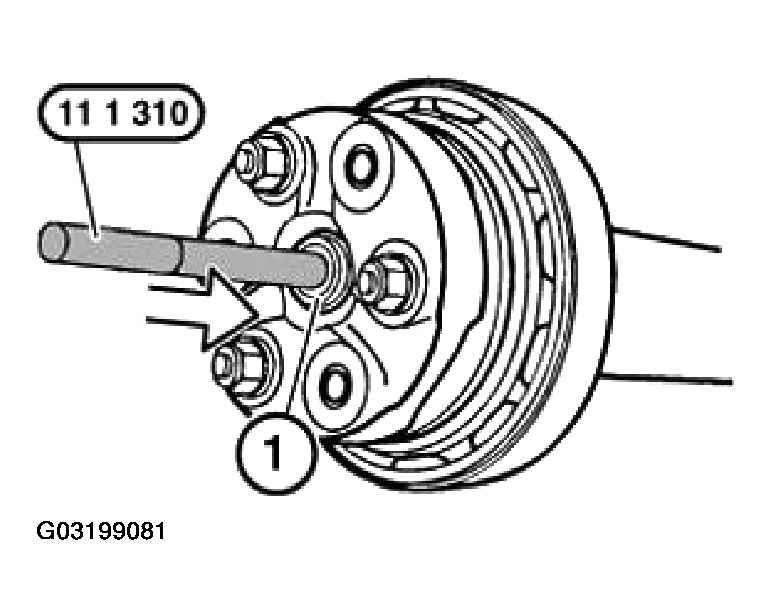

Fig 1: Removing Center Mount

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, top up grease repeatedly.

NOTE: To drive out the mount, you can also fill the centering bore with water instead of grease.

Remove grease or water from mount bore.

Drive in center mount (1) with special tools 00 5 500 and 11 2 030 up to protrusion (A).

Fig 2: Installing Center Mount

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Apply Molykote Longterm 2 grease to center mount (1). Lubricant volume: approx. 2 g.
