26 11 000 Removing And Installing Propeller Shaft - Version With Slide: Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

26 1 040

Remove catalytic converter with center muffler. Refer to 18 32 040 REMOVING AND INSTALLING/REPLACING CATALYTIC CONVERTER WITH CENTER MUFFLER (Z3 / S54) .

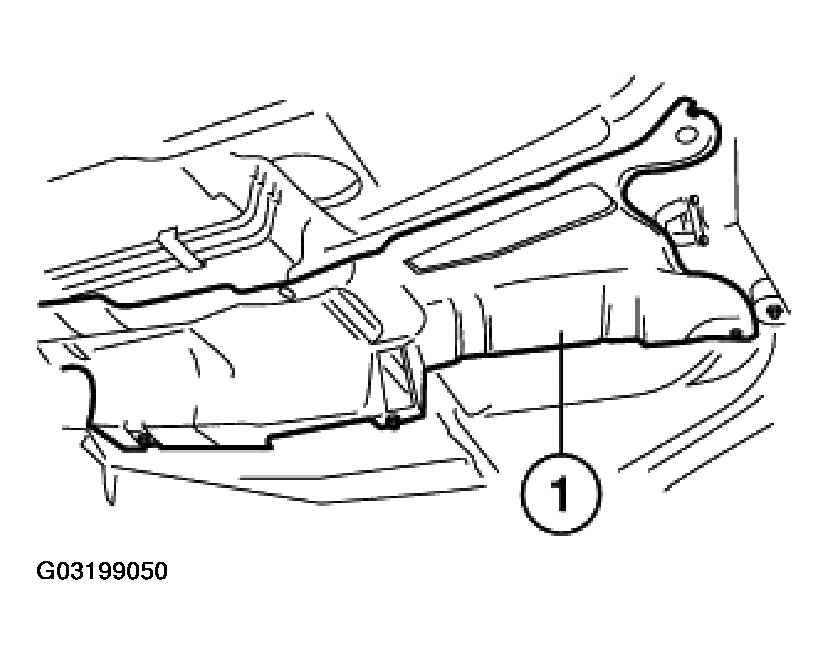

Remove heat shield (1).

Fig 1: Removing Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

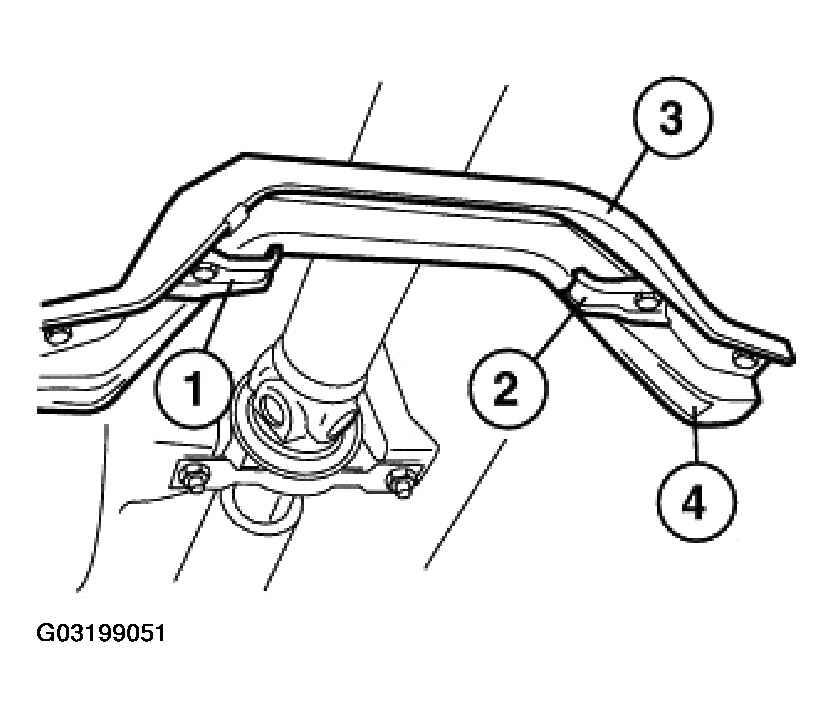

Remove bracket (1 and 2) for exhaust suspension.

Fig 2: Removing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bar (3).
