26 11 000 Removing And Installing Propeller Shaft - Version With Rear Constant-Velocity Joint -: Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete exhaust system.

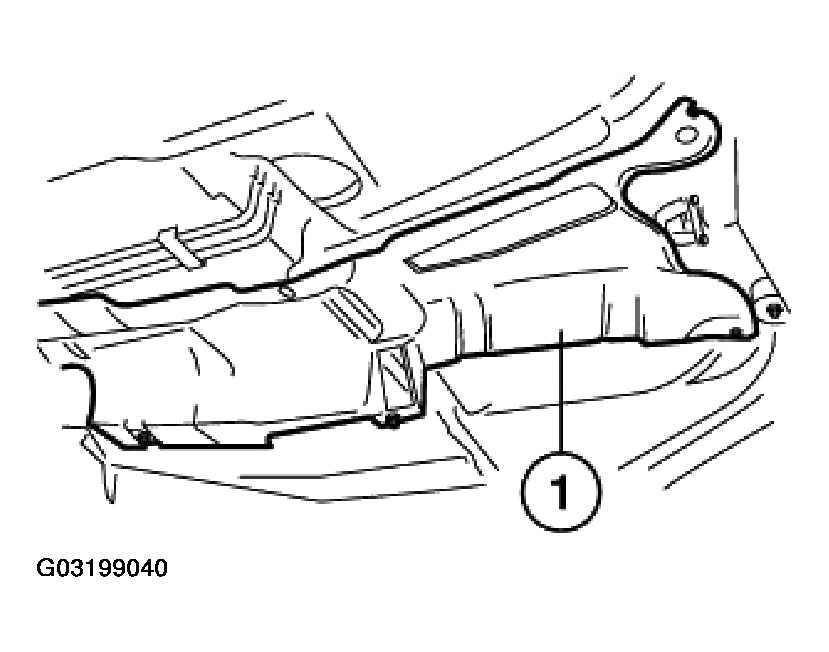

Remove heat shield (1).

Fig 1: Removing Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

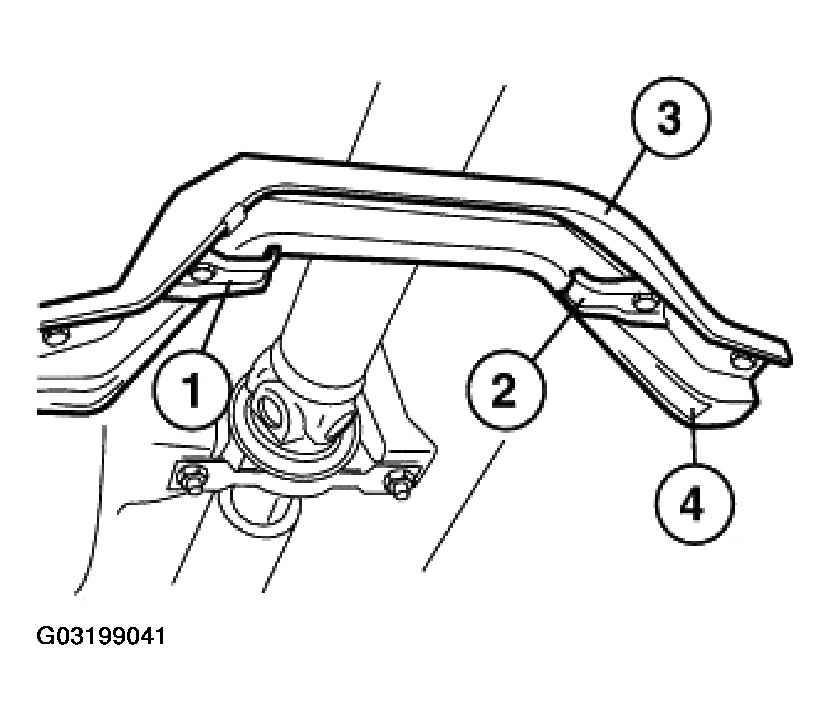

Remove bracket (1 and 2) for exhaust suspension. Remove bar (3).

Fig 2: Removing Bracket For Exhaust Suspension

Courtesy of BMW OF NORTH AMERICA, INC.
