26 11 000 Removing And Installing Propeller Shaft - Version With Rear Constant-Velocity Joint -: Installation:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Install bar (3) with long collar (4) towards front.

Version with joint disk, front:

Remove flexible disk from transmission.

Tightening torque, 26 11 1AZ. Refer to 26 11 PROPELLER SHAFT, COMPLETE .

Fig 1: Removing Flexible Disk

Courtesy of BMW OF NORTH AMERICA, INC.

Replace stop nuts. Only tighten screw connection by way of nut.

To prevent subjecting flexible disk to torsion stress, turn nuts/screws on flange side.

Fig 1: Replacing Stop Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove constant-velocity joint from final drive.

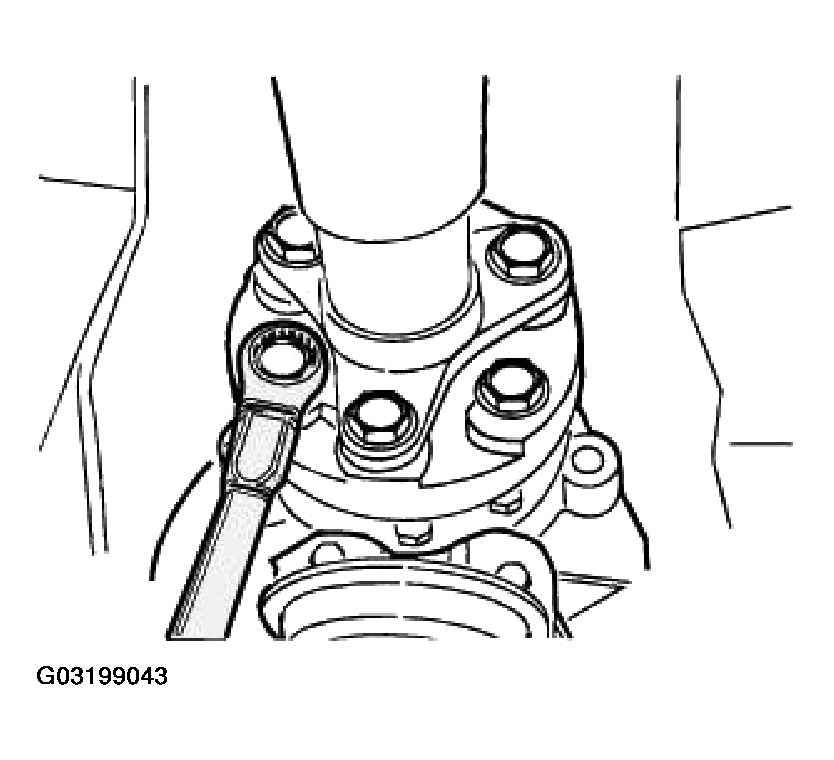

Fig 2: Removing Constant-Velocity Joint From Final Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Remove center bearing.

Tightening torque, 26 11 6AZ. Refer to 26 11 PROPELLER SHAFT, COMPLETE .

Fig 3: View Of Center Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Pretension center bearing in direction of travel 2... 4 mm (A).

CAUTION: Do not let propeller shaft fall into joints. In particular, on constant-velocity joint, rubber collar can become squashed, or joints may be damaged.

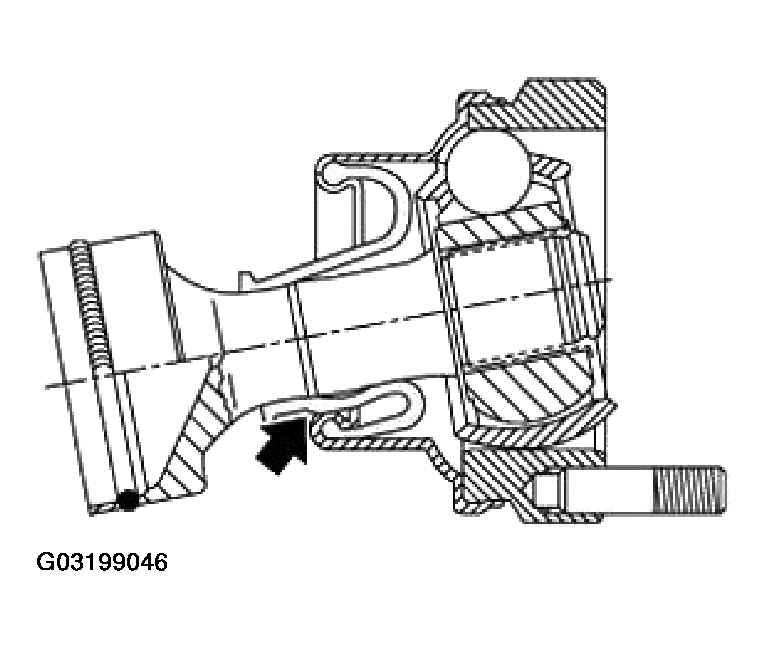

Fig 1: Identifying Rubber Collar Damage

Courtesy of BMW OF NORTH AMERICA, INC.

Pull propeller shaft downwards at center bearing and in so doing detach from centering pin on manual transmission or constant-velocity joint from final drive.

NOTE: Protect constant velocity joint with transportation cap against contamination.

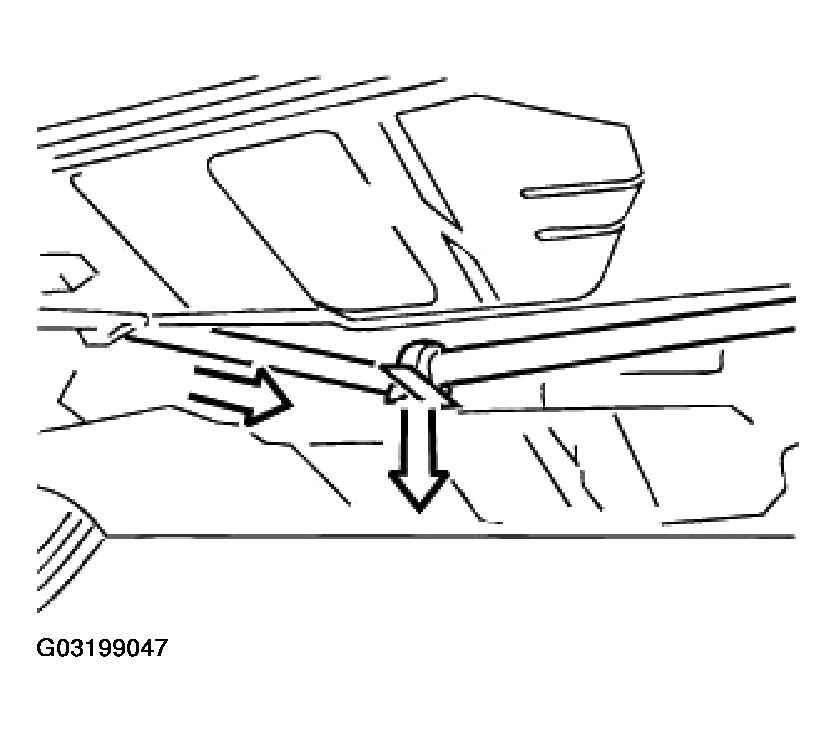

Fig 2: Removing Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Top up grease fill.

Quantity of grease, refer to PROPELLER SHAFT - TECHNICAL DATA .

Withdraw constant-velocity joint (1) up to stop.

Degrease sealing surfaces on constant velocity joint and drive flange.

Replace gasket (2).

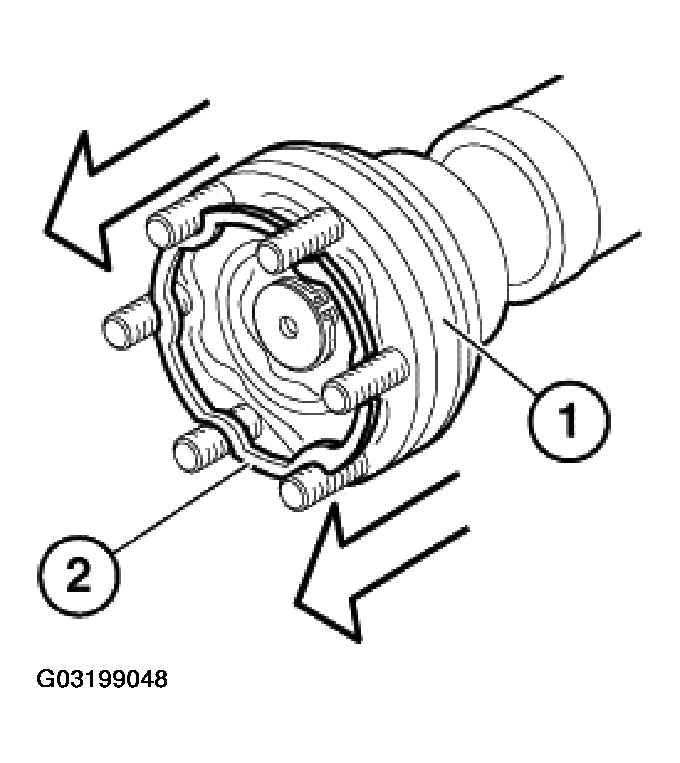

Fig 1: Replacing Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Use new nuts.

Attach propeller shaft with pulled-apart constant-velocity joint to drive flange of final drive.

CAUTION: The constant-velocity joint must not be compressed during assembly because the grease fill can force away the sealing ring, leading to leakage from the constant-velocity joint. By alternately tightening 2 opposing nuts, draw constant-velocity joint uniformly into drive flange. Then tighten down the remaining nuts.

Tightening torque, 26 11 4AZ. Refer to 26 11 PROPELLER SHAFT, COMPLETE .

Check centering mount (4).

Replace damaged centering mount.

Coat centering mount with Molykote Longterm 2 grease.

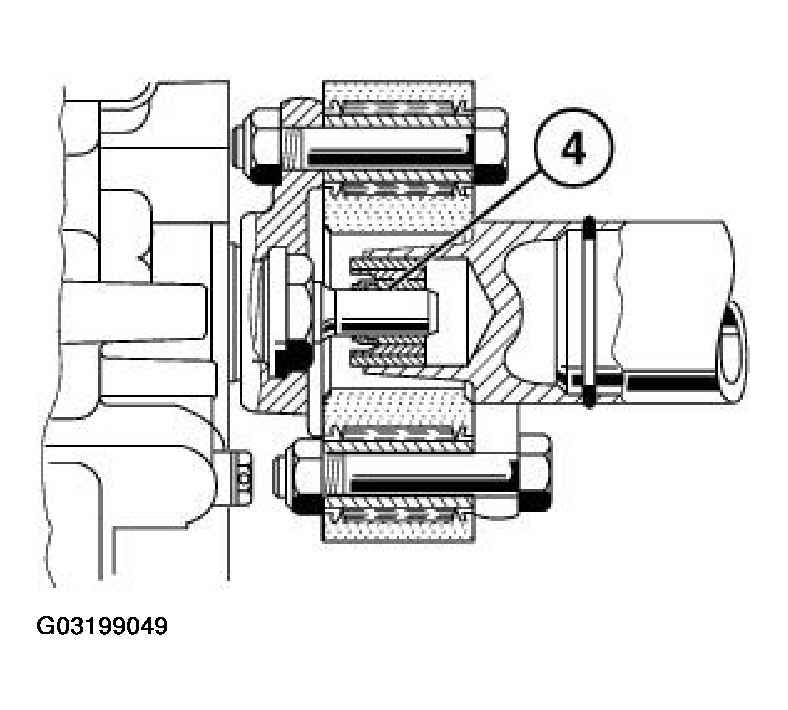

Fig 1: Checking Centering Mount

Courtesy of BMW OF NORTH AMERICA, INC.
