26 12 001 Replacing Complete Propeller Shaft Centre Mount - Version Without Slide: Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Remove propeller shaft, refer to 26 11 000 REMOVING AND INSTALLING PROPELLER SHAFT - VERSION WITH REAR CONSTANT-VELOCITY JOINT

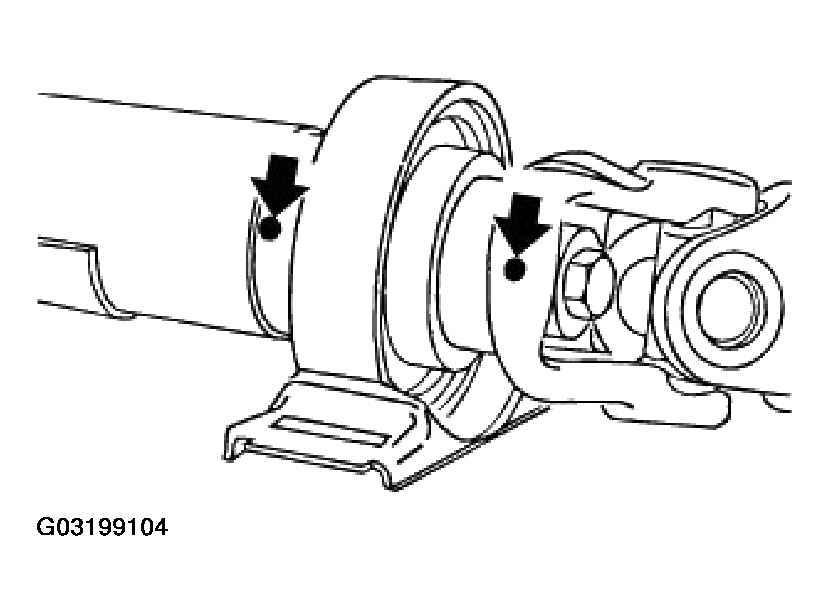

Mark installed position of front propeller-shaft section to rear propeller-shaft section.

CAUTION: Propeller shaft was balanced in assembled state so that propeller-shaft sections must not be turned when reinstalled.

Fig 1: Marking Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

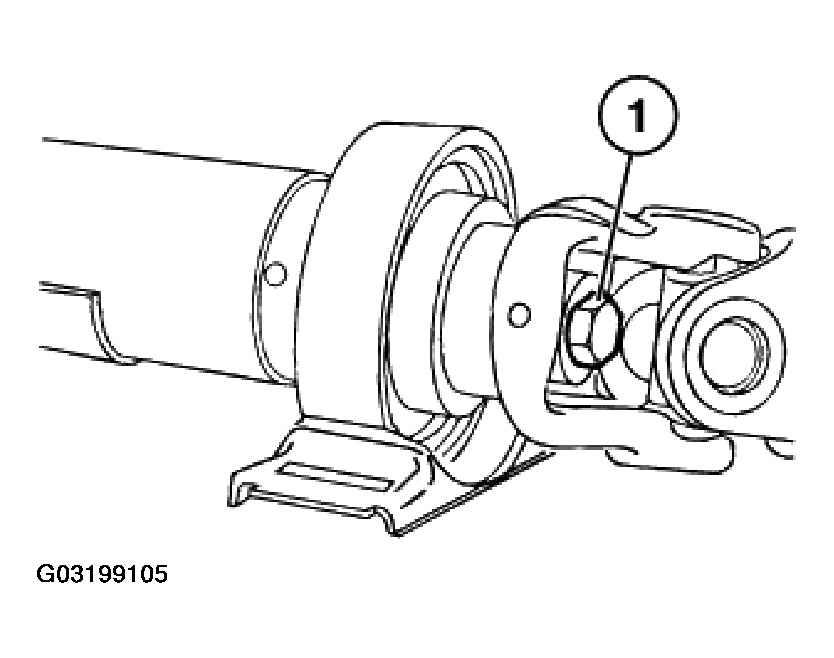

Unscrew bolt (1).

Fig 2: Pulling Off Front Section Of Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off front section of propeller shaft.
