Installation note:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Assemble propeller shaft in such a way that punch marks are located on opposite sides.

Secure screw (1) with screw retainer.

For tightening torque 26 11 5AZ, refer to 26 11 PROPELLER SHAFT, COMPLETE .

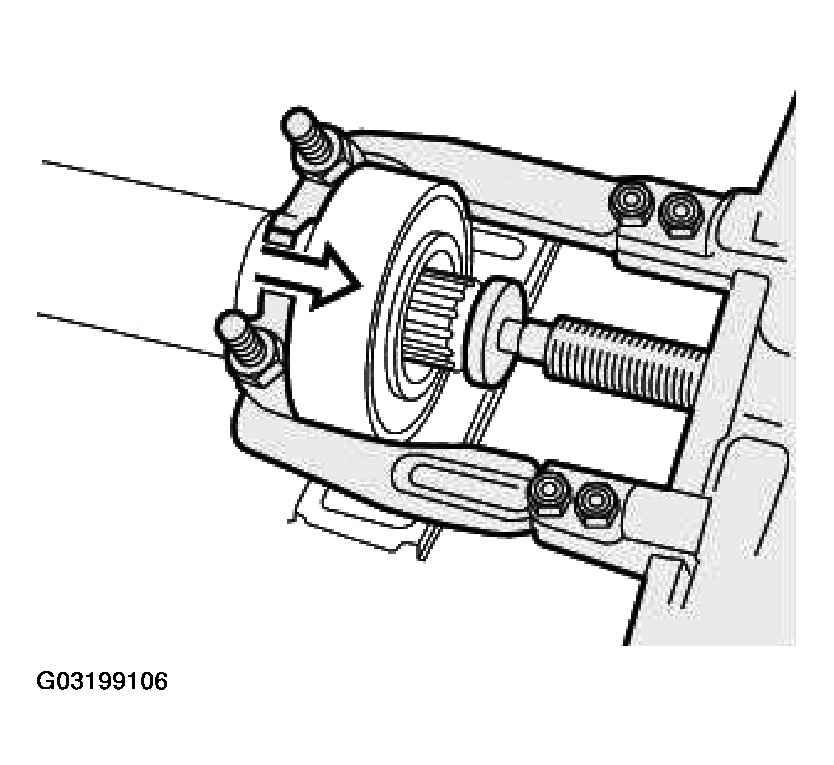

Pull off center mount complete with grooved ball bearing using a standard puller.

Fig 1: Pulling Off Centre Mount

Courtesy of BMW OF NORTH AMERICA, INC.

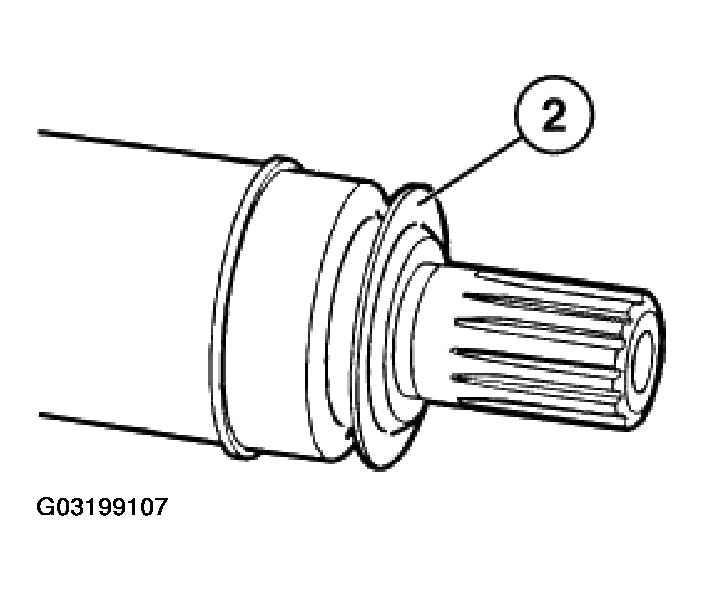

Pay attention to installed direction of dust cover (2).

Fig 1: View Of Dust Cover

Courtesy of BMW OF NORTH AMERICA, INC.

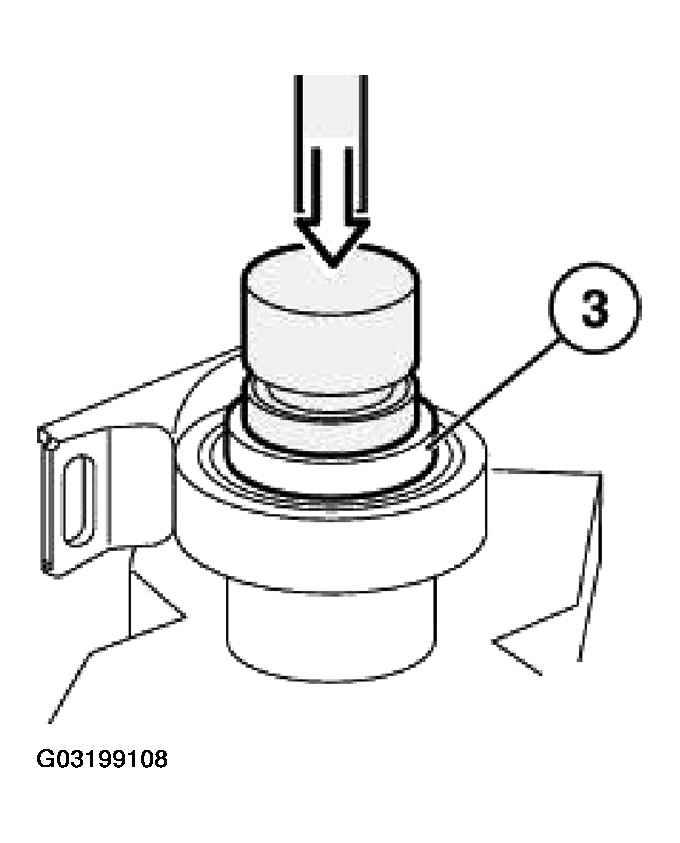

Press grooved ball bearing (3) into center mount.

Fig 2: Pressing Grooved Ball Bearing Into Centre Mount

Courtesy of BMW OF NORTH AMERICA, INC.

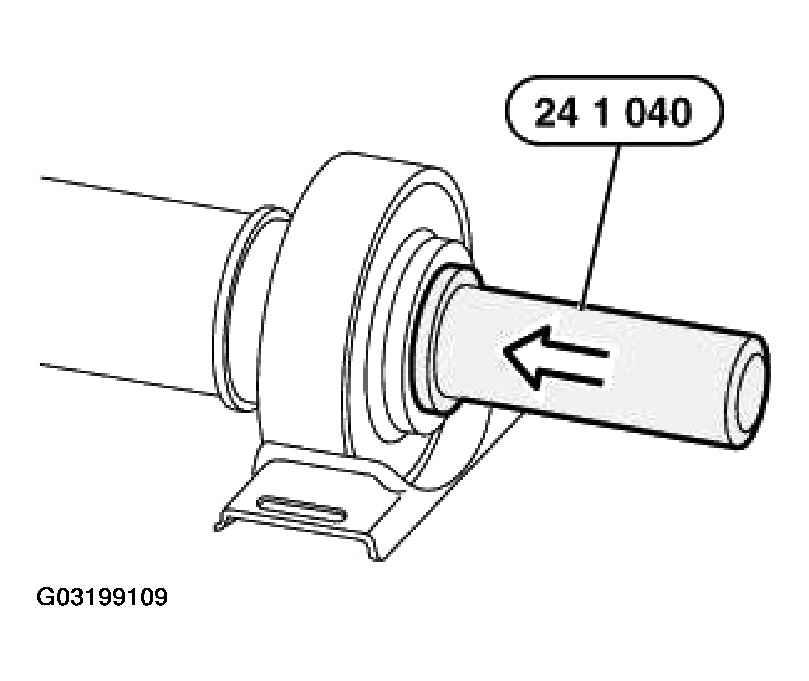

Drive on center mount with ball bearing using Special Tool 24 1 040.

Fig 3: Driving On Centre Mount

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Check center mount for ease of movement.
