23 23 507 Disassembling And Assembling All Synchronizing Mechanisms (S5D 260Z / 310Z / 320Z): Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

23 1 160
23 1 290
23 2 250
23 2 310
33 1 342

Remove drive and output shafts. Refer to 23 21 502 REMOVING AND INSTALLING COMPLETE DRIVE AND OUTPUT SHAFTS (S5D 260Z / 310Z / 320Z) .

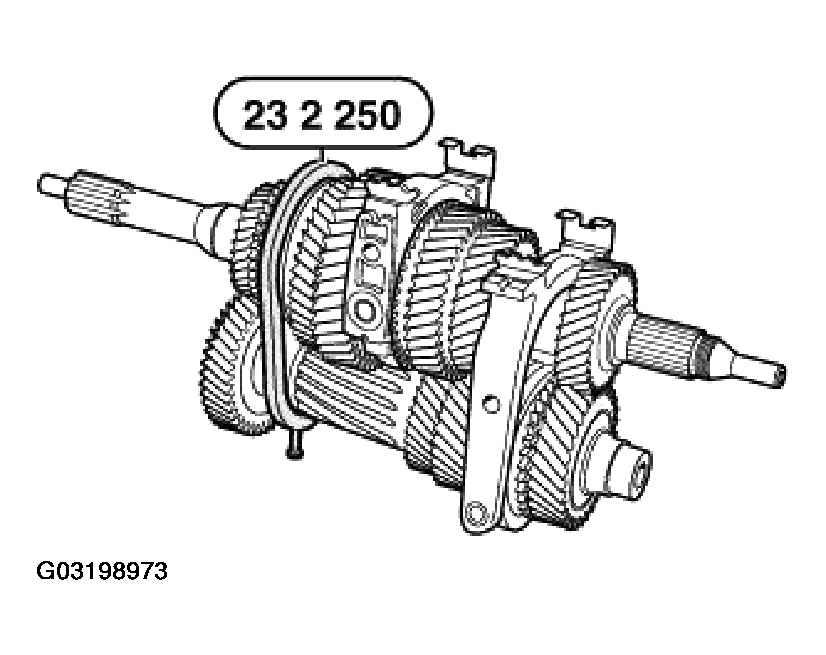

Detach 1st/2nd and 3rd/4th gear shift arms.

Fig 1: Removing Gear Shift Arms

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 23 2 250.

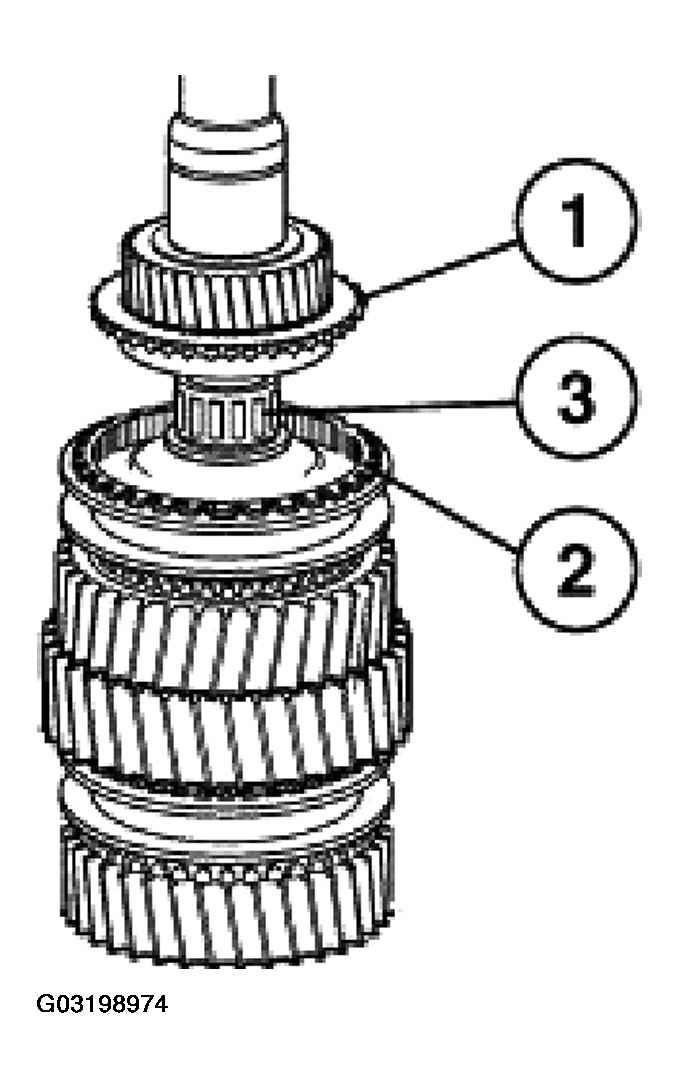

Detach drive shaft (1), synchronizer ring (2) and roller bearing (3).

Fig 2: Removing Drive Shaft, Synchronizer Ring And Roller Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Grip gear train at output shaft (use protective vise jaws).

Detach 5th/reverse gear sliding sleeve.

CAUTION: Loose thrust pieces, balls and springs.

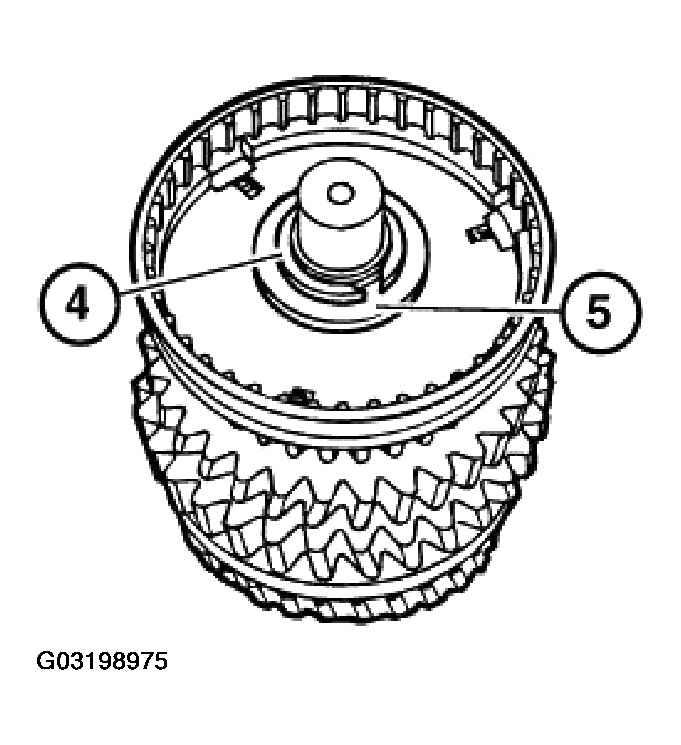

Remove retaining ring (4) and spacer (5).

Fig 3: Removing Retaining Ring And Spacer

Courtesy of BMW OF NORTH AMERICA, INC.
