00 11 229 Oil Change In Manual Transmission

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Gearbox must be at normal operating temperature.

Gear oil: refer to RECOMMENDED FLUID .

Filling capacities: refer to FLUID CAPACITIES .

Draining gear oil:

Release oil drain plug (1) and filler plug (2).
Clean oil drain plug (1) and screw in.

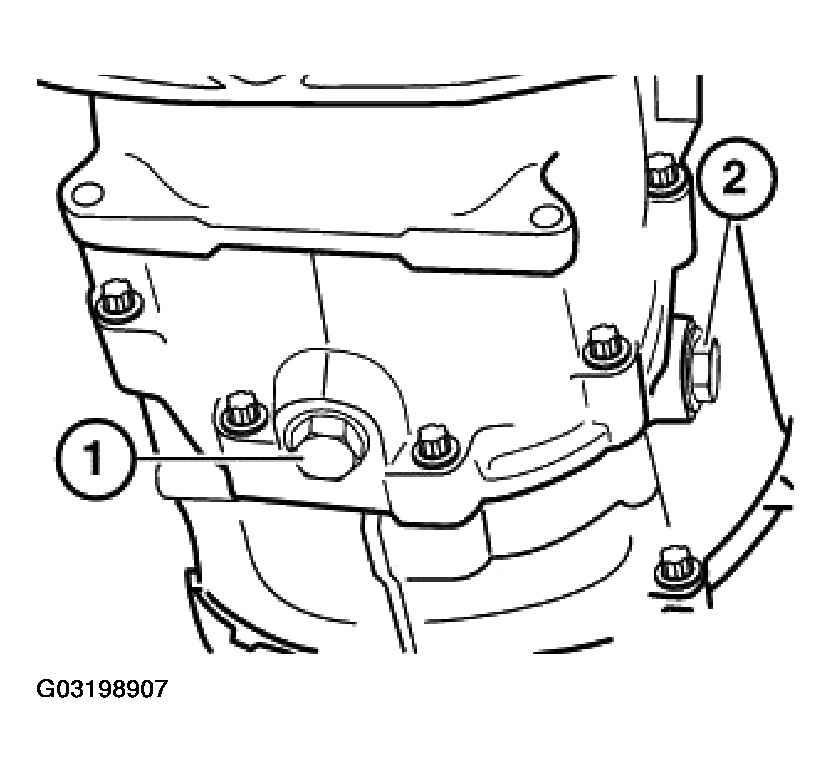

Fig 1: Locating Oil Drain Plug And Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, refer to TORQUE SPECIFICATIONS .

Fill transmission with gear oil.

Pour in gear oil until overflowing.
Screw in filler plug (2).

Tightening torque, refer to TORQUE SPECIFICATIONS .
