21 00 010 Checking Clutch Drive Plate For Wear: Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Wear inspection is no longer necessary on the following vehicles:

E38 M62 from 9.96
E39 M62

Remove clutch slave cylinder (pressure line remains connected). Refer to 21 52 510 REMOVING AND INSTALLING/REPLACING CLUTCH SLAVE CYLINDER .

NOTE: Relieve clutch slave cylinder slowly, as otherwise the clutch slave cylinder may suck in air via the sealing sleeve.

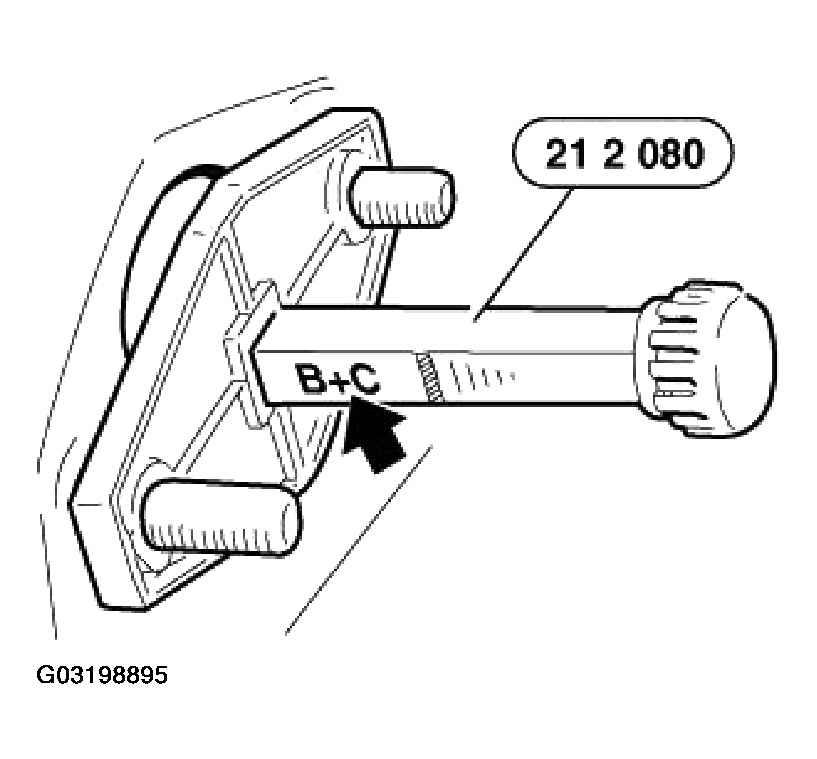

Apply special tool 21 2 080 so that scale assigned to the transmission type can be read from underneath.

Fig 1: Applying Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Determine transmission type.
