17 11 031 Replacing Fan Cowl (Z3/S54): Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Remove fan impeller with fan clutch from water pump.

Lever out expansion rivets and pull out air duct on left and right.

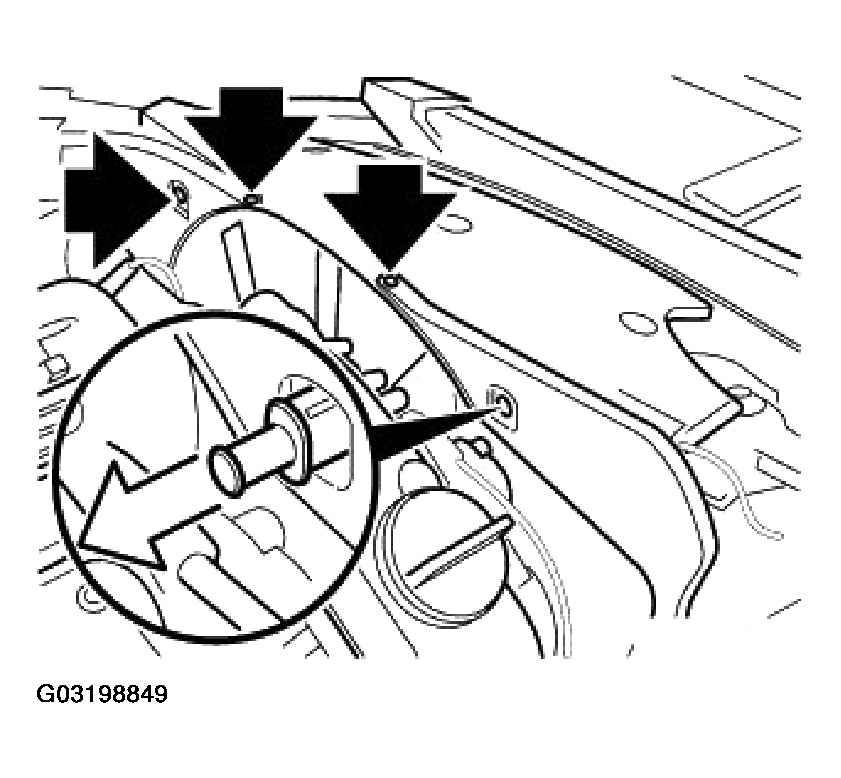

Fig 1: Removing Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.
