17 11 031 Replacing Fan Cowl (Z3/S54): Installation:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

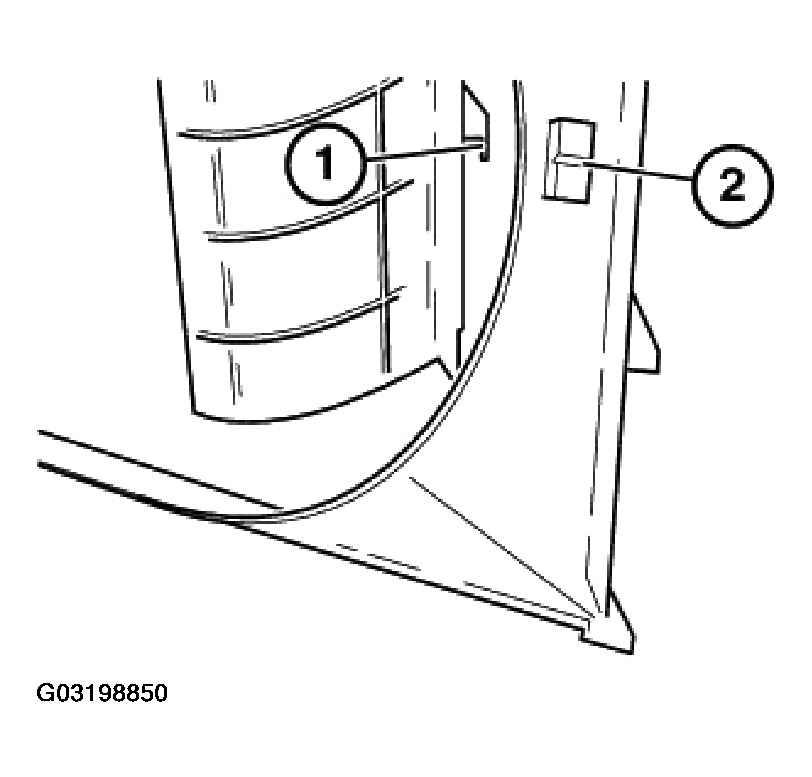

Join lug (1) on left and right air duct in corresponding slot (2) in fan cowl.

Fig 1: Joining Lug

Courtesy of BMW OF NORTH AMERICA, INC.

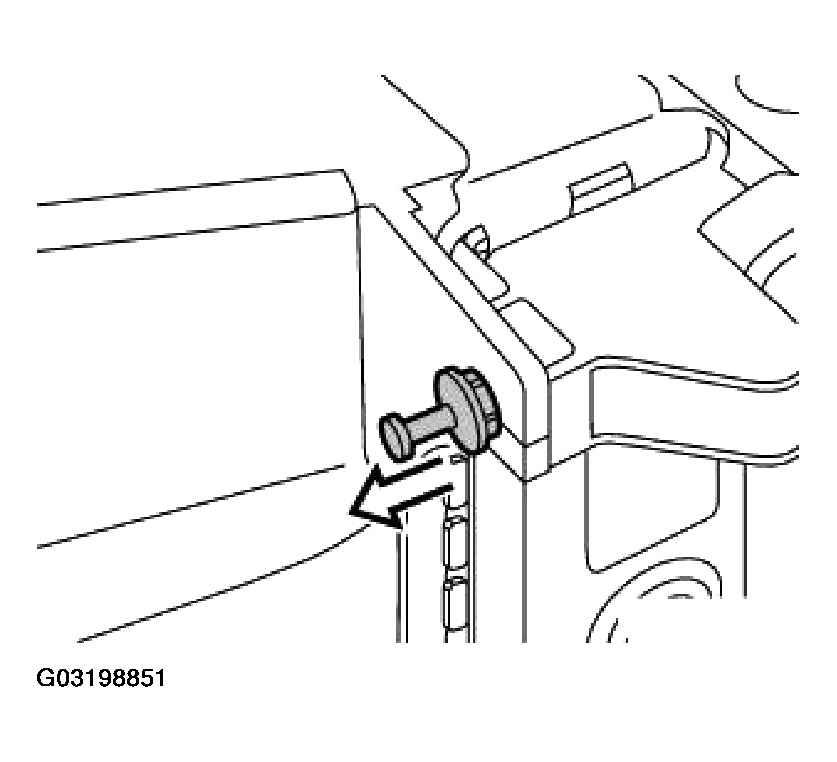

Lever out expansion rivets on left and right from fan cowl.

Fig 2: Removing Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

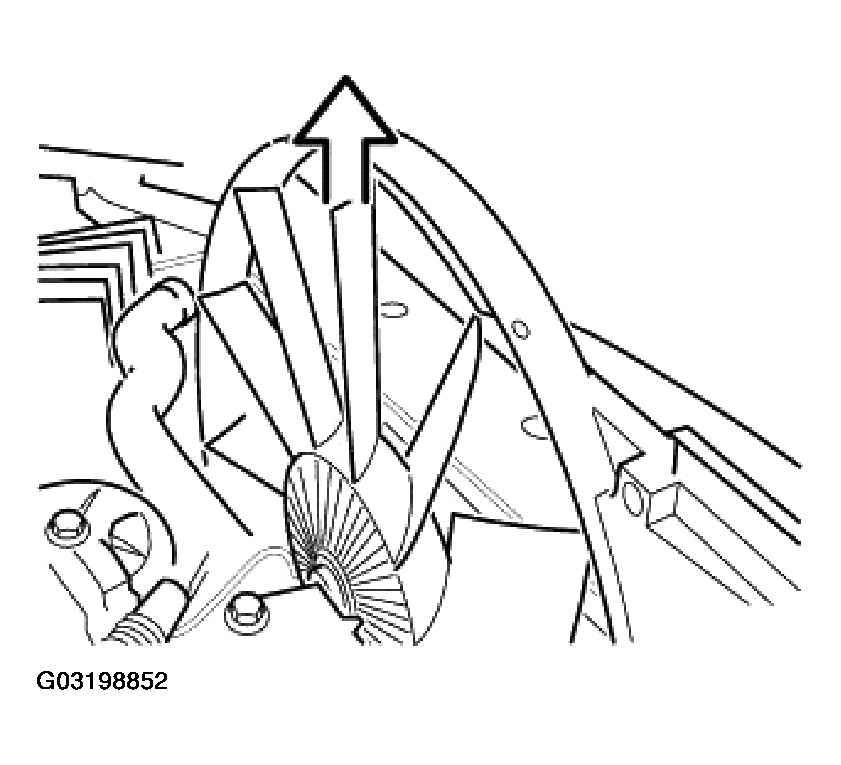

Lift out fan cowl and fan impeller together.

Fig 3: Removing Fan Cowl And Fan Impeller

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

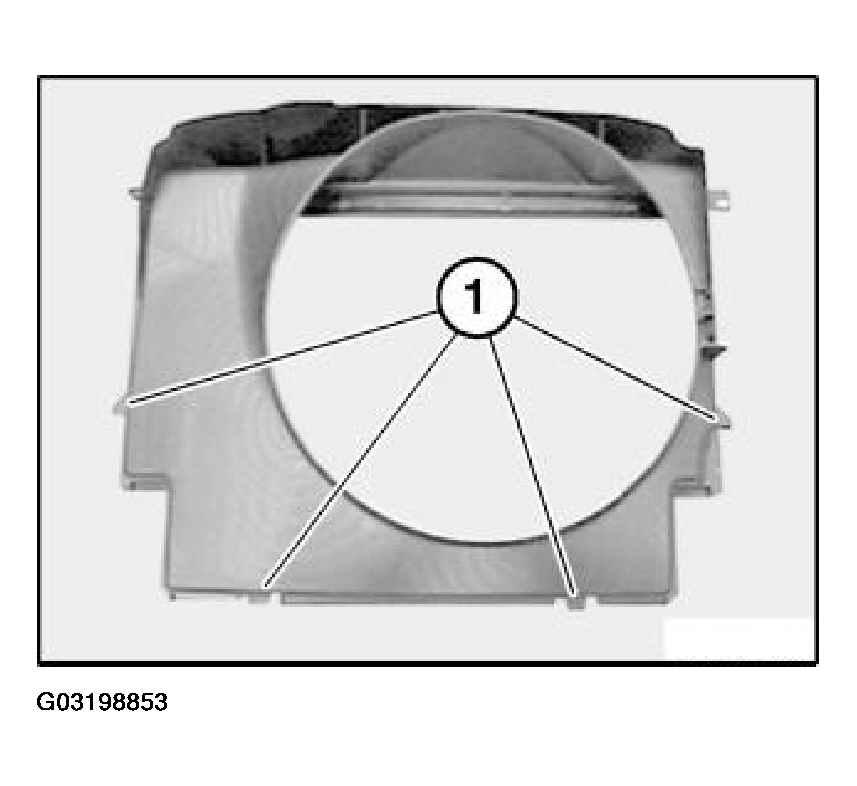

Attach bracket (1) of fan cowl in retaining lugs at bottom and sides.

Fig 4: Attaching Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
