Checking Pressure Drop In Cooling System:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Remove cap on expansion tank. Attach special tool 17 0 002 / 17 0 005.

Build up gauge pressure of 1.5 bar, wait approx. 2 minutes.

Cooling system is impervious to leaks if pressure drop is max. 0.1 bar.

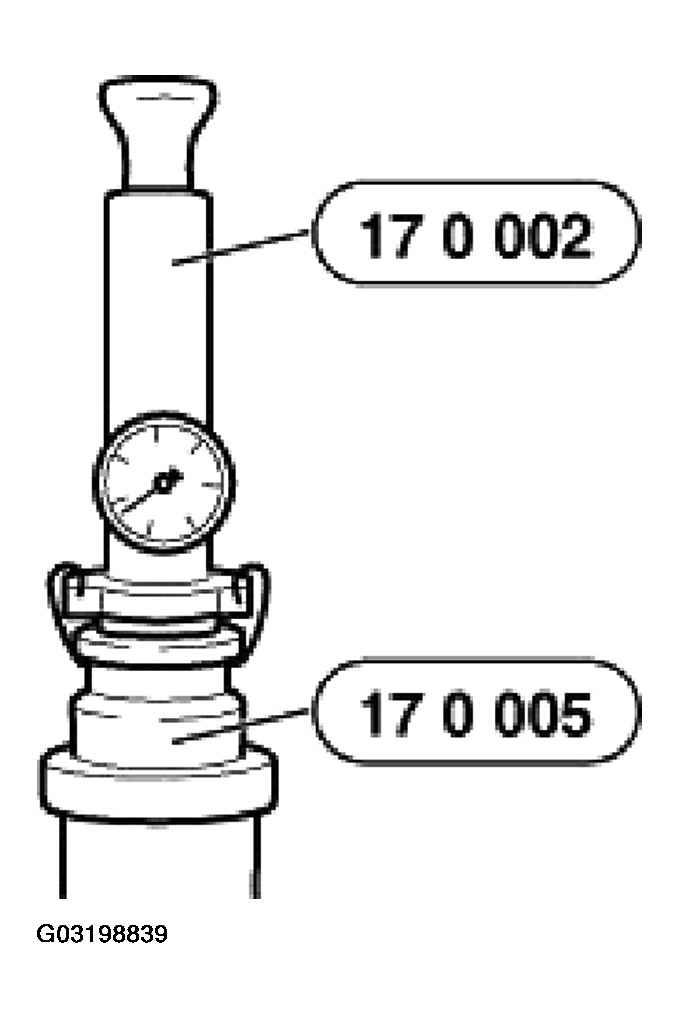

Fig 1: Checking Pressure Drop In Cooling System
G03198839Courtesy of BMW OF NORTH AMERICA, INC.
