Version 2

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete front bumper, refer to 51 11 001 REPLACING FRONT BUMPER (M ROADSTER, M COUPE) .

Disconnect connector.

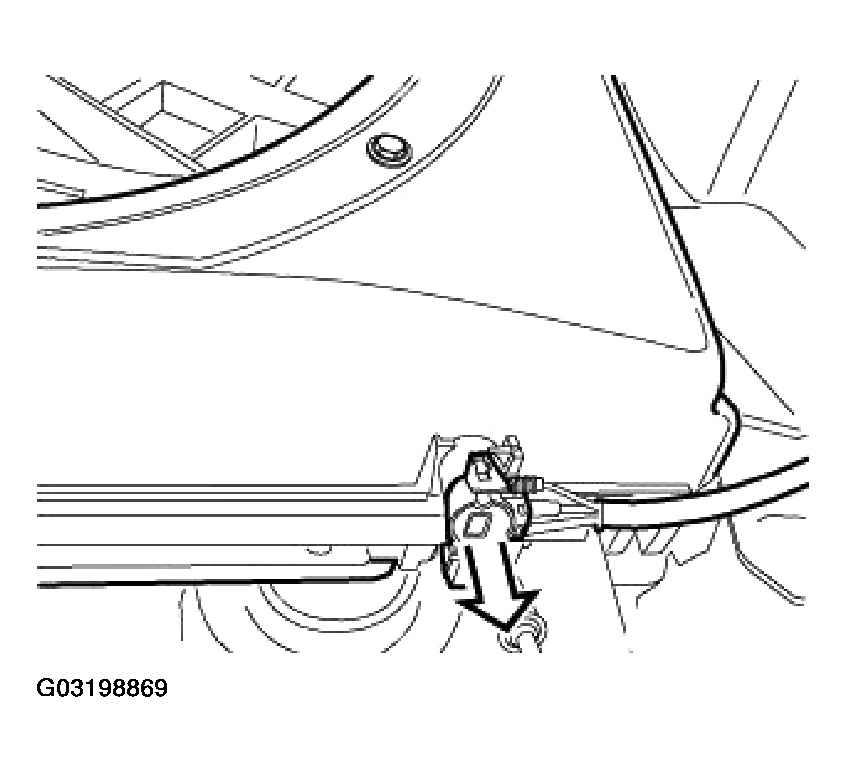

Fig 1: Disconnecting Connector
G03198869Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws from fan carrier.

Remove fan carrier from underside.

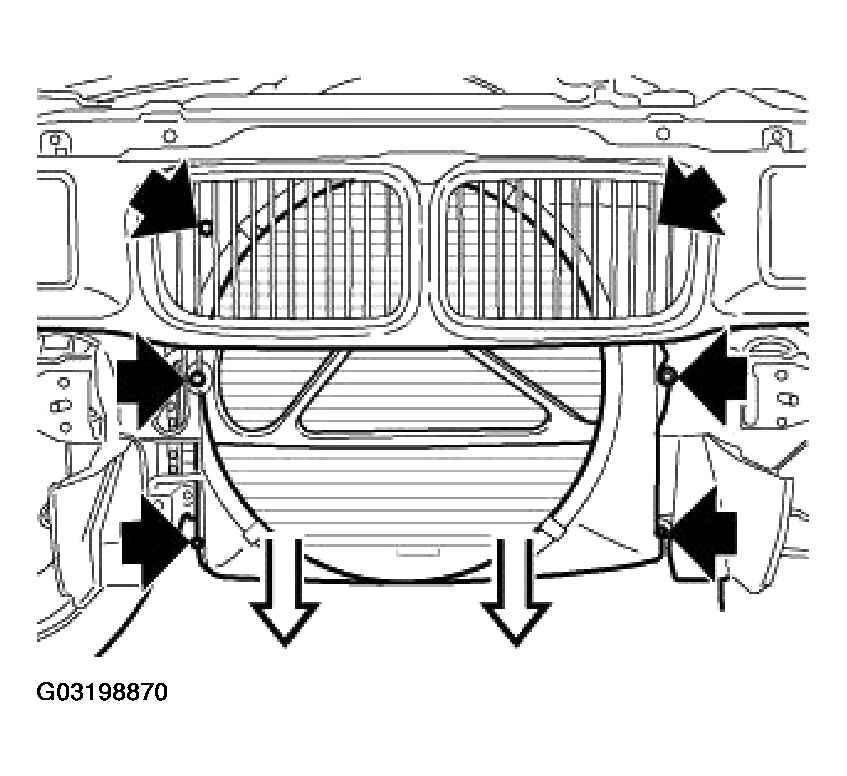

Fig 2: Removing Fan Carrier
G03198870Courtesy of BMW OF NORTH AMERICA, INC.
