17 40 000 Removing And Installing/Replacing Complete Auxiliary Fan: Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Remove cover from top of radiator.

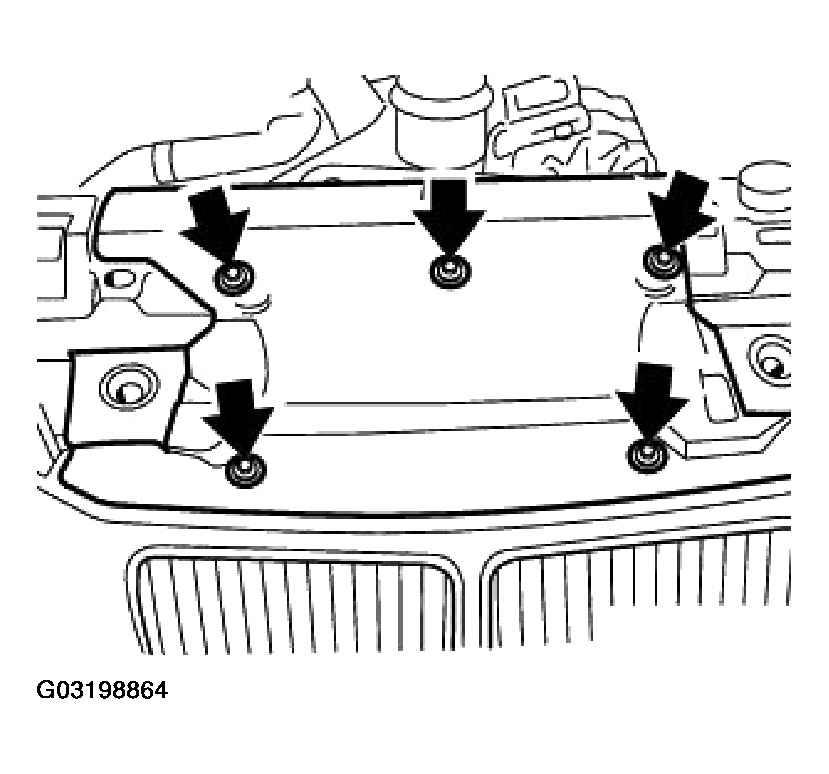

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove underbody protection from front.

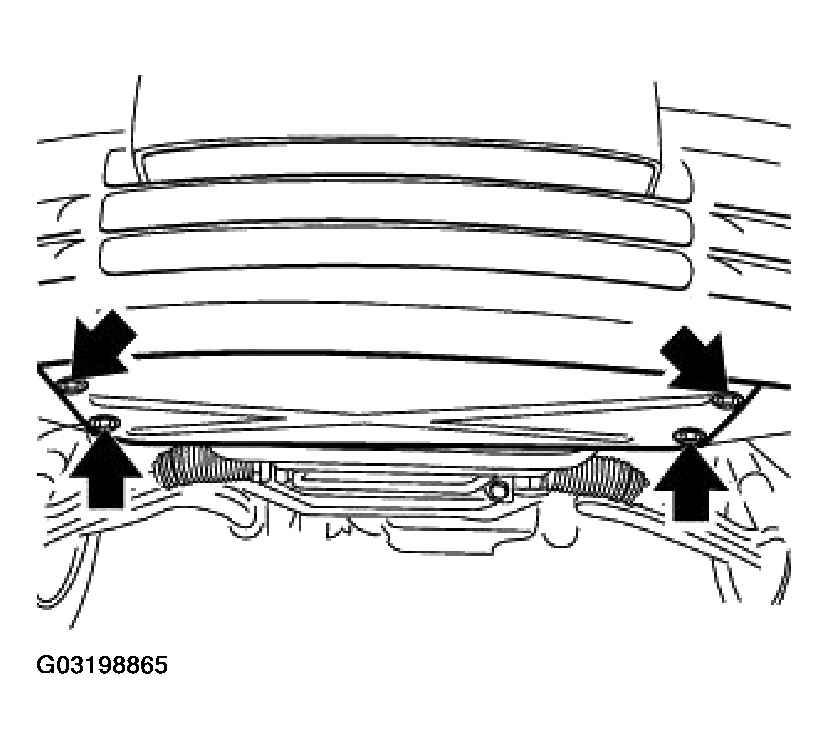

Fig 2: Removing Underbody Protection From Front

Courtesy of BMW OF NORTH AMERICA, INC.
