13 54 010 Adjusting basic throttle setting (S54)

Interrogate fault memory of DME control unit.

Switch off ignition.

Remove intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD .

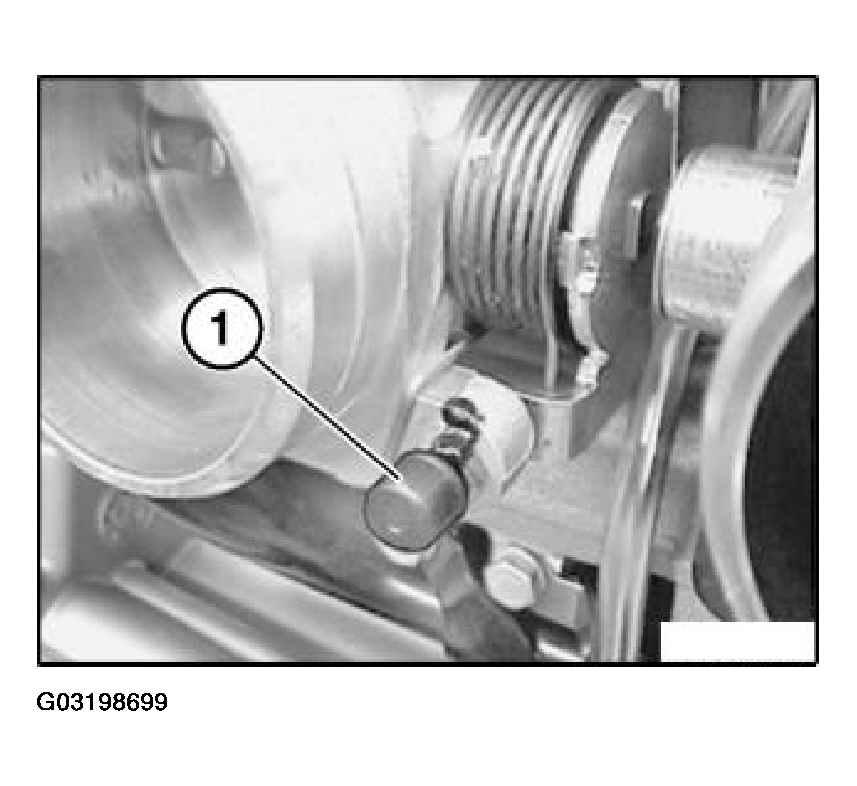

Plastic caps (1) on stop screws must not be removed!

Fig 1: Locating Plastic Caps On Stop Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Checking basic throttle setting:

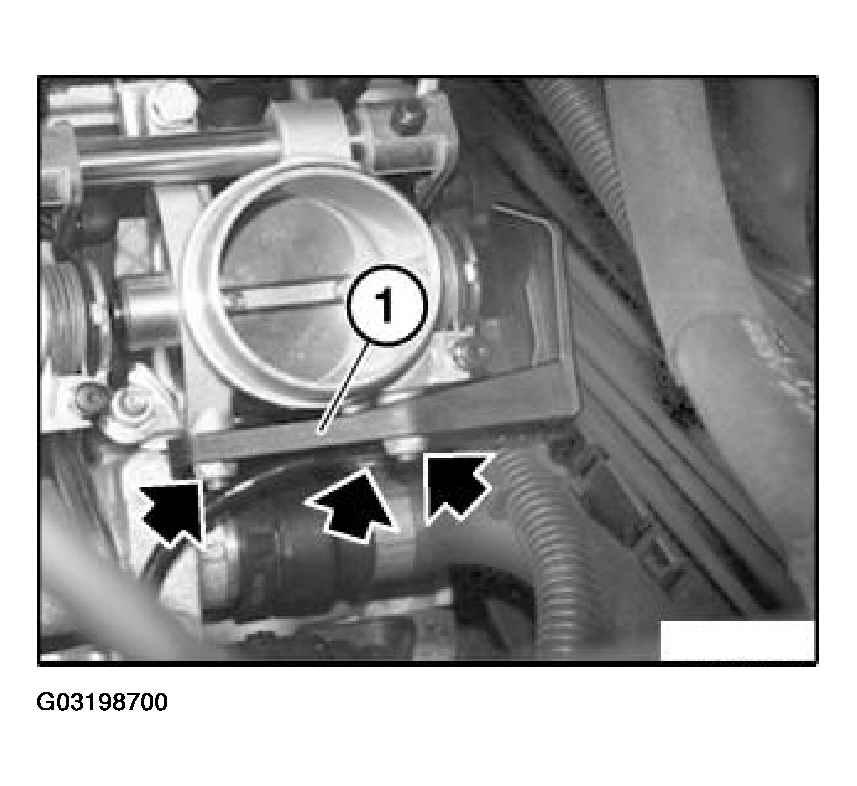

To ensure that the basic throttle setting at the 6th throttle assembly can be properly checked, you must remove protective cap (1).

Fig 2: Removing Protective Cap Of Throttle

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts.

Remove protective cap (1) of throttle.

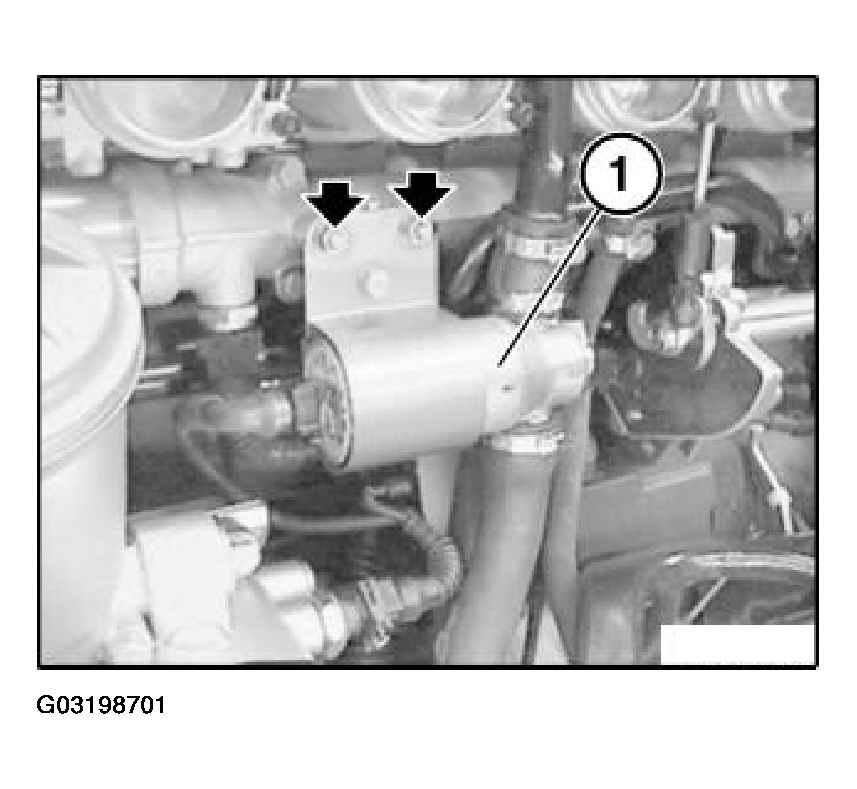

Remove idle-speed control valve (1) to facilitate access to throttle assembly 2.

Release nuts, remove idle-speed control valve (1) together with holder from assembly and place to one side.

Fig 3: Removing Idle-Speed Control Valve

Courtesy of BMW OF NORTH AMERICA, INC.

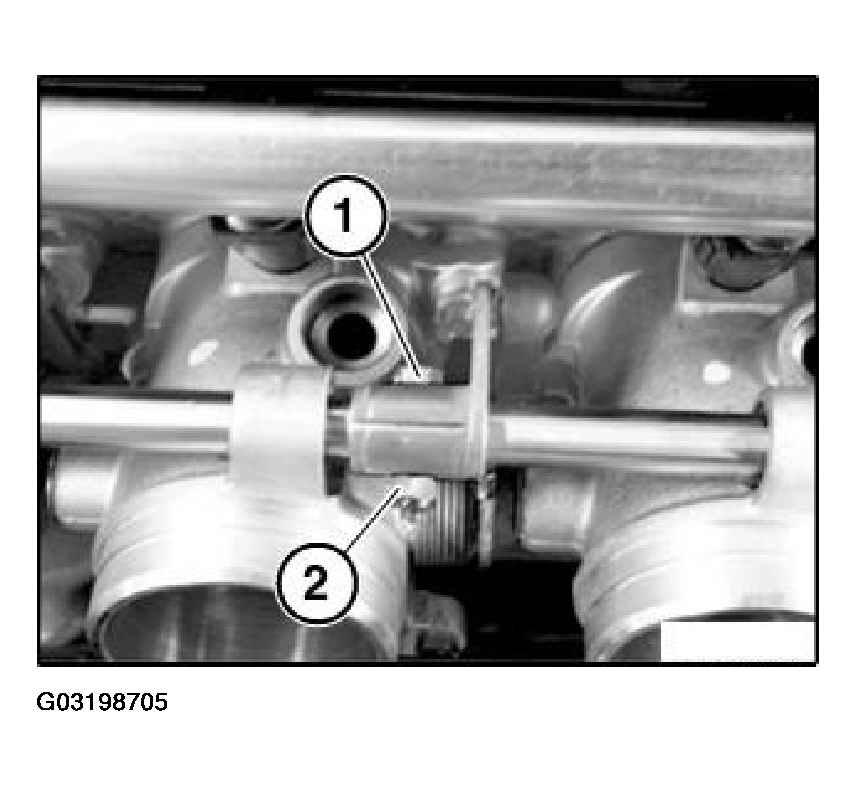

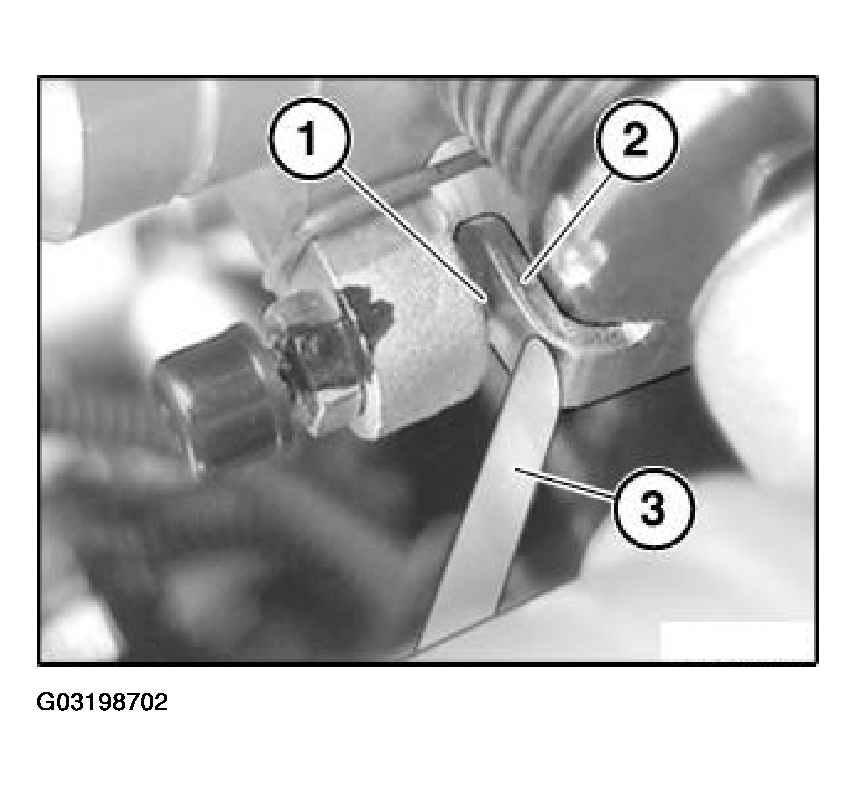

Gap between stop screw (1) and actuating lever (2) must be less than 0.05 mm.

To check gap, use a feeler gauge with a thickness of 0.05 mm. Checking gap:

• Pull rod of throttle actuator in opening direction of throttles.
• Slide feeler gauge (3) between stop screw (1) and actuating lever (2).
• Return throttles slowly to stops.
  Fig 4: Checking Gap

  Courtesy of BMW OF NORTH AMERICA, INC.

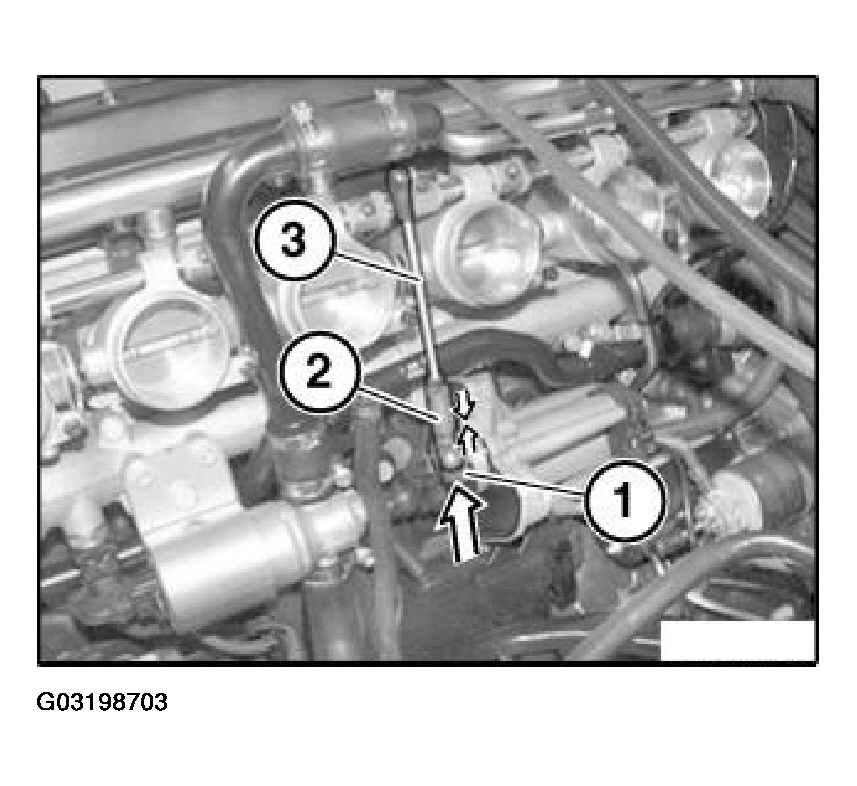

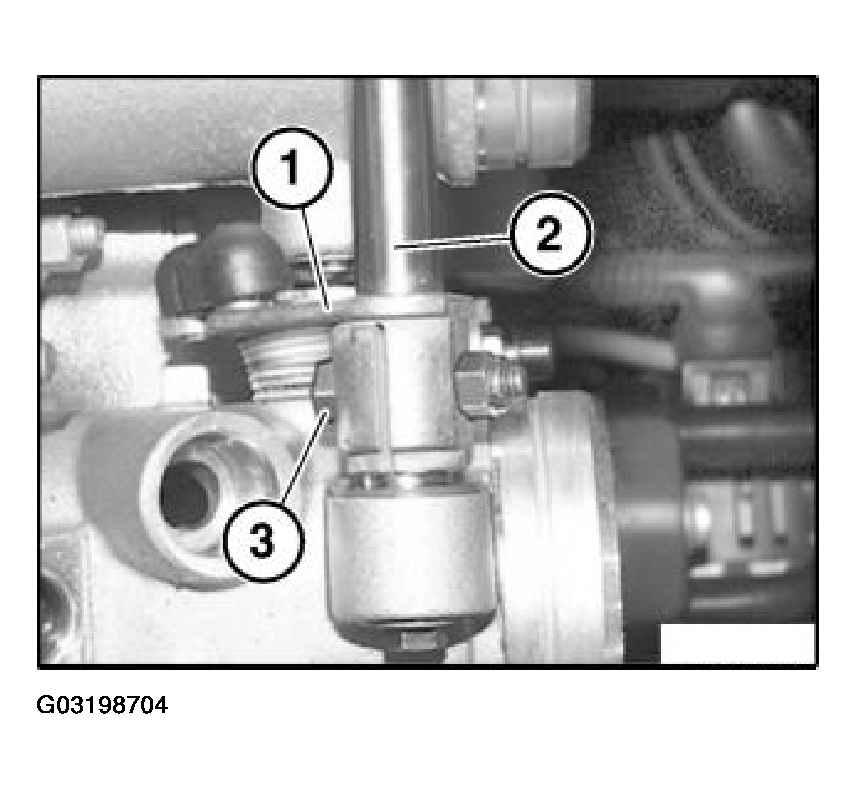

Press lever (1) on throttle actuator in closing direction of throttles. In so doing, compress overload spring (2) in pull rod (3).

Fig 5: Pressing Lever On Throttle Actuator In Closing Direction Of Throttles

Courtesy of BMW OF NORTH AMERICA, INC.

Release lever (1) again.

When correctly adjusted, feeler gauge will jam between stop screw (1) and actuating lever (2) and will not fall out.

Perform check on each throttle assembly.

Adjusting basic throttle setting:

A readjustment must be made if the gap is larger than 0.05 mm at one or more throttle assemblies.

Remove auxiliary air line.

It is not necessary to adjust the throttle at throttle assembly 1 because the actuating lever (1) on throttle assembly 1 is connected via set screw (3) to the actuating shaft (2).

Fig 6: View Of Throttle Assembly 1

Courtesy of BMW OF NORTH AMERICA, INC.

Also do not slacken screw connection of actuating lever of long pull rod with actuating shaft.

To release screw connection of actuating lever with actuating shaft, only turn nut (2) and grip screw (1).

Fig 7: Releasing Screw Connection Of Actuating Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screw connections of actuating levers with actuating shaft on throttle assemblies 2, 3, 4, 5 and 6.

Adjusting throttle assembly 2:

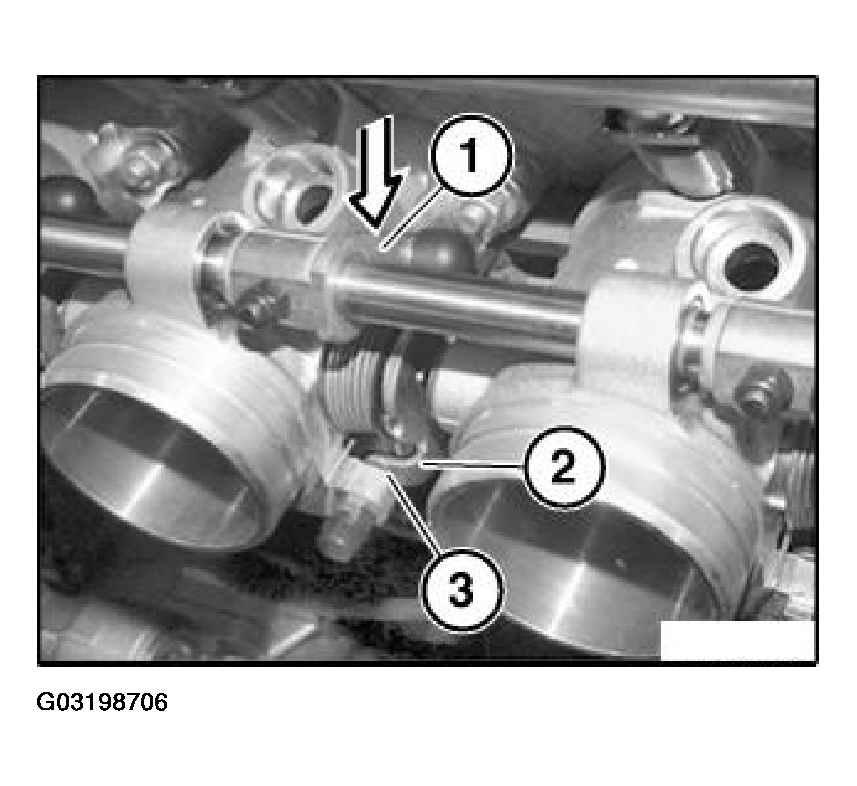

Move actuating lever (1) of second throttle assembly downwards until actuating lever (2) rests without play against stop screw (3).

Fig 8: Adjusting Throttle Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw connections of actuating levers with actuating shaft again. Observe the following instructions in so doing:

• Use screws and nuts only once.
• Only turn nut (2) and grip screw (1).
• To screw down, use two open-end wrenches which are to be placed at right angles to actuating shaft if at all possible. In this way, no torque is exerted on the actuating lever; such torque would impair the quality of adjustment.
• Retighten nut to tightening torque of 7 N.m.
  Fig 9: Tightening Down Screw Connections

  Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, carry out adjustment with a second person.

Adjusting throttle assemblies 3, 4, 5 and 6:

To adjust throttle assemblies 3, 4, 5 and 6, follow the same procedure as for adjusting throttle assembly 2. Carry out adjustment of throttle assemblies 3, 4, 5 and 6 in sequence.

Carry out checking of basic throttle setting.

If necessary, carry out adjustment of basic throttle setting again.

Adjusting full-load stop:

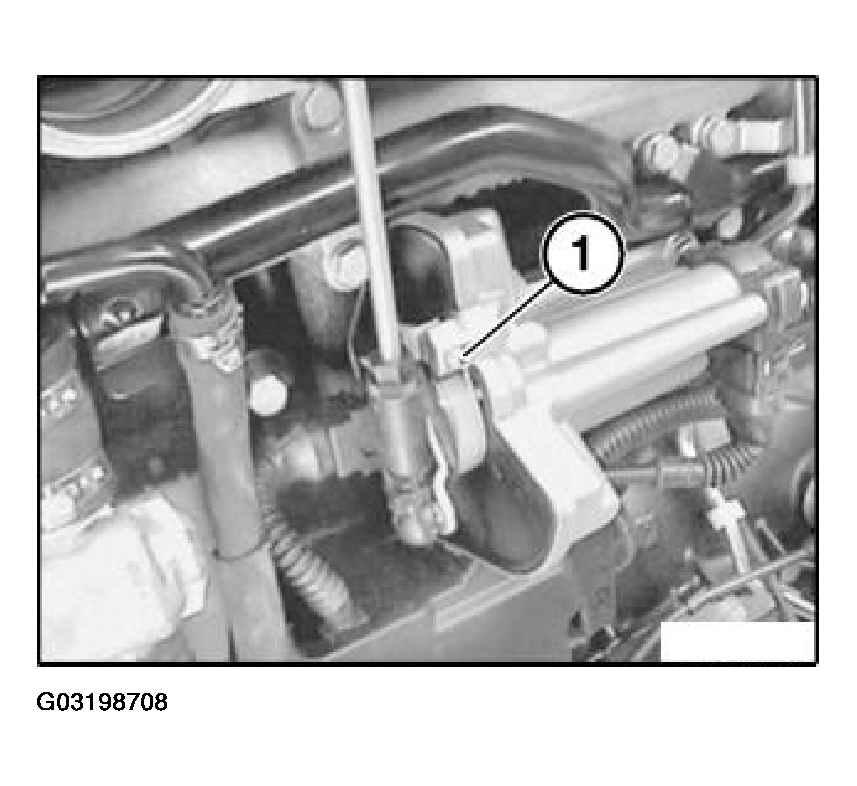

Activate servomotor via DIS Tester or MoDiC until throttles are fully open and stop screw (1) rests on detent lug.

Follow instructions featured in DIS Tester or MoDiC.

Fig 10: Adjusting Full-Load Stop

Courtesy of BMW OF NORTH AMERICA, INC.

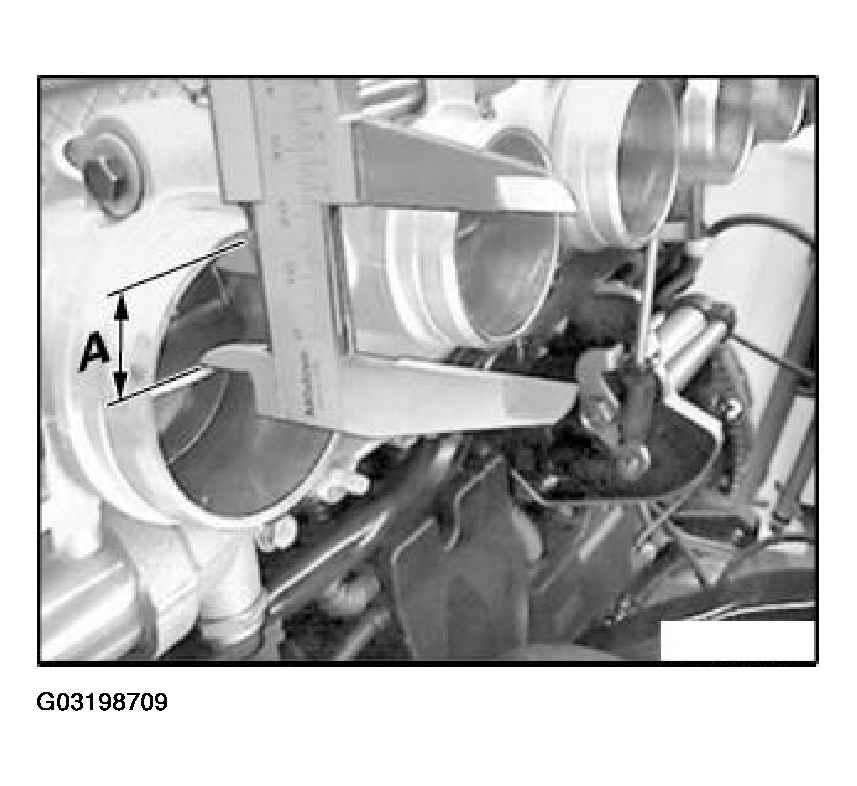

Carry out measurement at throttle of first throttle assembly (cylinder 1).

Adjust measurement (A) = 24.66 mm +/- 0.2 mm by turning stop screw.

Activate servomotor several times and check whether measurement (A) is in tolerance range.

Fig 11: Measuring Full-Load Stop

Courtesy of BMW OF NORTH AMERICA, INC.

• Service functions
• DME system checks
• Function test

Check stored fault messages.

Rectify faults.

Then clear fault memory.

Assemble engine.
