13 62 531 Replacing coolant temperature sensor (S54)

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Interrogate fault memory of DME control unit. Switch off ignition.

Remove intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD .

Unlock plug (1) and detach from idle-speed control valve.

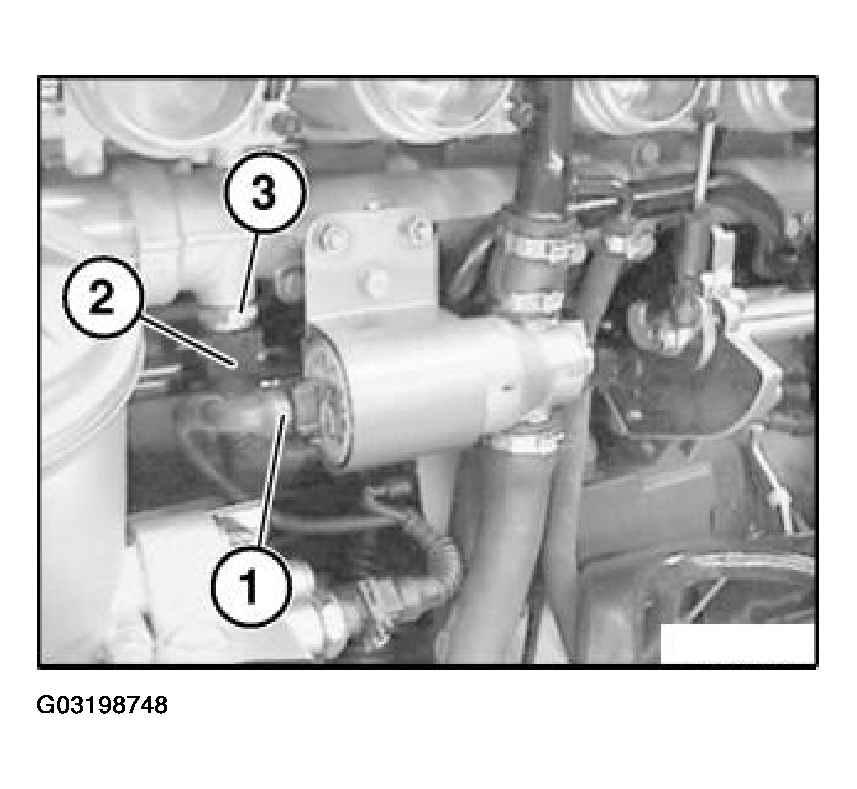

Fig 1: Detaching Plug From Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (2) and detach from temperature sensor (3).

Unscrew temperature sensor (3).

Tightening torque, 13 Nm.

Installation:

Check coolant level, top up coolant if necessary.

NOTE: Interrogate fault memory of DME control unit.

Check stored fault messages.

Rectify faults.

Then clear fault memory.
