12 13 511 Replacing ignition coil (S54)

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

Remove heater bulkhead.

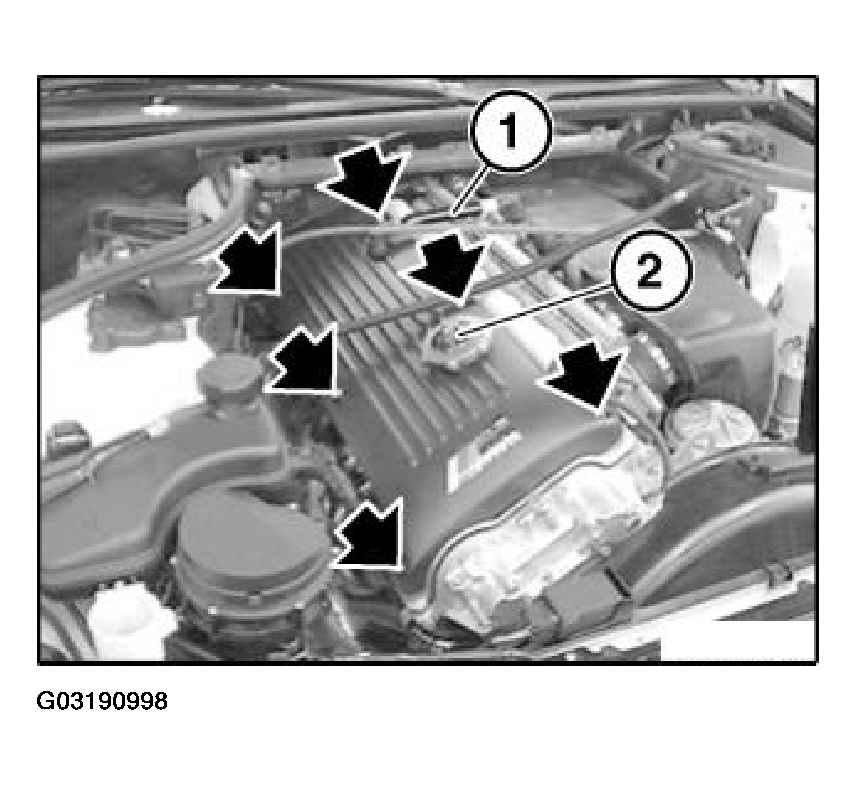

Remove engine vent (1).

Fig 1: Removing Engine Vent And Oil Filler Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Unscrew oil filler cap (2).

Remove cover.

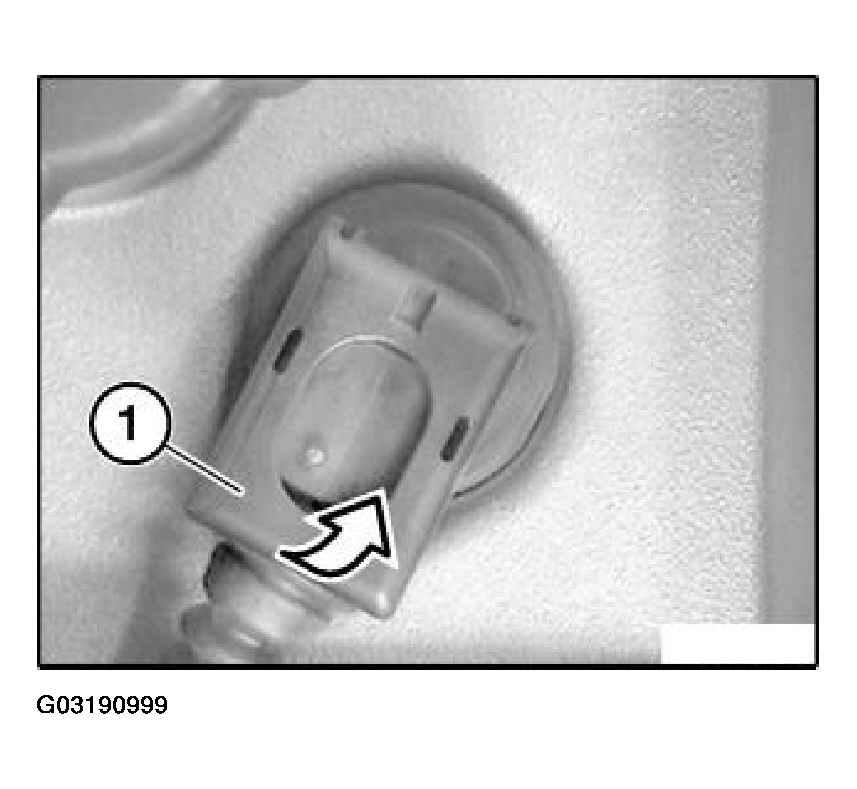

Unlock plug lock (1) for ignition coil.

Fig 2: Unlocking Plug Lock For Ignition Coil

Courtesy of BMW OF NORTH AMERICA, INC.

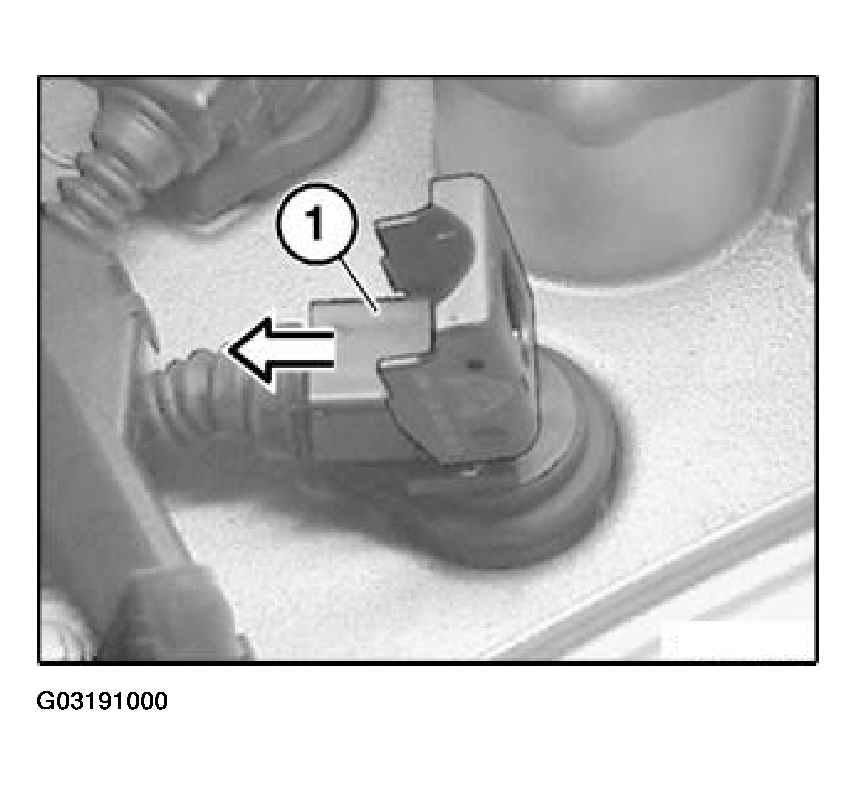

Detach plug (1) from ignition coil.

Fig 3: Detaching Plug From Ignition Coil

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw ignition coil.

This removal procedure is applicable to all ignition coils.

Installation :

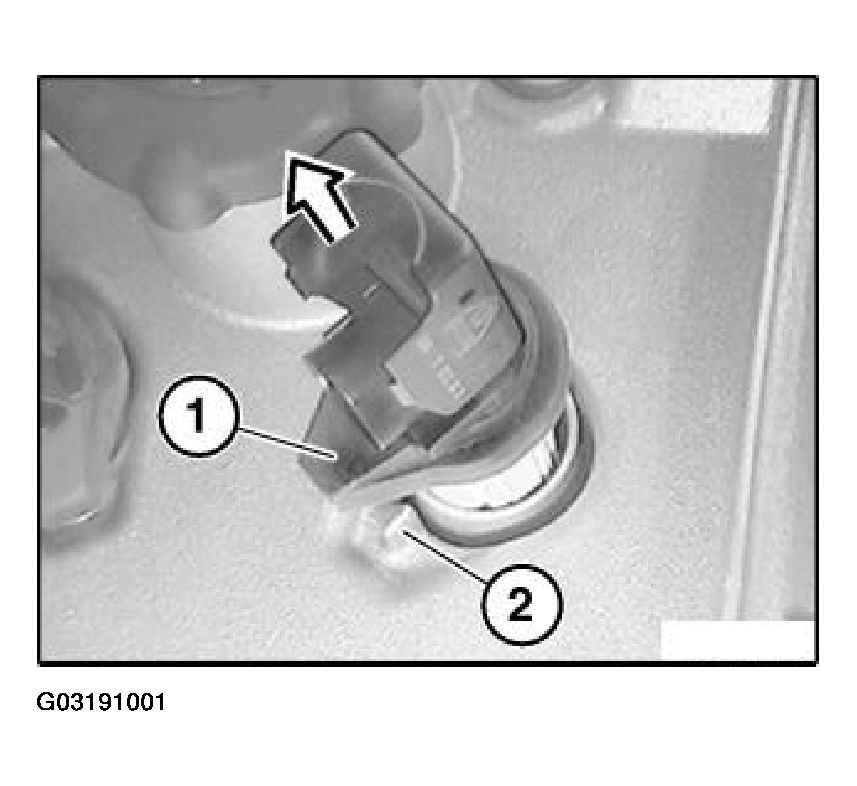

The lug on the cylinder head (2) must be inserted in the opening on the underside (1) of the rubber seal.

Fig 4: Withdrawing Ignition Coil

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit.
Check stored fault messages.
Rectify faults.

Then clear fault memory.
