12 14 550 Replacing control unit (M54 / S54)

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Follow instructions for removing and installing electronic control units. Refer to Removing And Installing Electronic Control Units .

Read fault memory.

Turn off ignition.

Before replacing the control unit, you must comply with the following instructions:

Code control unit. Refer to 12 14 700 Coding control module (DME / DDE) .
Program control unit. Refer to 12 14 705 Programming control unit (DME / DDE) .

Release screw connection of electronics box (1).

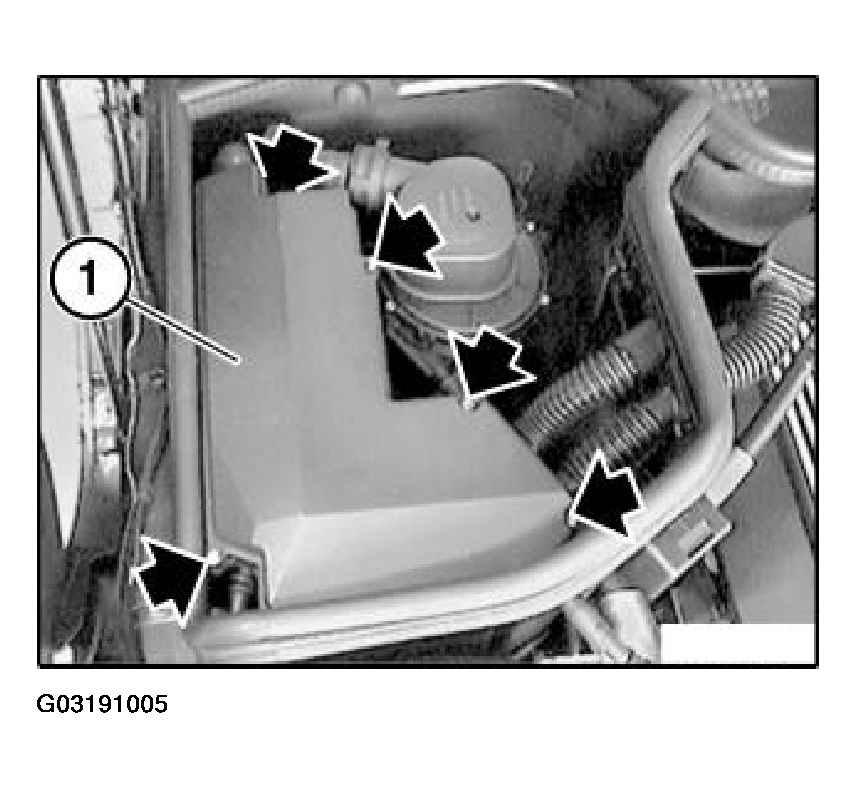

Fig 1: Removing Electronics Box

Courtesy of BMW OF NORTH AMERICA, INC.

Remove electronics box (1).

Installation :

Tightening torque, 12 14 4AZ. Refer to 12 14 ELECTRONIC SHIFT UNITS OR CONTROL UNITS .

Unlock plug (1) and detach from DME control unit.

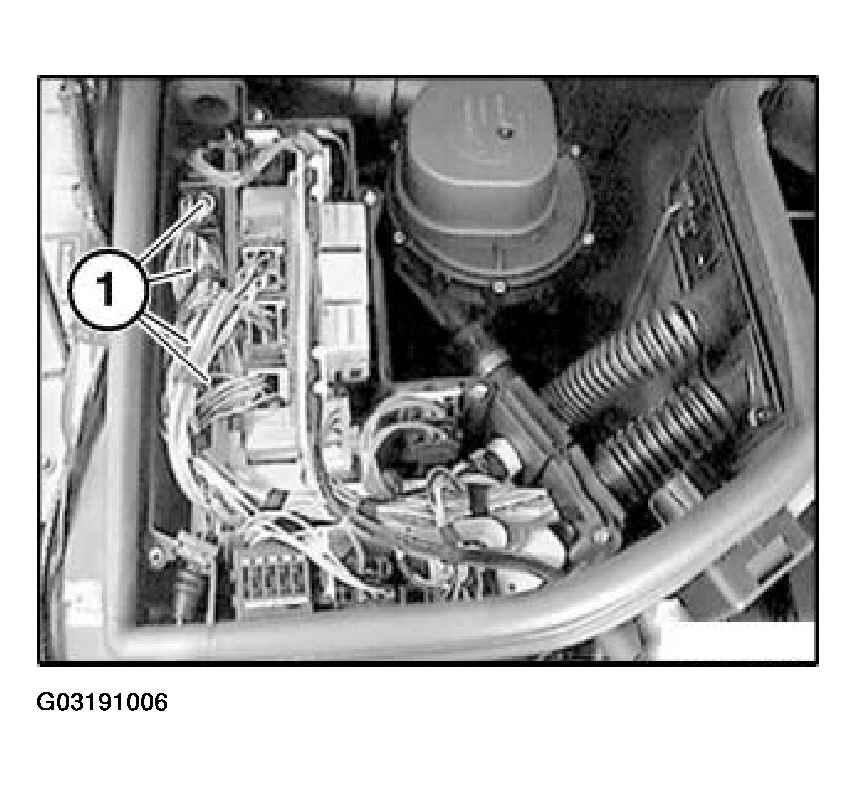

Fig 2: Detaching Plug From DME Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Remove DME control unit.

NOTE: Interrogate fault memory of DME control unit.
Check stored fault messages.
Rectify faults.

Then clear fault memory.
