12 31 695 Replacing diode plate (Motorola alternator): Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Alternator removed

Unscrew capacitor and cover.

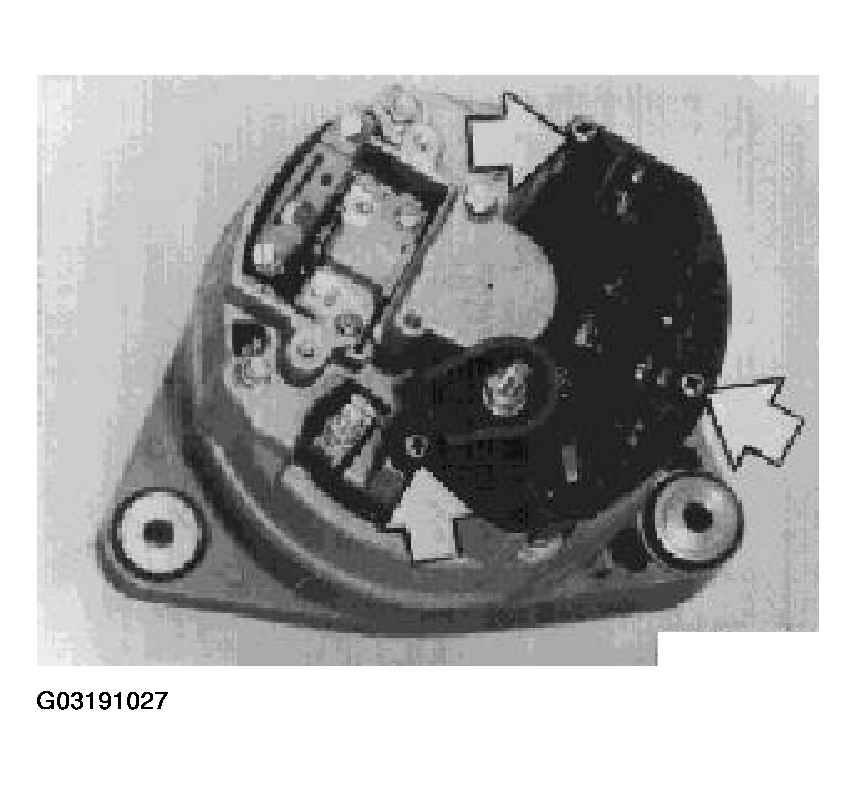

Fig 1: Unscrewing Capacitor And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unsolder stator winding on diode plate.

CAUTION: Excessive heat from soldering iron would destroy diodes.

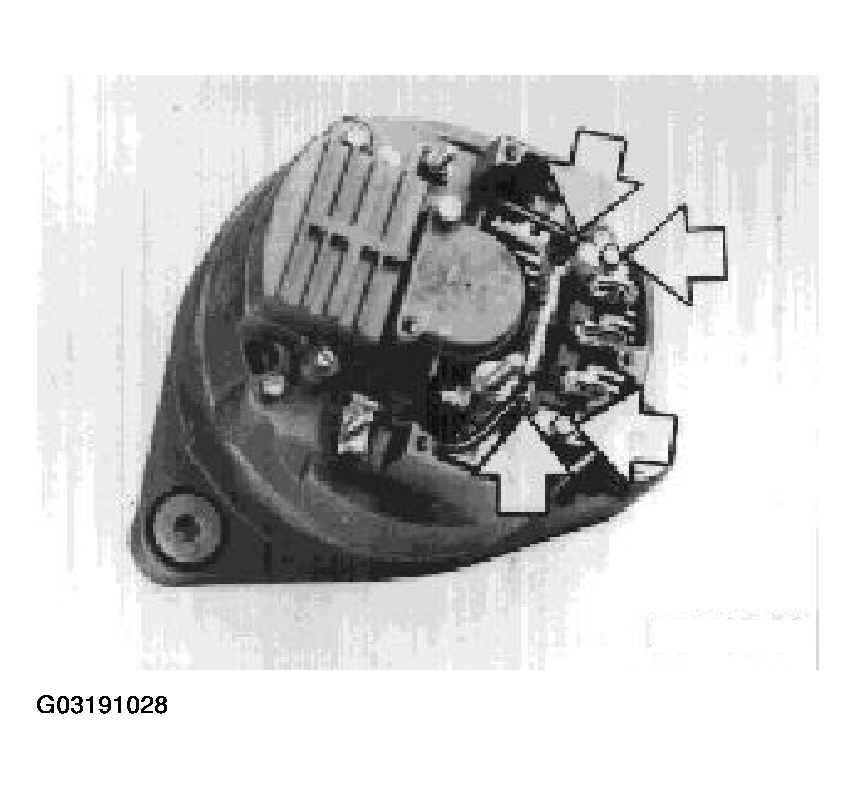

Fig 2: Unsoldering Stator Winding On Diode Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew screws and take off diode plate.

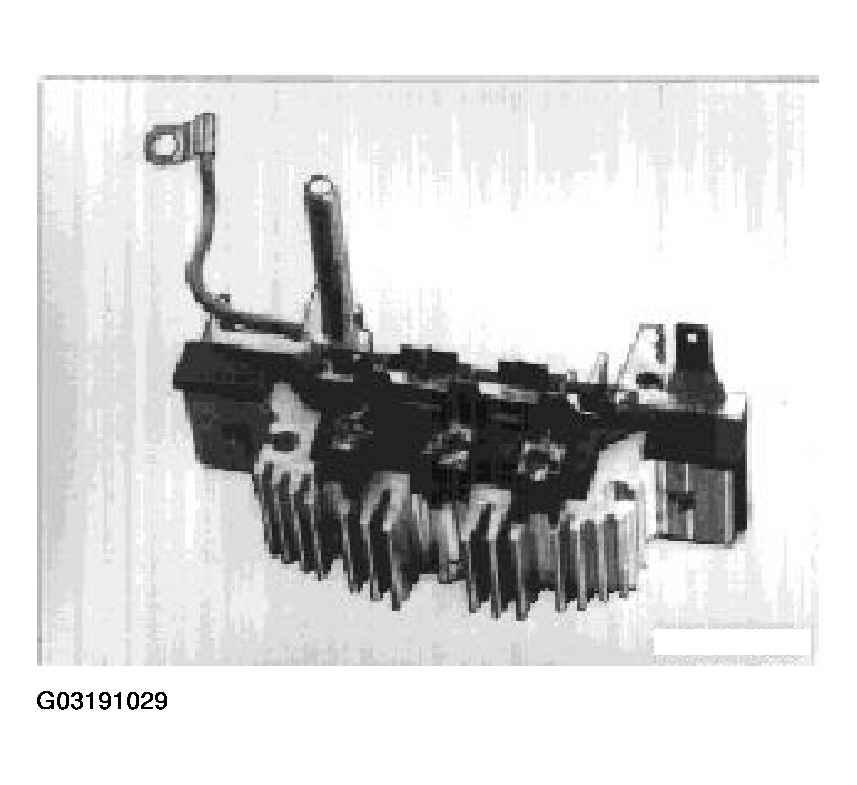

Fig 3: Taking Off Diode Plate

Courtesy of BMW OF NORTH AMERICA, INC.
