11 61... Removing and installing/replacing servomotor for throttle on control unit (M3 CSL)

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Unfasten plug connection and disconnect.

Release screws (1).

Detach servomotor (2) from fresh air housing.

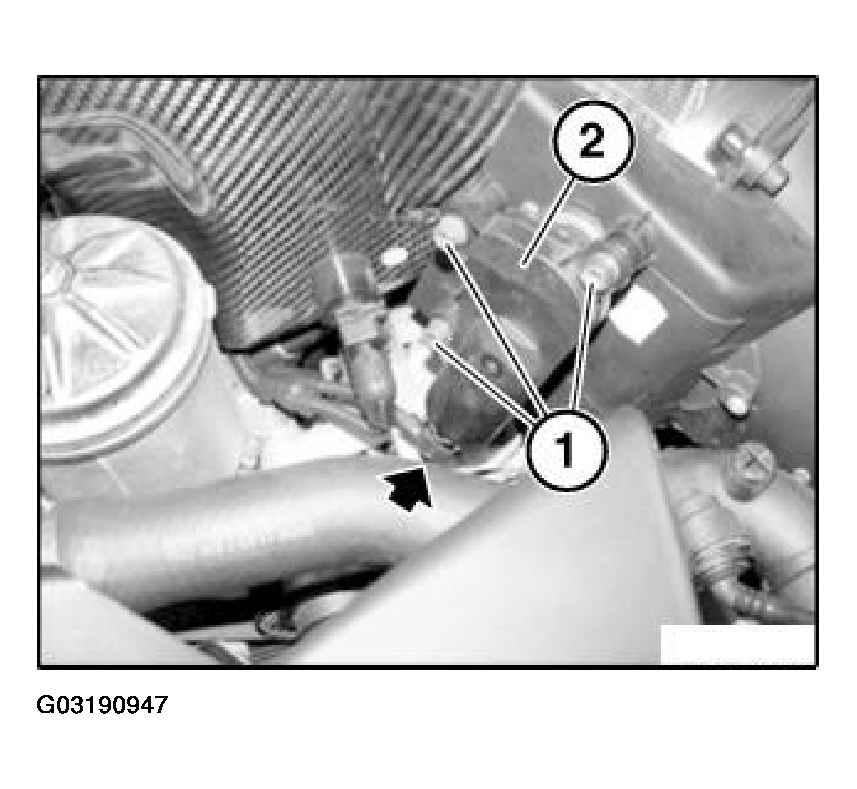

Fig 1: Detaching Servomotor
G03190947Courtesy of BMW OF NORTH AMERICA, INC.
