Becker & Sohne twin-strut underfloor platform

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

The BMW multi-trailer can only be raised if it is supported at right angles to the direction of travel. For raising, use the high additional supports (1) of Becker & Sohne.

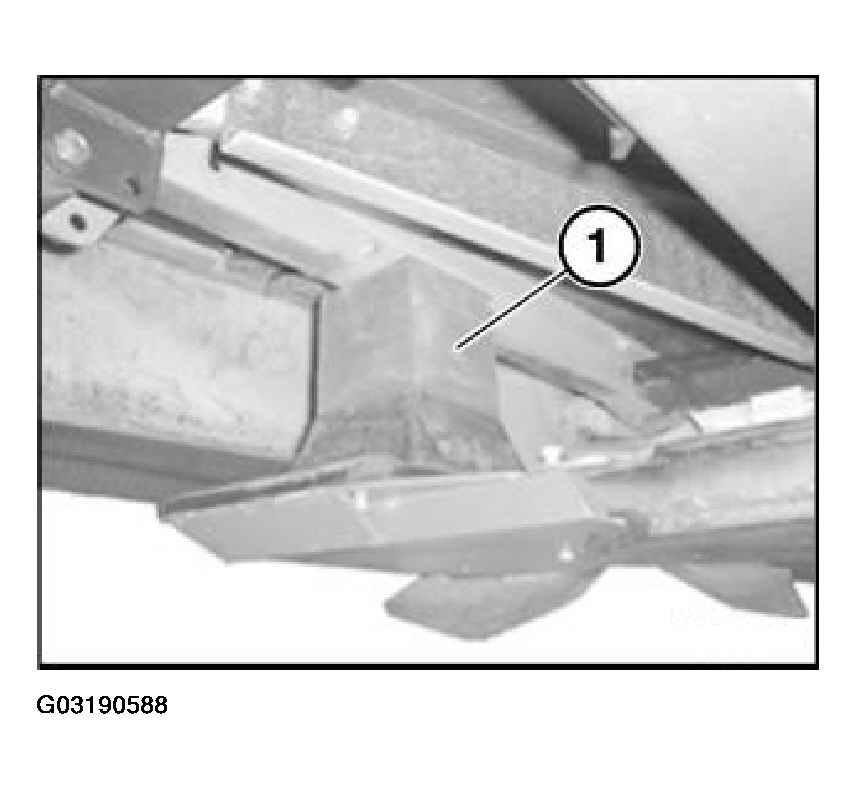

Fig 1: Identifying Supports Of Becker & Sohne
G03190588Courtesy of BMW OF NORTH AMERICA, INC.
CAUTION: Also lash the BMW multi-trailer to the flat girder bridges of the lifting platform. Flag the protruding tow hitch and the drawbar member of the BMW multi-trailer conspicuously so as to prevent injury, e.g. with a red cloth.
