Removal & Installation

WARNING: This page does not describe the selected car, but rather 46 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

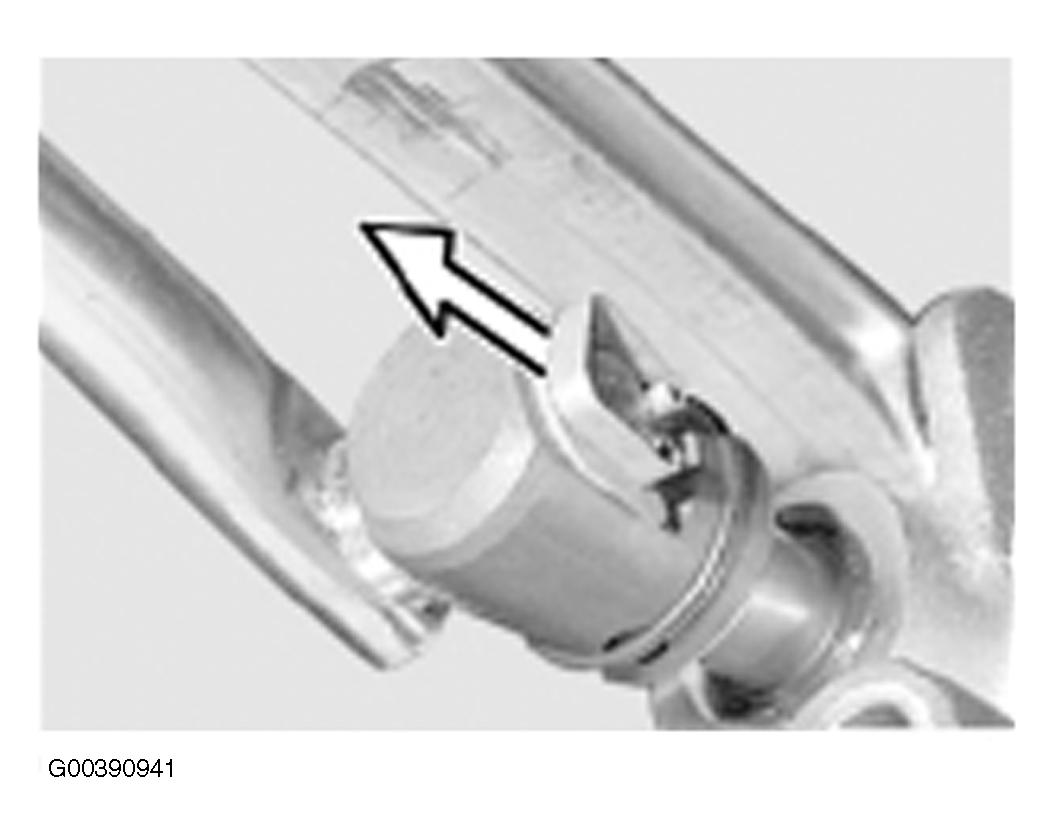

Unflange propeller shaft from transmission. Detach locking clip. See Fig 1.

Fig 1: Detaching Locking Clip

Courtesy of BMW OF NORTH AMERICA, INC.

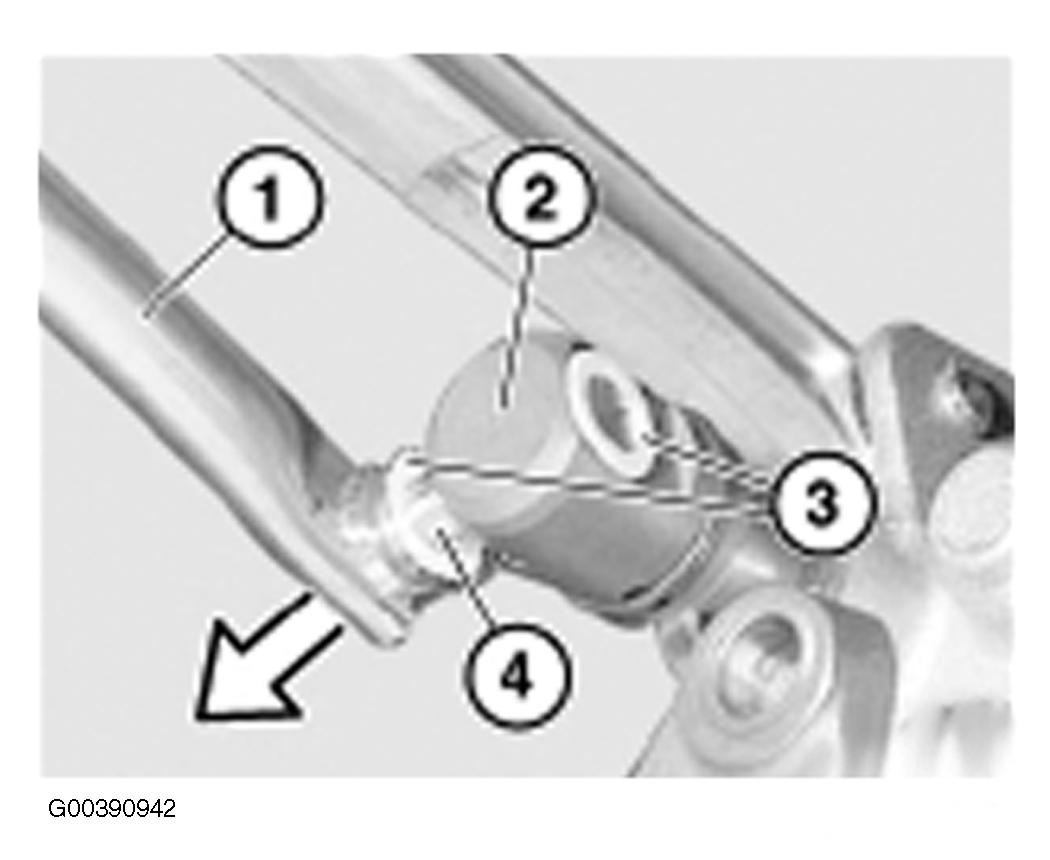

Pull shift rod (1) out of shift rod joint (2) and remove shims (3). See Fig 2. NOTE: During installation, grease shift rod pin (4). Large contact surface of shims (3) must rest on shift rod joint (2).

Fig 2: Pulling Shift Rod Out Of Shift Rod Joint

Courtesy of BMW OF NORTH AMERICA, INC.

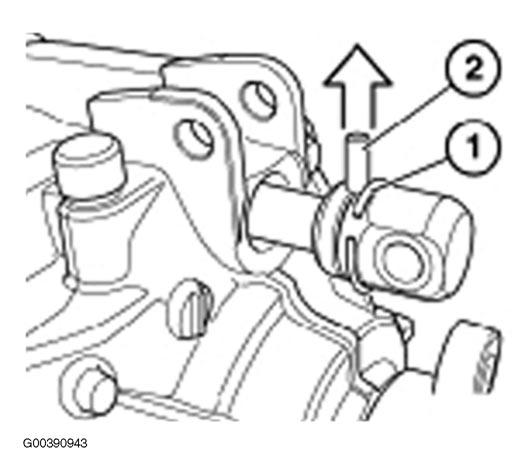

Lever spring washer (1) out of groove and push a little towards rear. Press dowel pin (2) upwards/downwards out of shift rod joint and remove shift rod joint. During installation, grease ball of selector shaft. Replace spring washer (1). See Fig 3.

Fig 3: Replacing Spring Washer

Courtesy of BMW OF NORTH AMERICA, INC.

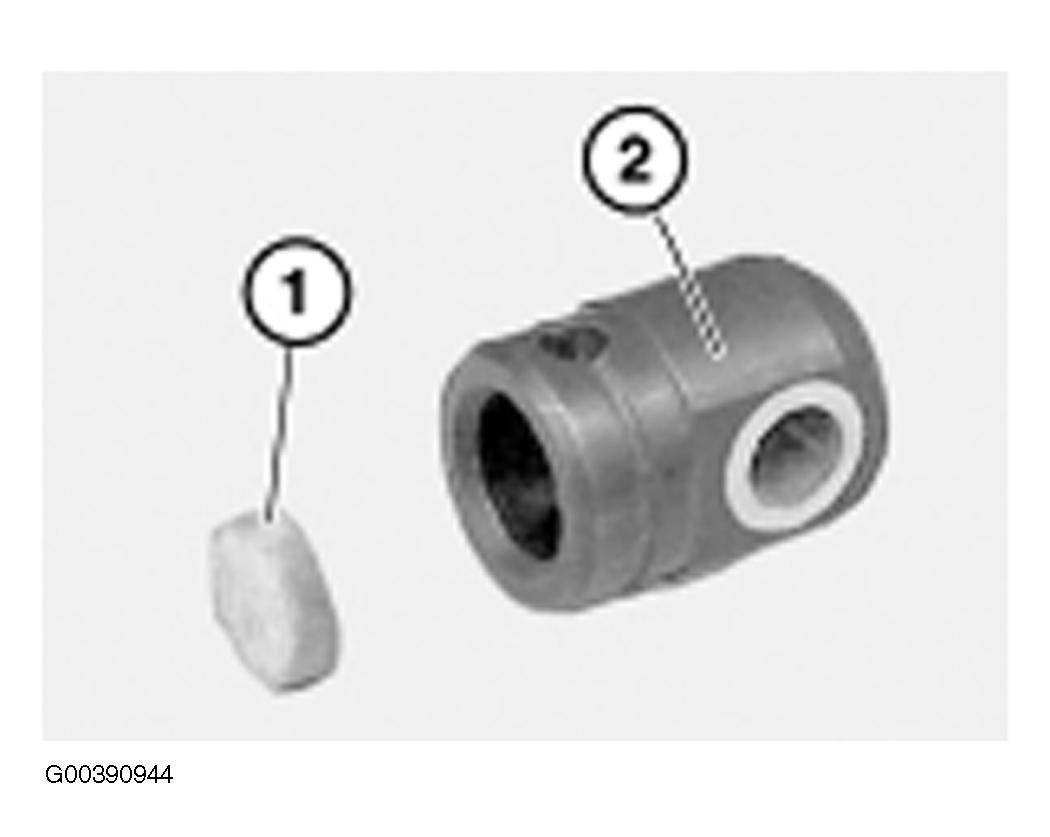

Check rubber ring (1) in shift rod joint (2) and replace if necessary. See Fig 4.

Fig 4: Checking Rubber Ring In Shift Rod Joint

Courtesy of BMW OF NORTH AMERICA, INC.
