Removal & Installation

WARNING: This page does not describe the selected car, but rather 46 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete exhaust system. See 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (M54) . Remove heat shields. Lever support bearing (1) from bracket. Pull support off shift arm. See Fig 1.

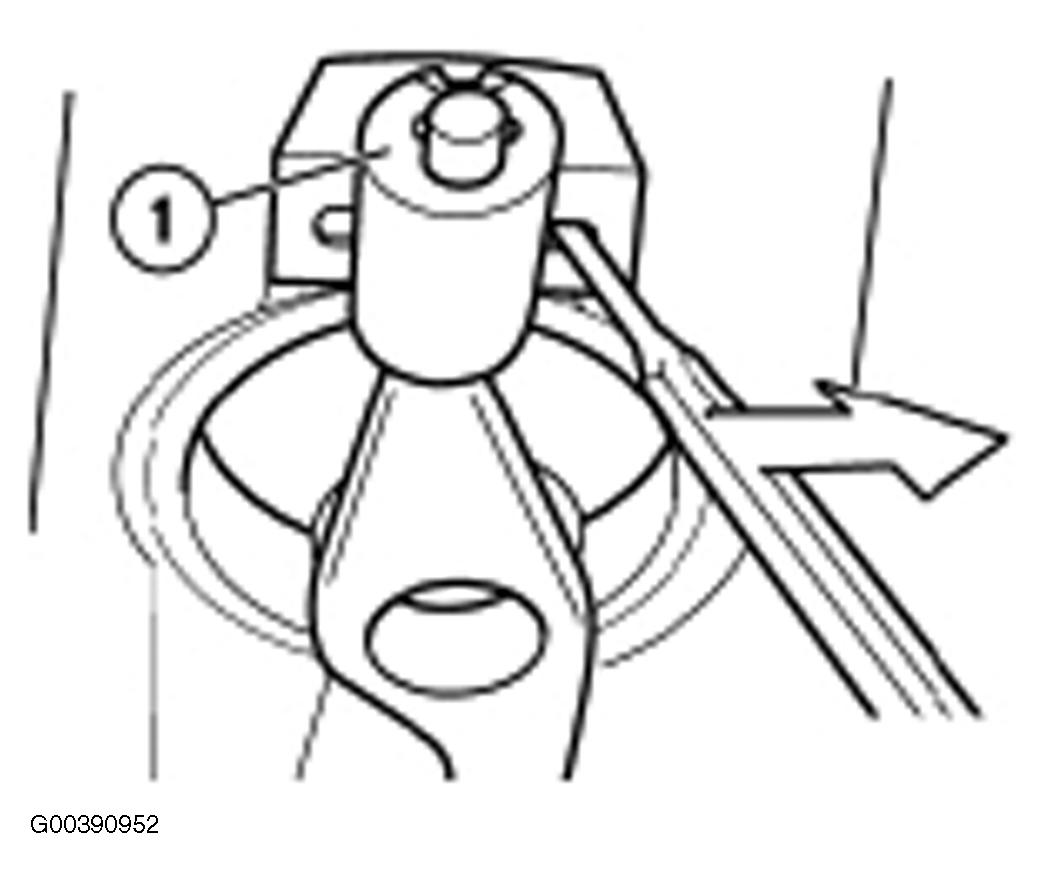

Fig 1: Levering Out Support Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

During installation, insert support bearing (1) with arrow (2) pointing up into retainer. See Fig 2.

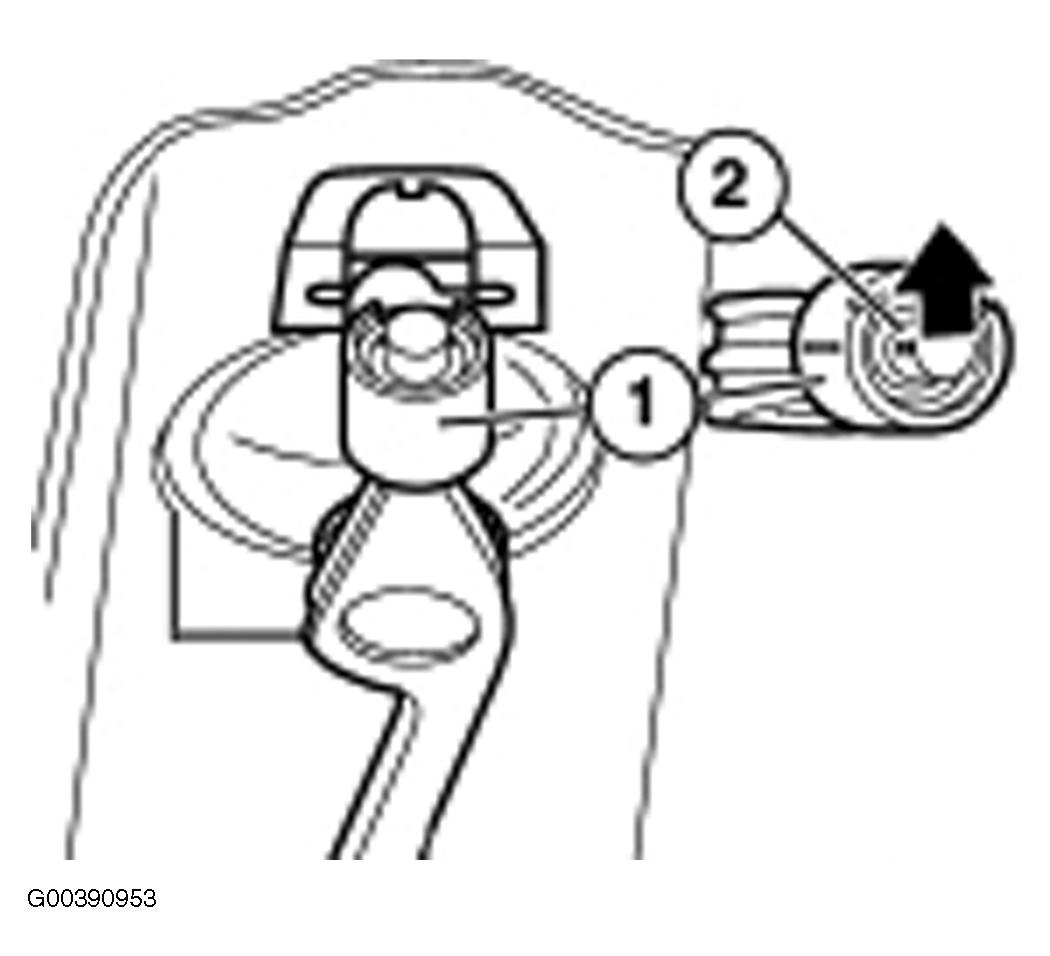

Fig 2: Installing Support Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Detach support bearing (1) from shift arm. During installation, grease bearing pin of shift arm. Attach support bearing (1) with opening (3) facing rear to shift arm. See Fig 3.

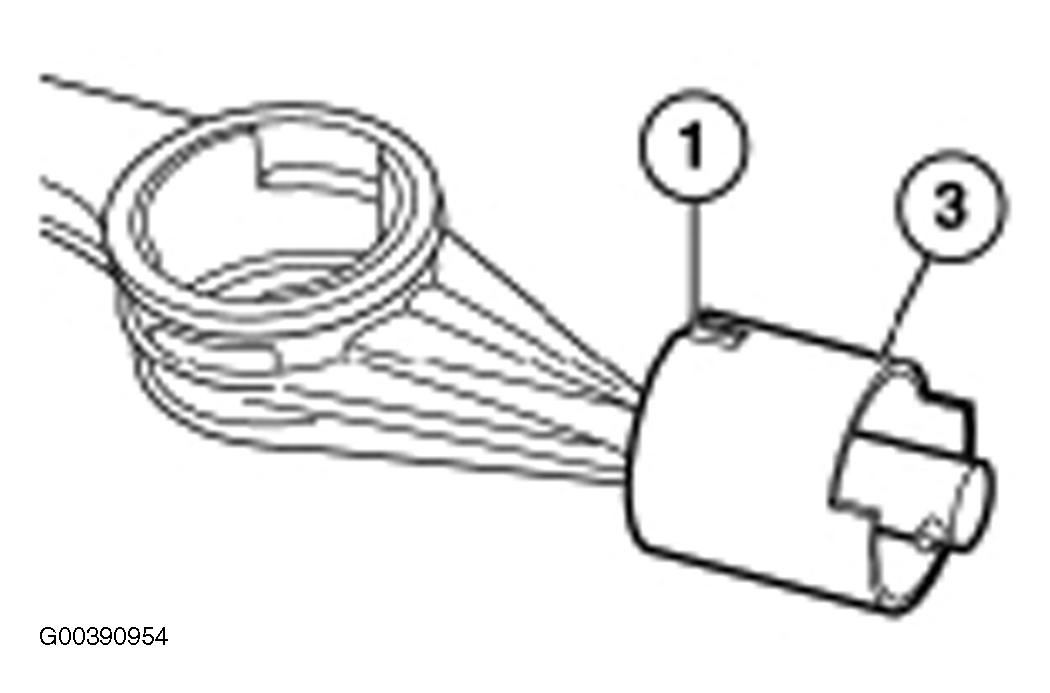

Fig 3: Attaching Support Bearing

Courtesy of BMW OF NORTH AMERICA, INC.
