Removal & Installation: Installation

WARNING: This page does not describe the selected car, but rather 24 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325i, 2006 BMW 323i, and 2005 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When joining up engine and transmission, ensure ease of movement of torque converter.
  1. Pay attention to adapter sleeves (1 and 2). See Fig 1. If necessary, withdraw adapter sleeves from transmission housing. Insert new adapter sleeves into engine block.
  2. The sheet metal flywheel is equipped with three recesses for the torque converter retaining lugs. When joining together engine and transmission, the three retaining lugs on the torque converter must be aligned with the three recesses in the sheet metal flywheel. See Fig 2. Failure to comply with this requirement leads to secondary damage on the automatic transmission. The torque converter or engine is not able to spin and would cause damage.
  3. Bore on driver must point to center of aperture in cover plate. See Fig 3.
  4. Twist torque converter on transmission until bores on lugs point to center of bore on flywheel. Screw Special Tool (24 2 300) into lug. See Fig 4.
  5. Raise automatic transmission until bore on driver is reached. Carefully insert transmission into bore on driver with Special Tool (24 2 300). See Fig 5. Flange transmission housing to engine. Remove special tool 24 2 300 from lug towards front.

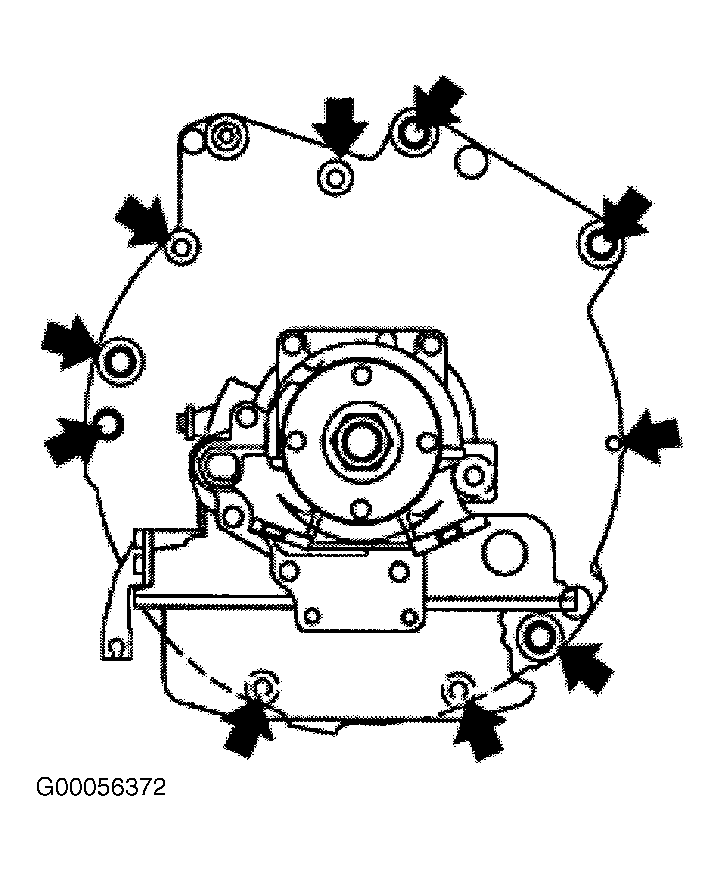

  6. Tighten transmission-to-engine screws to specification. See Figure. See TORQUE SPECIFICATIONS .

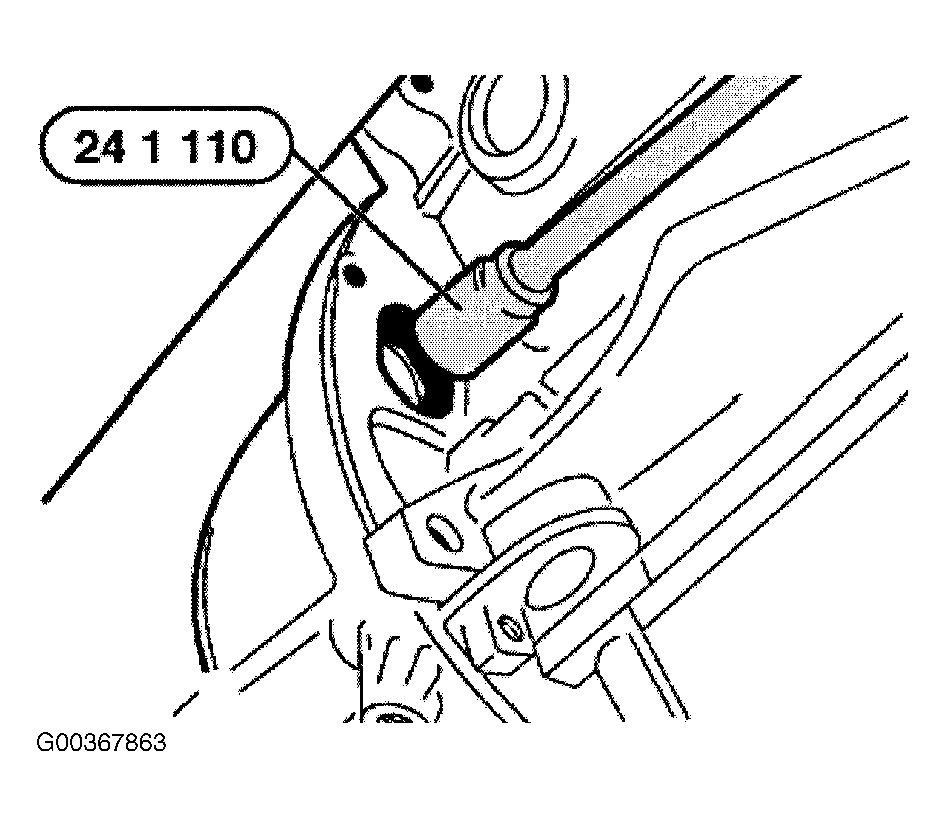

  7. Use only original screws. Tighten torque converter-to-flywheel screws to specification. See Figure. See TORQUE SPECIFICATIONS .

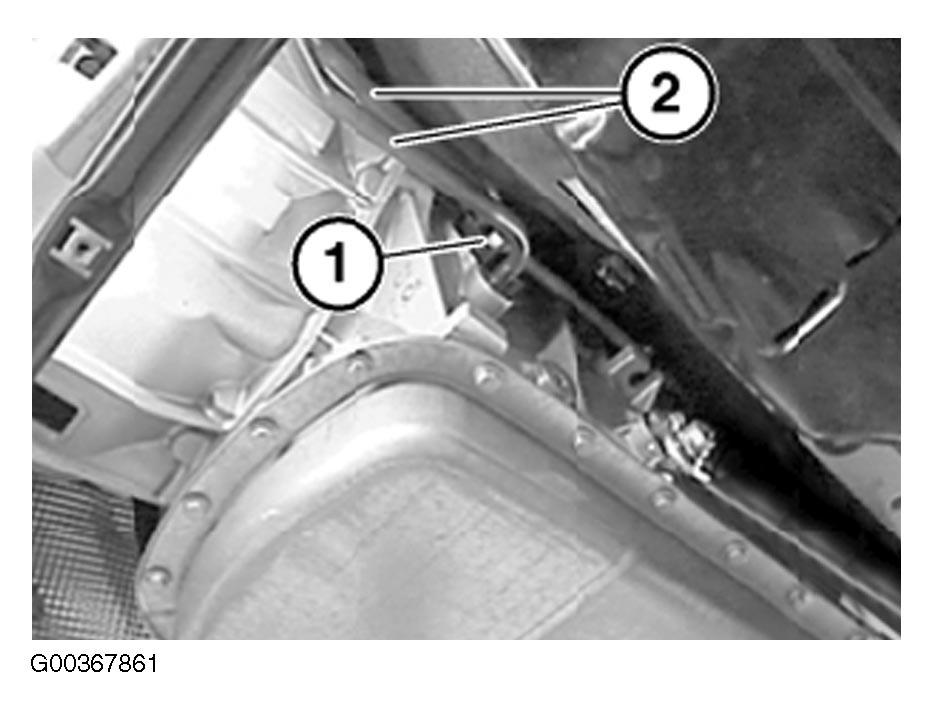

  8. To complete installation, reverse removal procedure. Replace sealing rings on hydraulic lines (2) to oil cooler. See Figure.
  9. Pull off cover tape from butylene tape on both sides. Stick butylene tape (1) to outside of center bearing (2). See Fig 6. Remove butylene tape already attached to center bearing. Clean adhesive area on center bearing and on body. Then coat adhesive area on body with mineral oil. This coating with oil is necessary to facilitate insertion of the sticky butylene tape in the propeller shaft tunnel. This prevents the butylene tape from being deformed. Press center bearing (2) into transmission tunnel. See Fig 7.

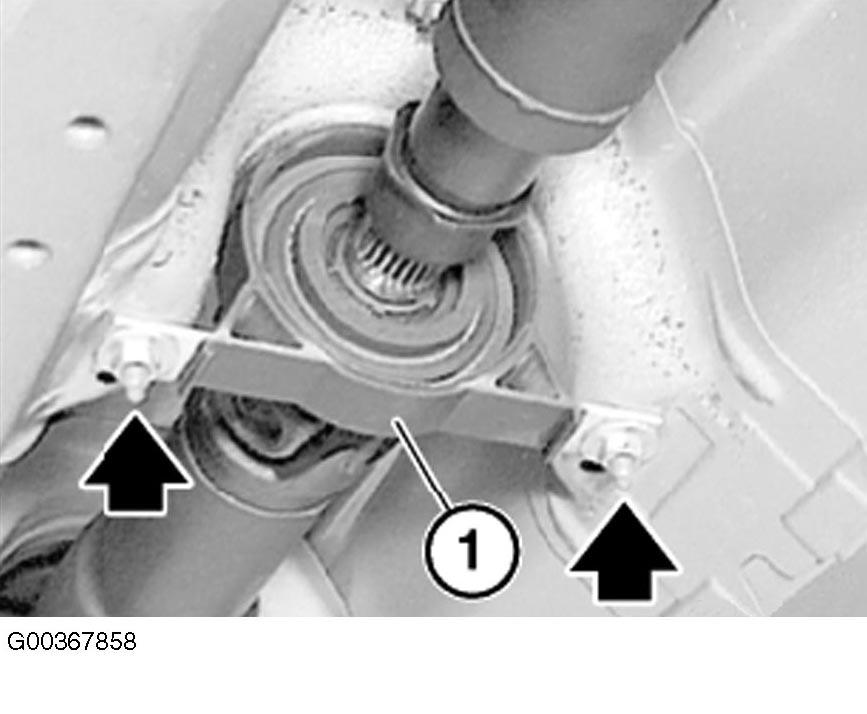

  10. Tighten nuts of center mount-to-body to specification. See Figure. See TORQUE SPECIFICATIONS .

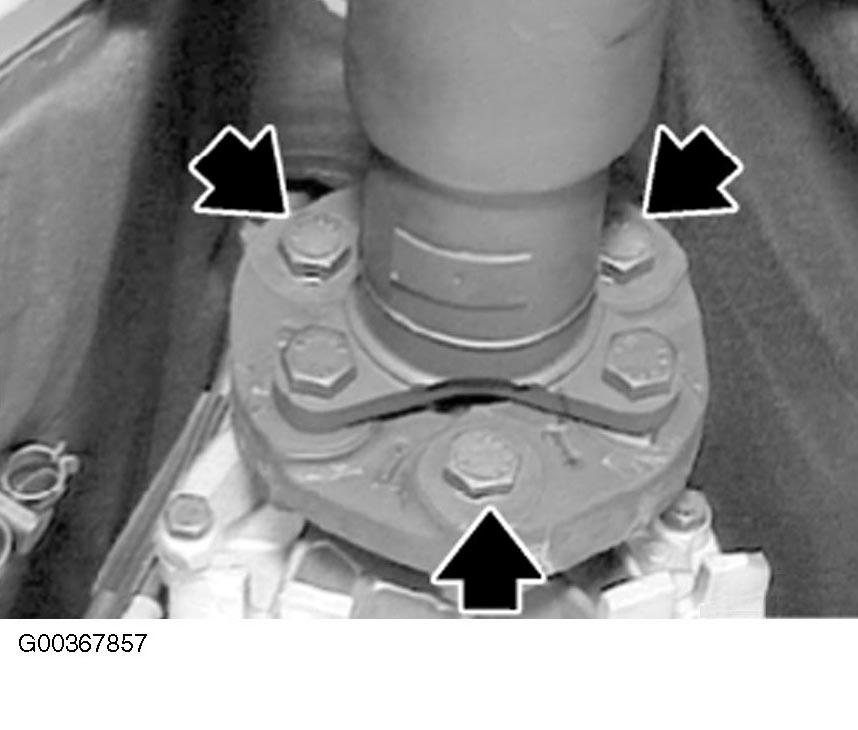

  11. Tighten nuts of flexible disk-to-propeller shaft and transmission output flange to specification. See Figure. See TORQUE SPECIFICATIONS .

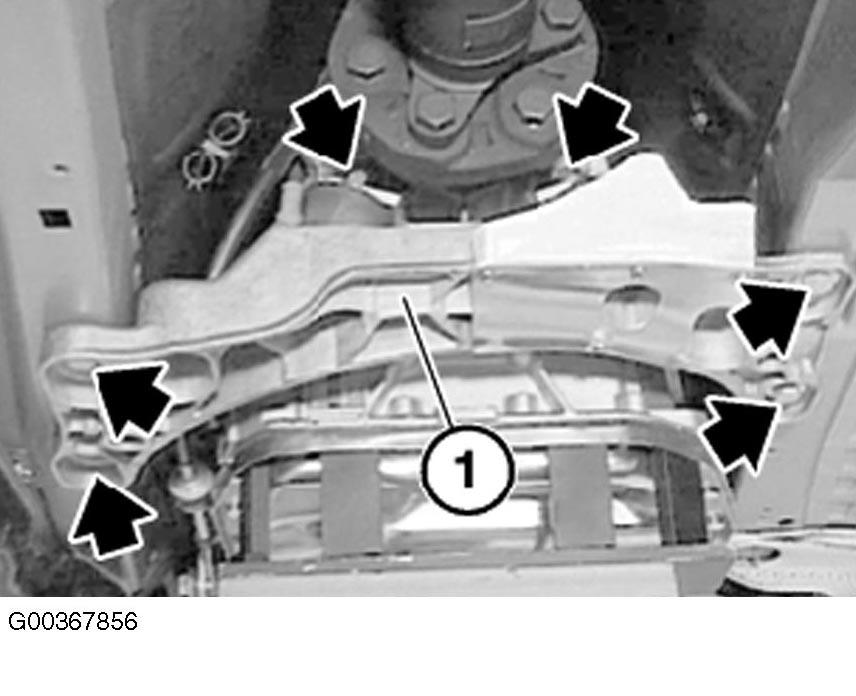

  12. Tighten screws of cross member-to-body and rubber mounts-to-cross member or transmission to specification. See Figure. See TORQUE SPECIFICATIONS .

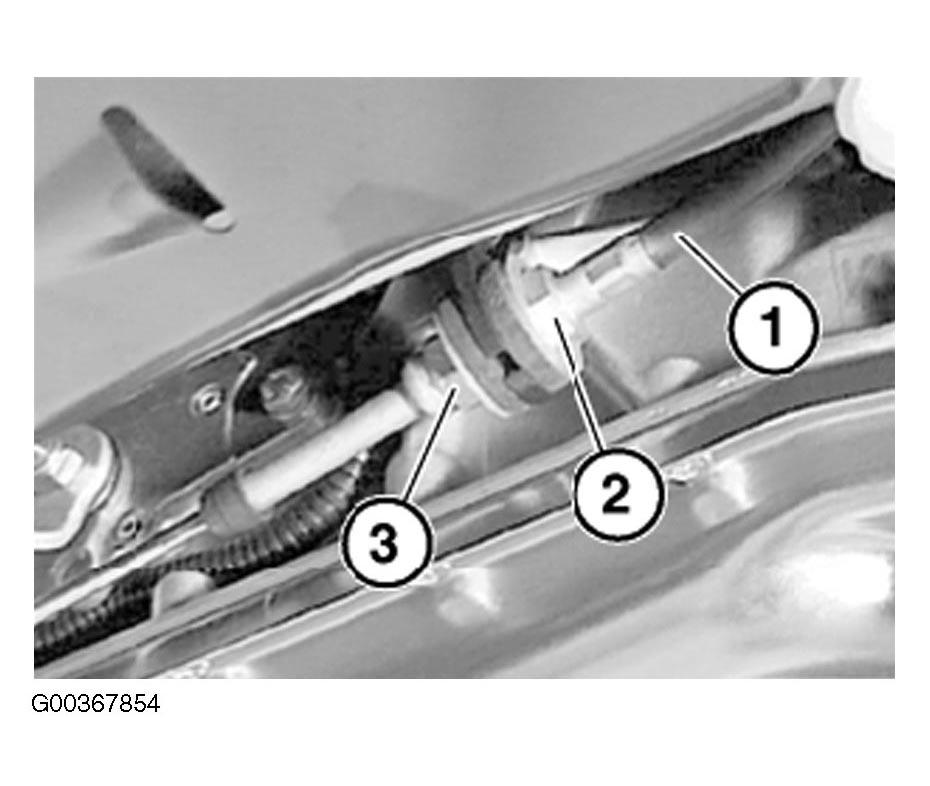

  13. Tighten cable on shift tower/transmission to specification. See Figure. See TORQUE SPECIFICATIONS .
  14. Check cable for ease of movement. Move selector lever to Park. Grip clamping sleeve (1). See Fig 8. Slacken nut (2). Press selector lever (3) forwards into park position. Press cable (4) in direction of arrow and release again. Grip clamping sleeve (1). Tighten down nut (2) to specification. See TORQUE SPECIFICATIONS . Move selector lever to park position. Check whether parking gear is engaged by turning propeller shaft.

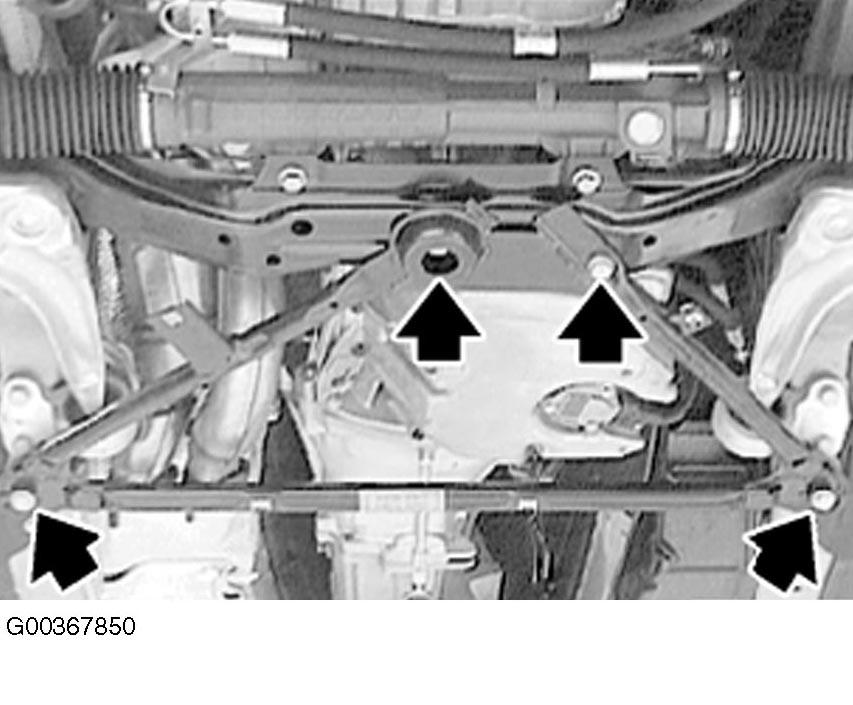

  15. Tighten screws of front end reinforcement on front axle carrier/engine carrier to specification. See Figure. See TORQUE SPECIFICATIONS .
  16. If necessary, install reinforcement plate and tighten to specification. See TORQUE SPECIFICATIONS .
  17. After completion of work, check transmission fluid level. Connect battery.

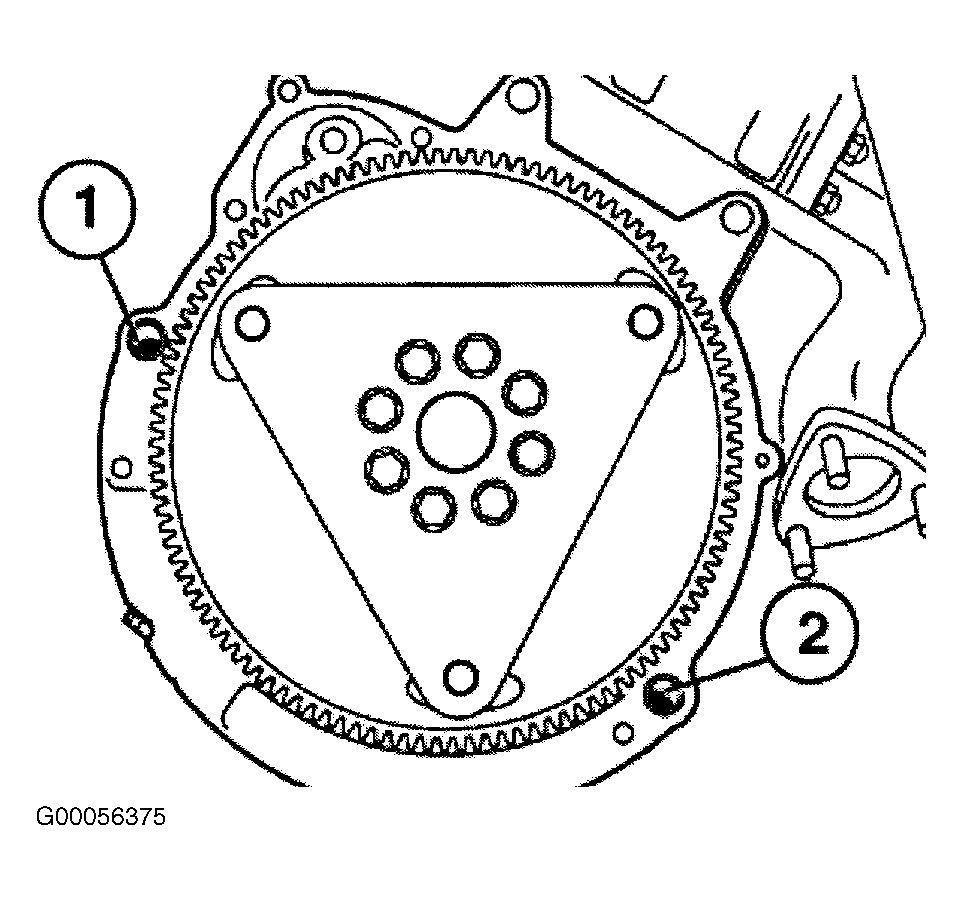

Fig 1: Locating Adapter Sleeves
G00056375Courtesy of BMW OF NORTH AMERICA, INC.

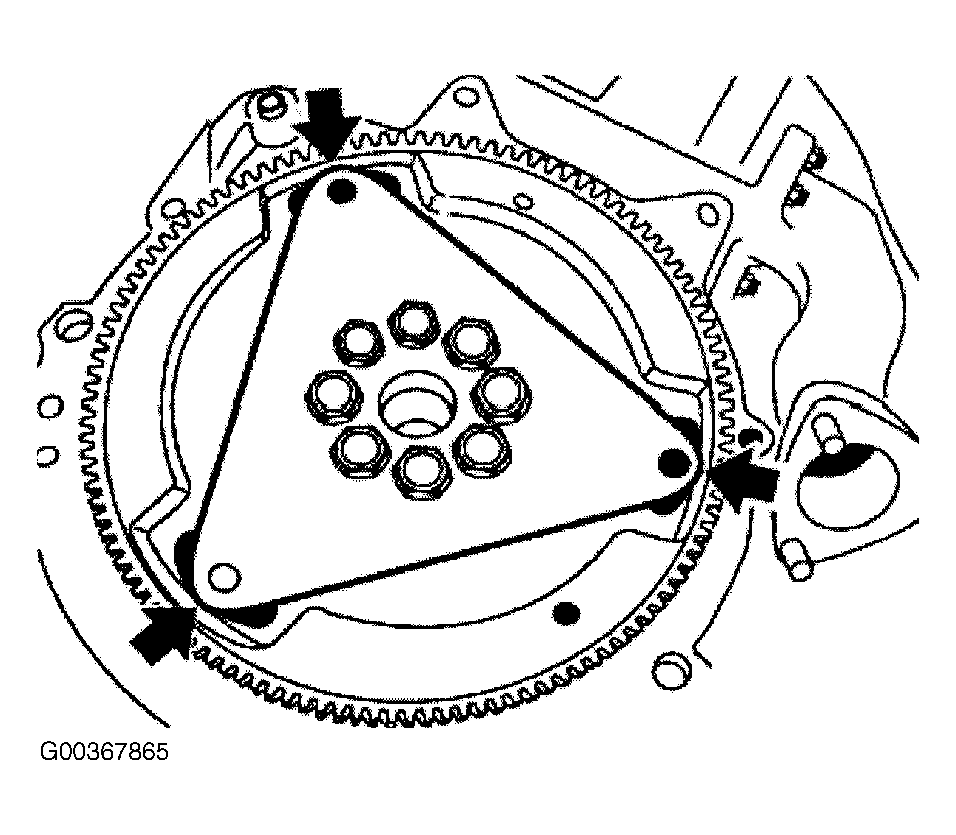

Fig 2: Aligning Recesses In Sheet Metal Flywheel
G00367865Courtesy of BMW OF NORTH AMERICA, INC.

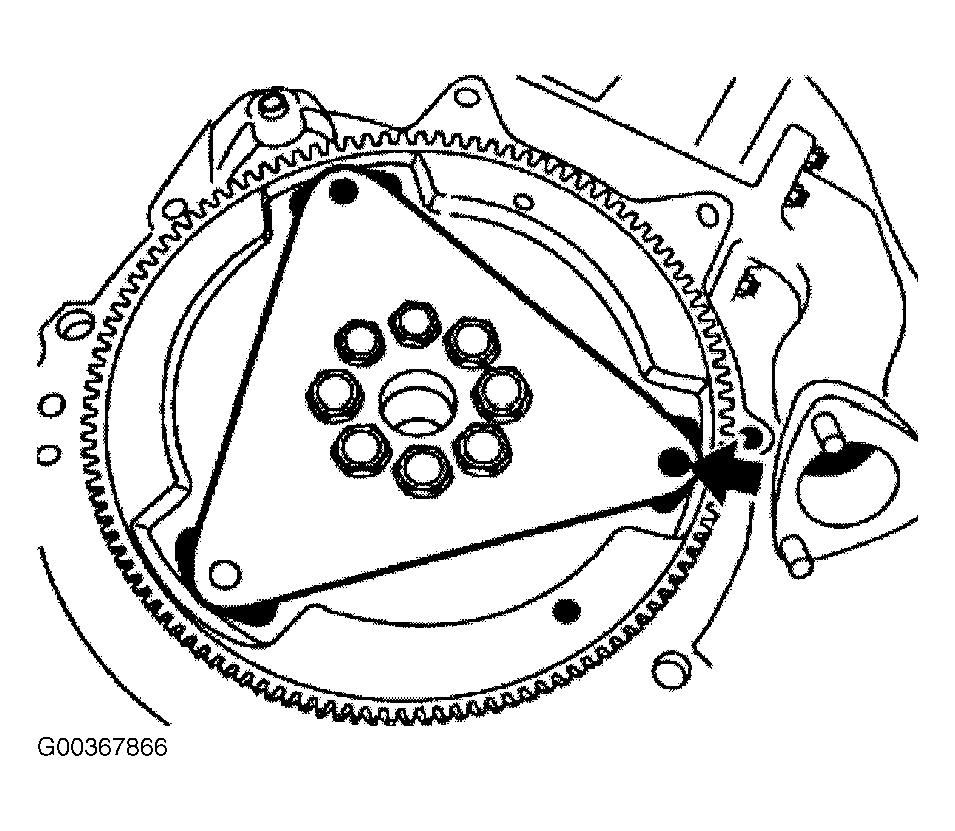

Fig 3: Pointing Bore To Center Of Aperture In Cover Plate
G00367866Courtesy of BMW OF NORTH AMERICA, INC.

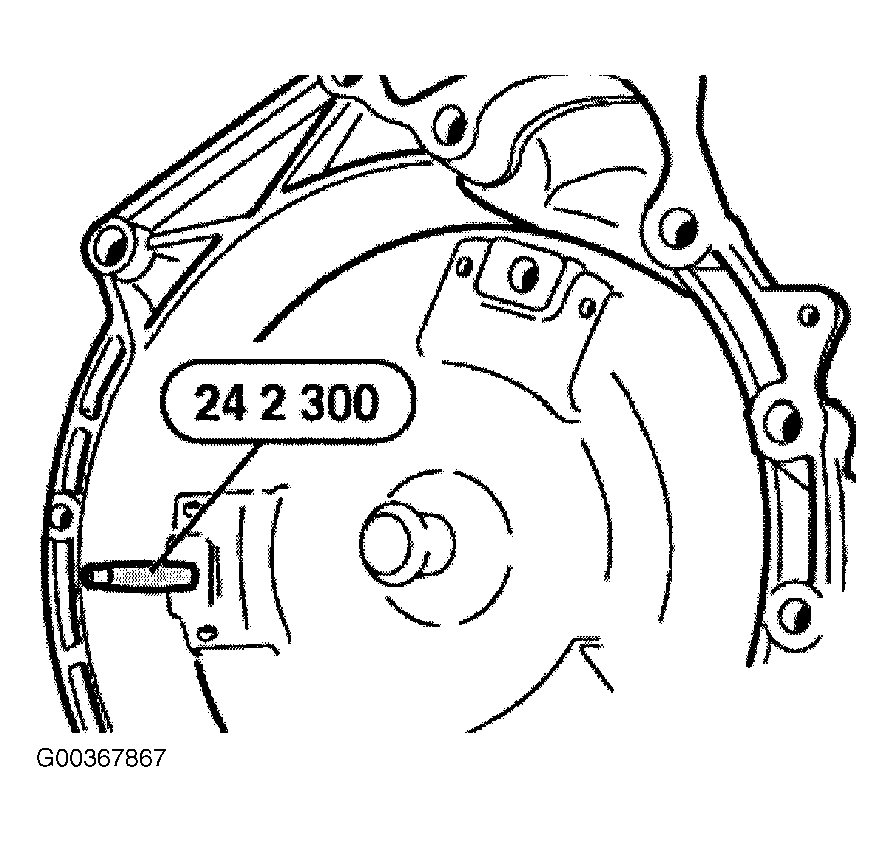

Fig 4: Screwing Special Tool Into Lug
G00367867Courtesy of BMW OF NORTH AMERICA, INC.

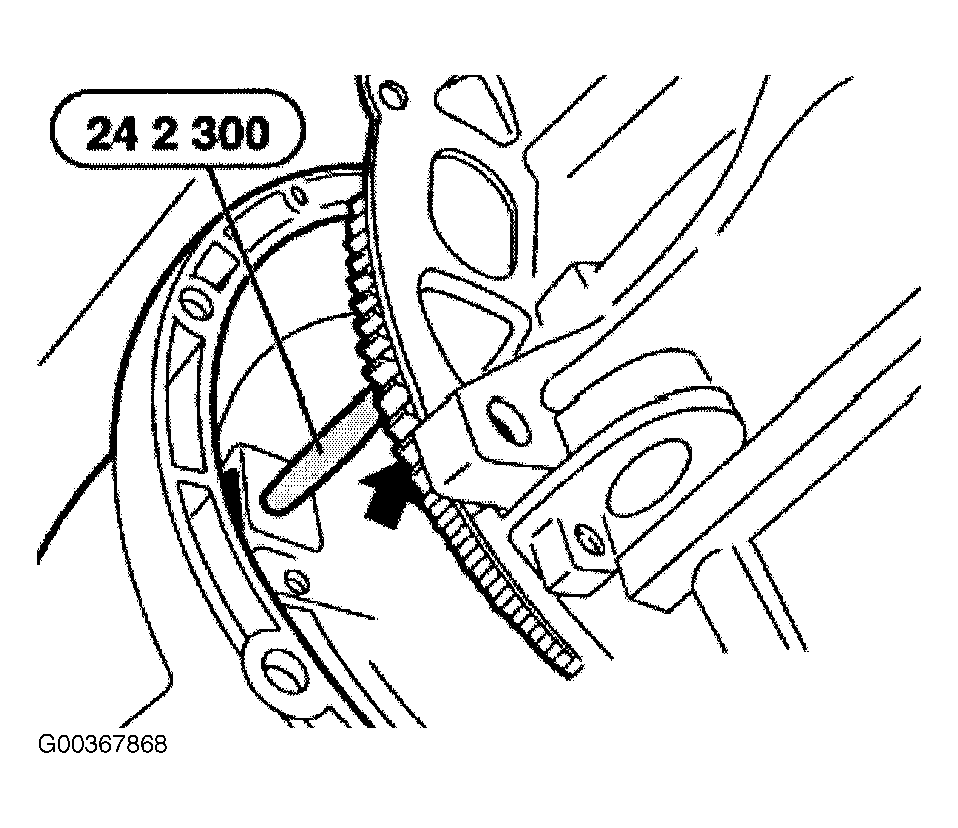

Fig 5: Raising Automatic Transmission
G00367868Courtesy of BMW OF NORTH AMERICA, INC.

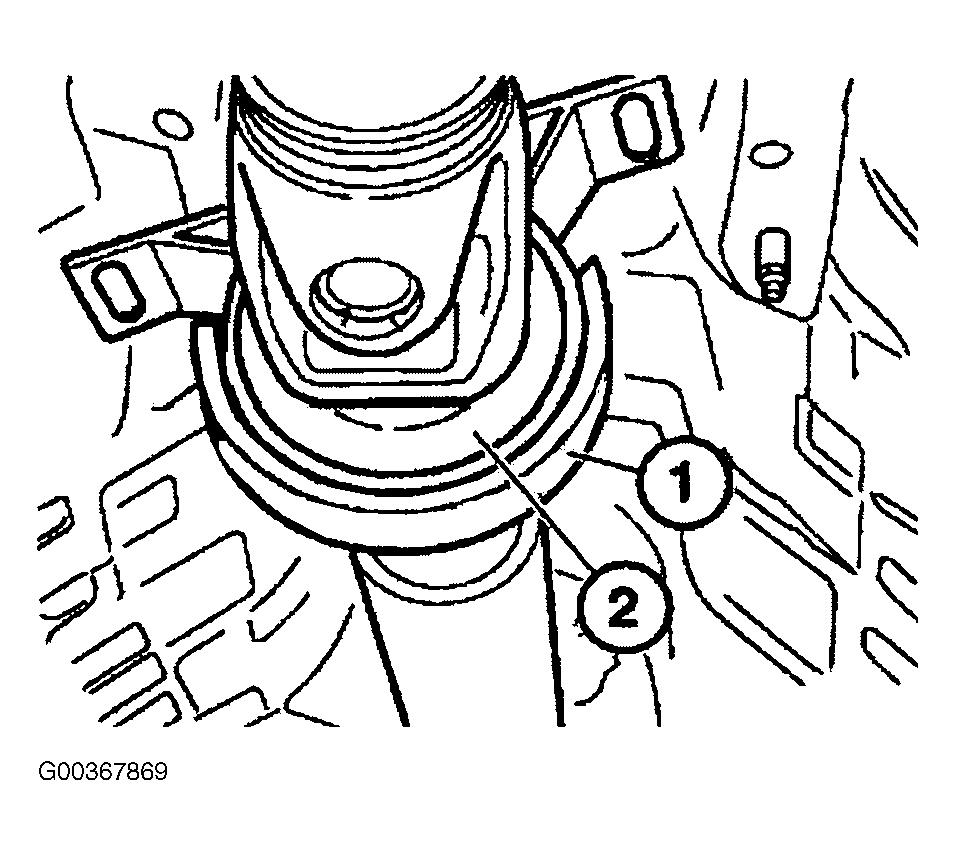

Fig 6: Sticking Butylene Tape To Center Bearing
G00367869Courtesy of BMW OF NORTH AMERICA, INC.

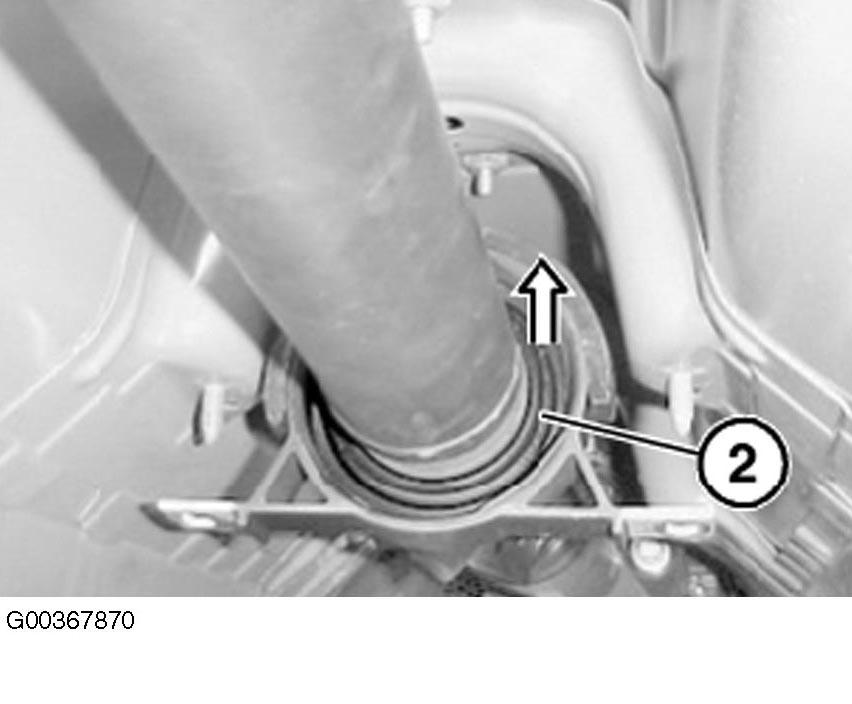

Fig 7: Pressing Center Bearing Into Transmission Tunnel
G00367870Courtesy of BMW OF NORTH AMERICA, INC.

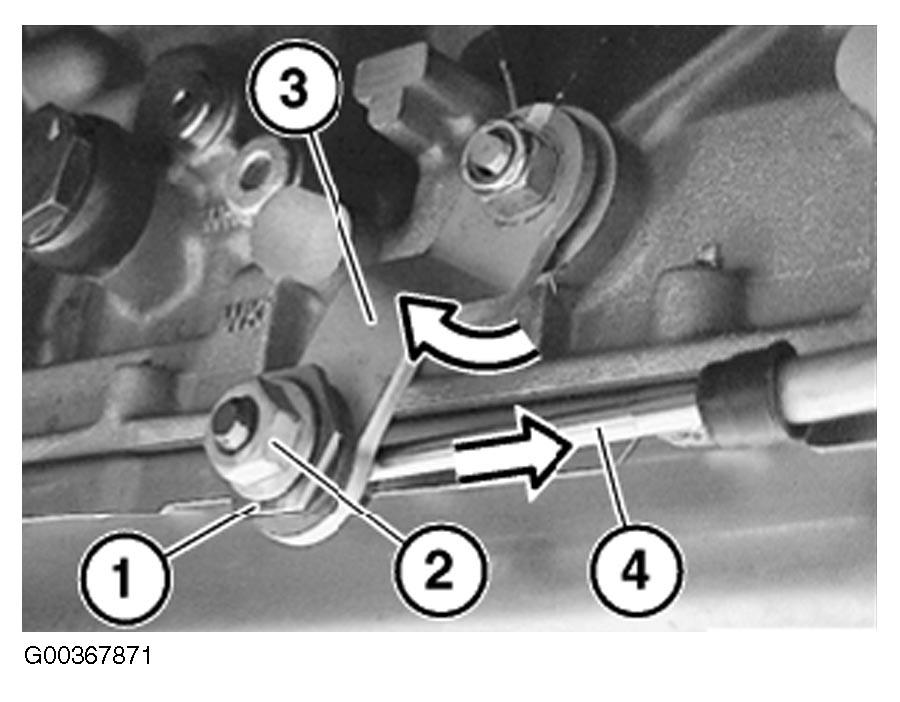

Fig 8: Adjusting Selector Lever
G00367871Courtesy of BMW OF NORTH AMERICA, INC.
