Removing And Installing/Replacing Shift Unit (A5S 325Z)
WARNING: This page does not describe the selected car, but rather 49 other vehicles, including the 2007 BMW Z4, 2007 BMW X3, 2006 BMW Z4, 2006 BMW X5, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Numbers in text refer to numbers in figures.
NOTE:
After completing work, top up ATF level. Check/top up fluid level in automatic transmission. See CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (A5S 325Z)
.
Remove and install transmission sump. See REMOVING AND INSTALLING/SEALING OR REPLACING TRANSMISSION OIL SUMP (A5S 325Z) .
Remove and install/replace transmission fluid screen. See REMOVING AND INSTALLING/REPLACING TRANSMISSION OIL SCREEN (A5S 325Z) .

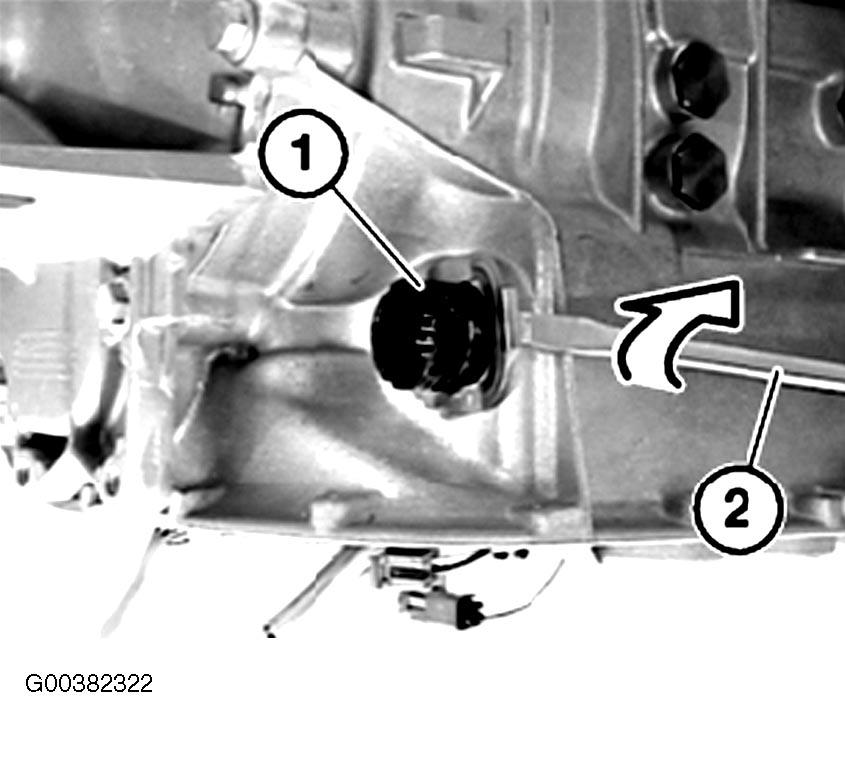

Remove retaining clip with screwdriver (2). See Fig 1 . Insert transmission plug (1) in transmission. Upon installation: to facilitate assembly, coat O-ring with Vaseline. See Fig 2 .

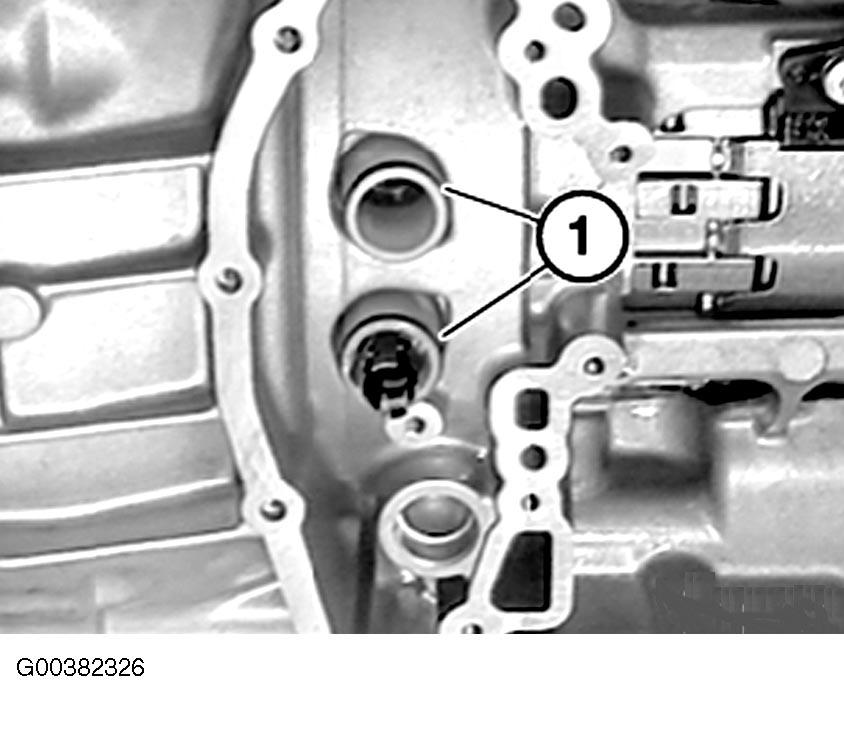

Release screws (1). See Fig 3 . Remove pulse generator (2). Pull off connector (3).

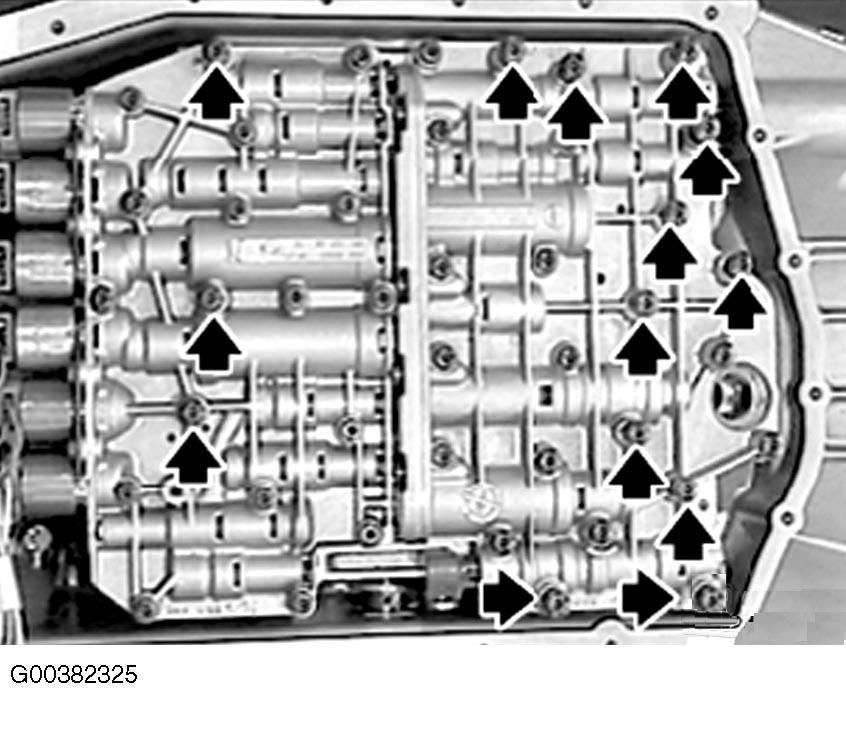

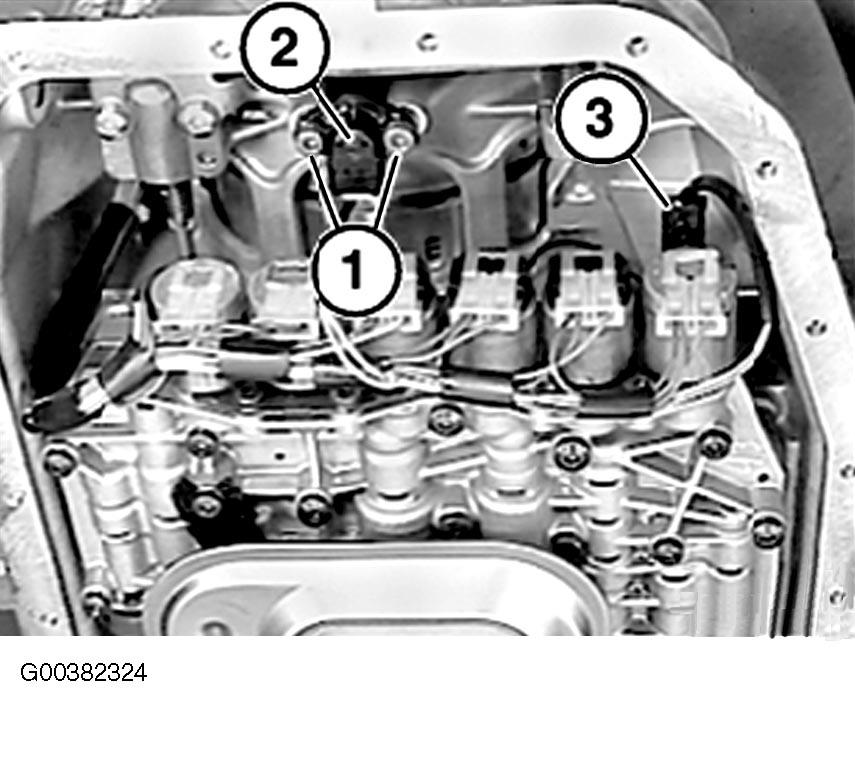

Unfasten screws. See Fig 4 . Take off valve body. Upon installation, tighten fasteners to specification. See TORQUE SPECIFICATIONS .

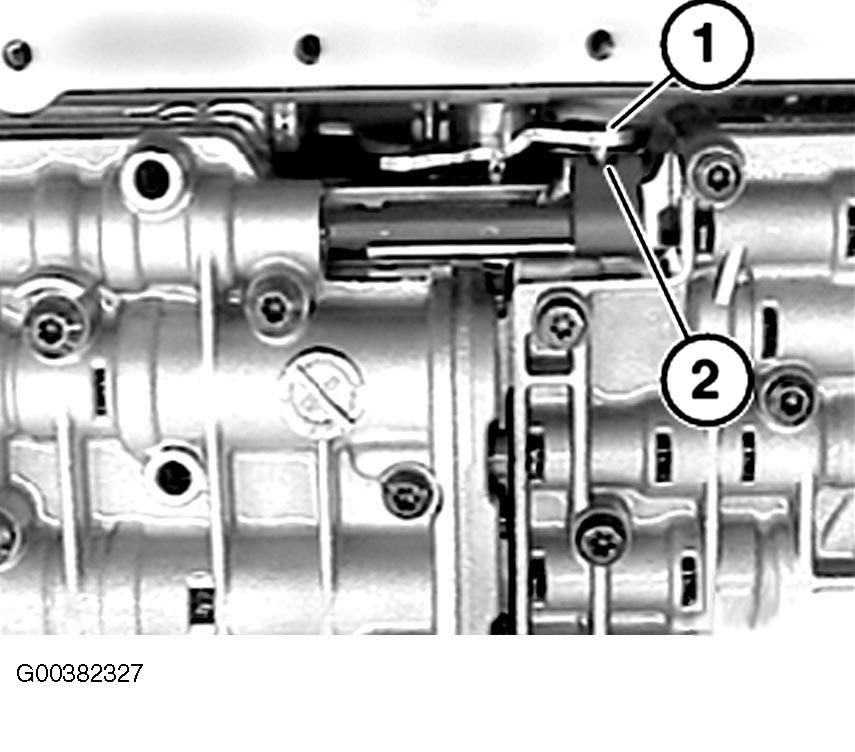

Installation: coat O-rings (1) with automatic transmission fluid. See Fig 5 .
CAUTION:

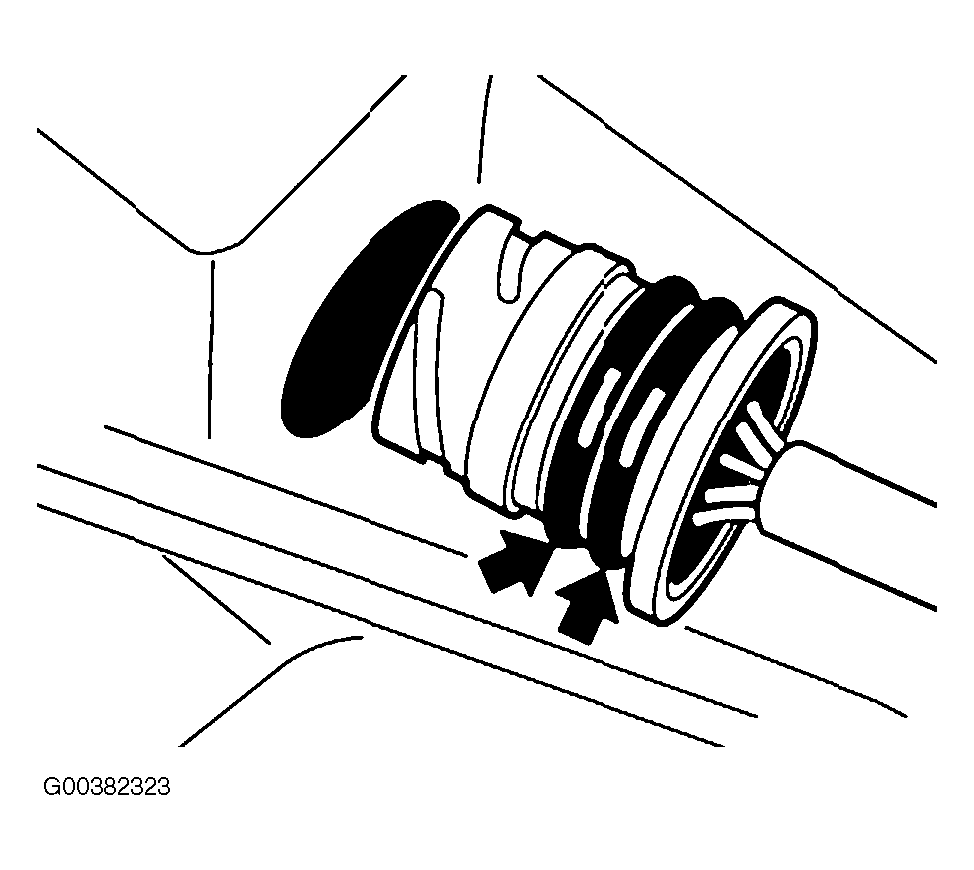

Journal (1) of detent disk must be located in groove (2) of slide valve. See Fig 6
.
