Removing And Installing/Replacing Position Switch (A5S 325Z)

WARNING: This page does not describe the selected car, but rather 49 other vehicles, including the 2007 BMW Z4, 2007 BMW X3, 2006 BMW Z4, 2006 BMW X5, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Numbers in text refer to numbers in figures.

Move selector lever into "P" setting. Unlock cable plug (1) and disconnect. See Fig 1 .

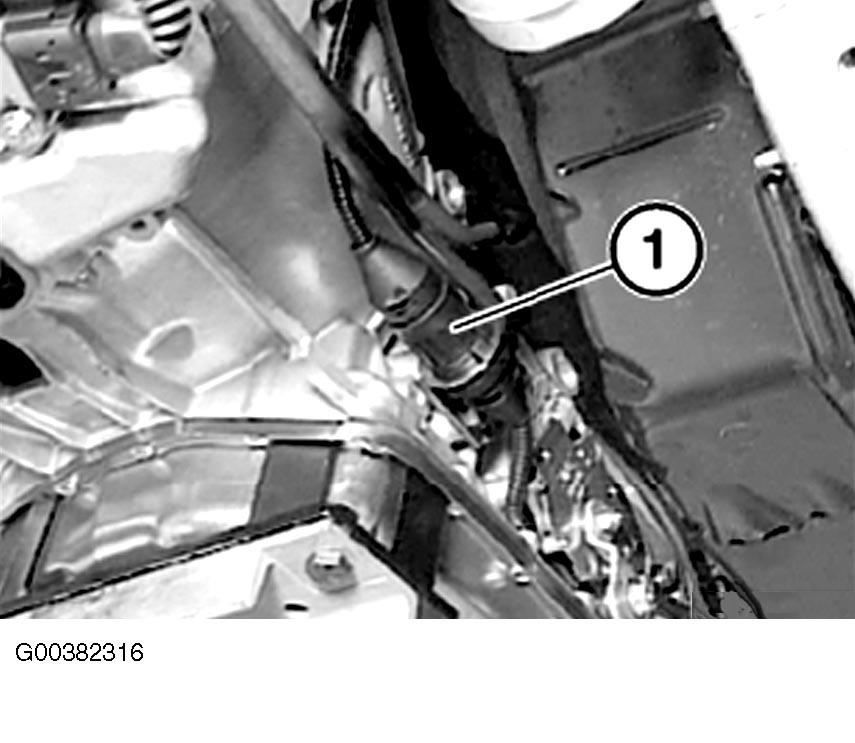

Fig 1: Locating Cable Plug

G00382316

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw. Remove cable plug (1) with retaining bracket. See Fig 2 .

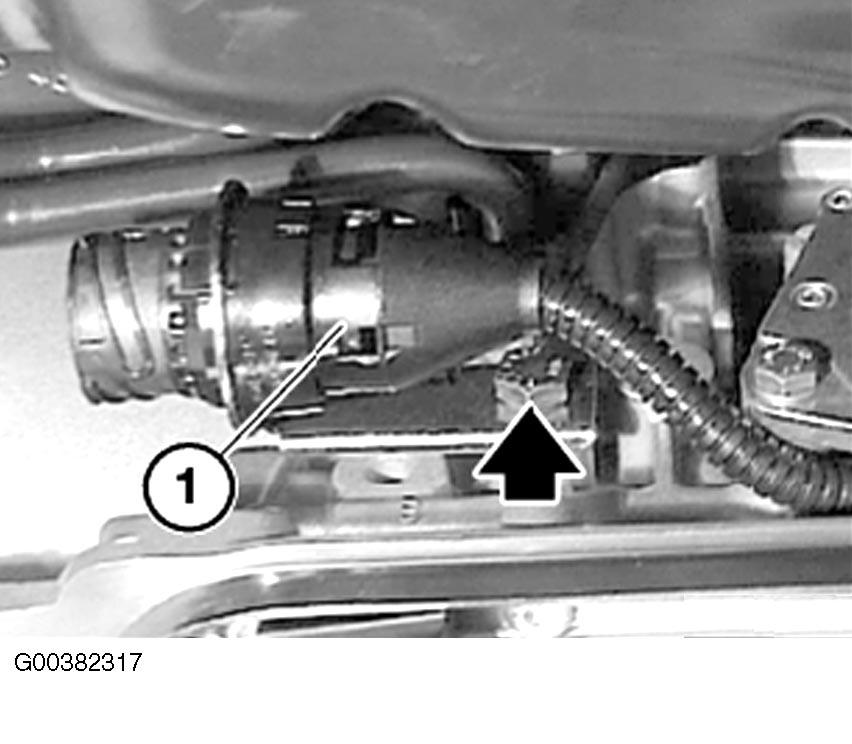

Fig 2: Removing Cable Plug

G00382317

Courtesy of BMW OF NORTH AMERICA, INC.

Grip clamping sleeve (1). See Fig 3 . Loosen nut (2). Installation: adjust selector lever. See GEARSHIFT SELECTOR LEVER CABLE .

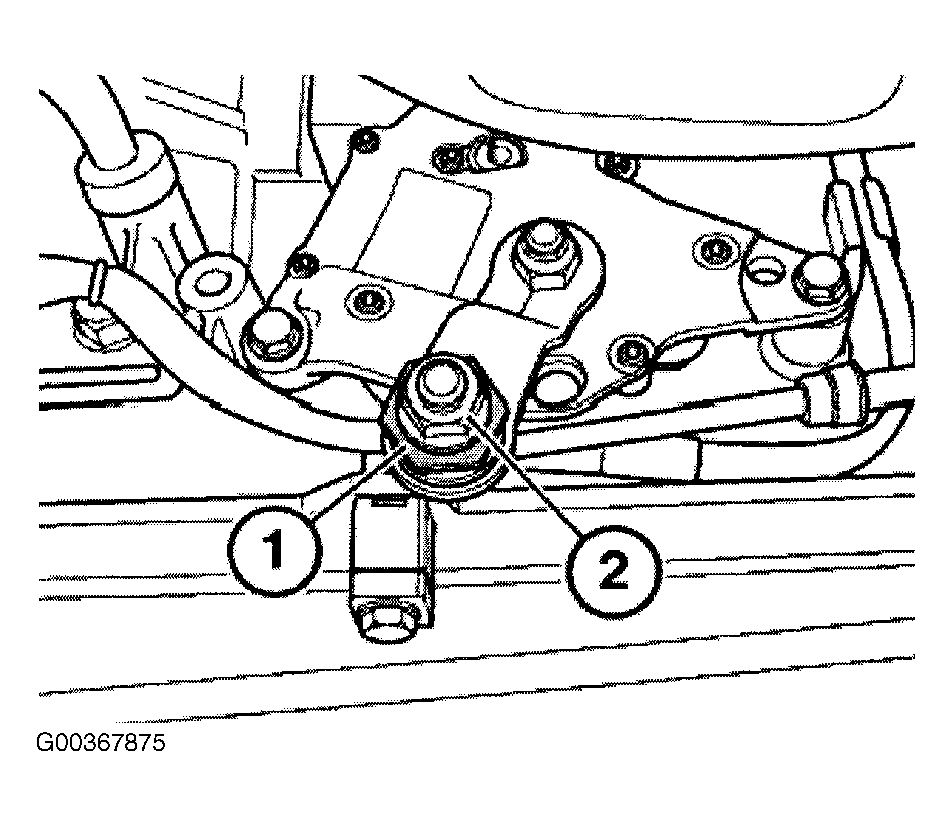

Fig 3: Locating Shift Lever Nut

G00367875

Courtesy of BMW OF NORTH AMERICA, INC.

Grip cable at hexagon head (1). Unscrew nut (2). See Fig 4 . Remove cable from bracket. Upon installation, tighten to specification. See TORQUE SPECIFICATIONS .

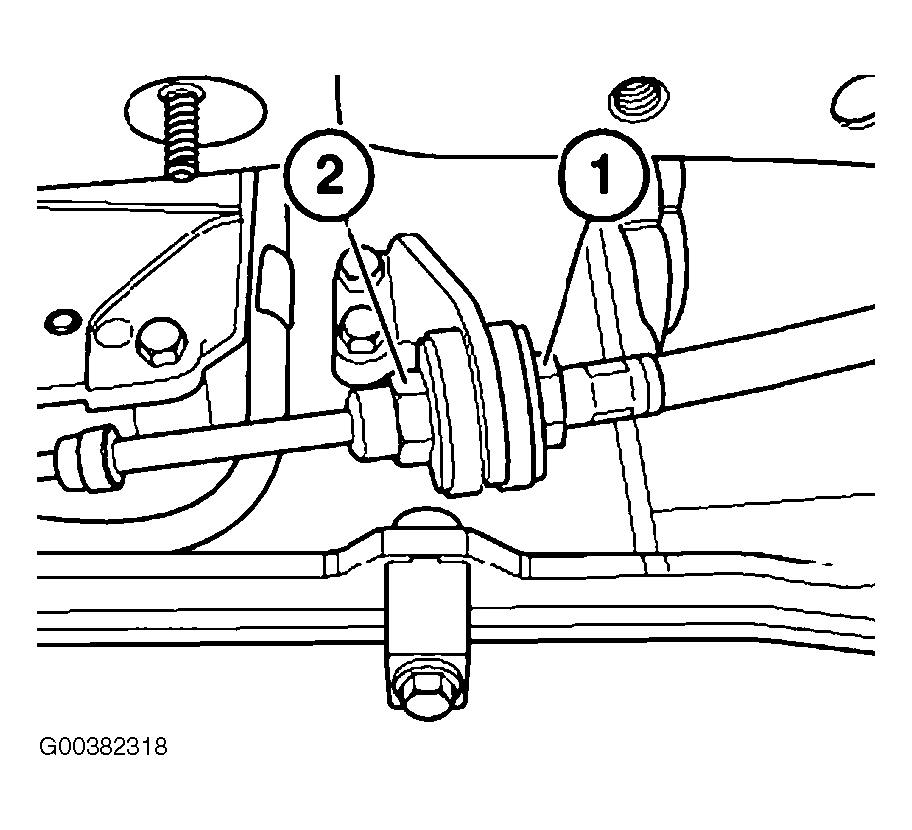

Fig 4: Removing Cable From Bracket

G00382318

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nut (1). See Fig 5 . Remove gearshift lever (2). Upon installation, tighten to specification. See TORQUE SPECIFICATIONS .

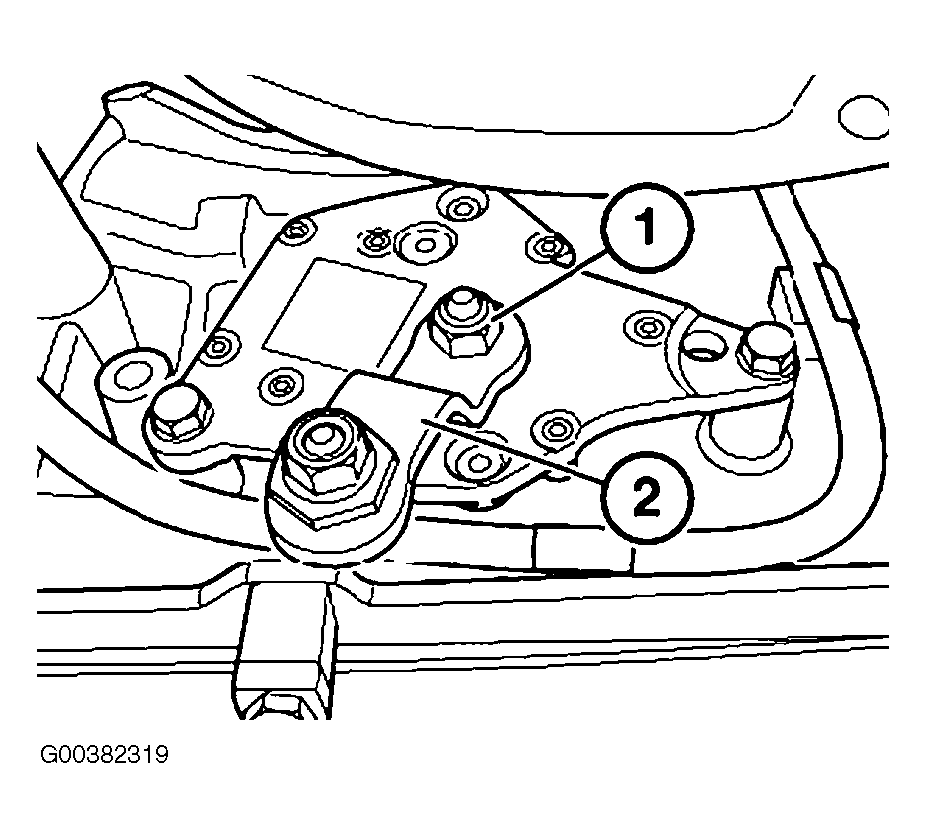

Fig 5: Removing Gearshift Lever

G00382319

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws. Detach position switch from manual shift valve shaft. See Fig 6 . Upon installation, pay attention to locating pin and cable routing.

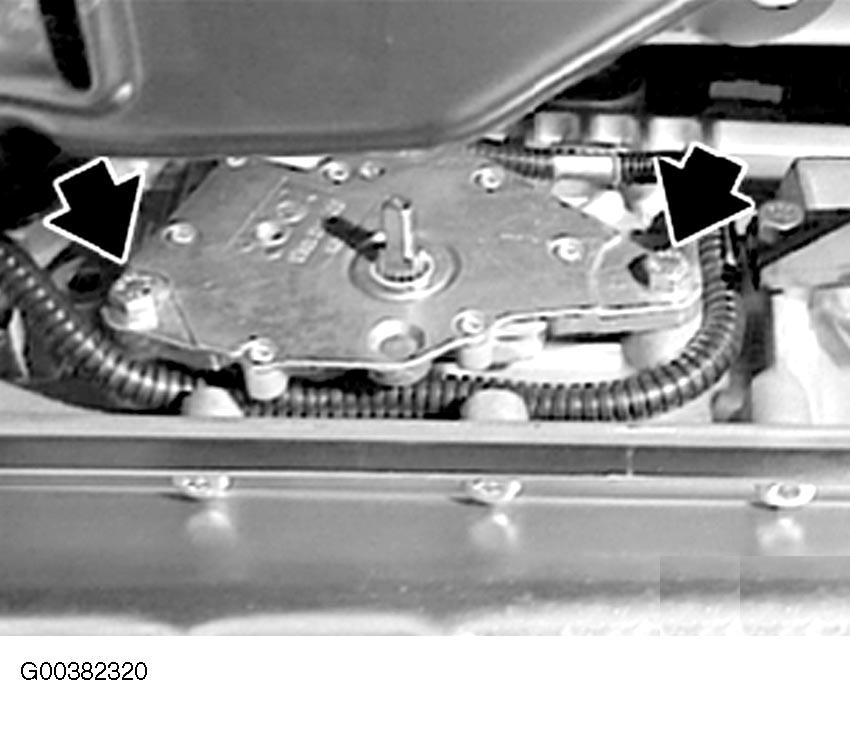

Fig 6: Detaching Position Switch

G00382320

Courtesy of BMW OF NORTH AMERICA, INC.

To install, reverse removal procedure.
