Add ATF After Repairs

WARNING: This page does not describe the selected car, but rather 49 other vehicles, including the 2007 BMW Z4, 2007 BMW X3, 2006 BMW Z4, 2006 BMW X5, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Selector lever to setting "P". The vehicle must be horizontal and should be secured to prevent it from rolling away. Connect BMW Diagnosis and Information System (DIS) or BMW MoDiC to car.

Release filler plug (1). See Fig 1 . Top up automatic transmission fluid until it flows over. Screw in filler plug (1) by hand. Start engine and run at idle speed. Operate brake and shift through all gears at idle speed several times (hold gears for 3 sec. in each case).

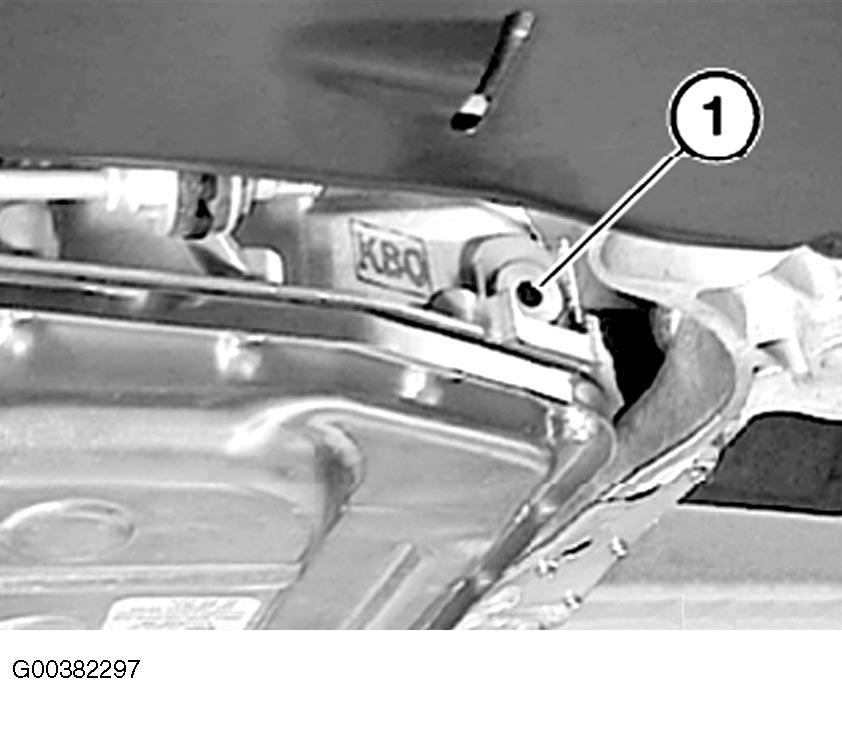

Fig 1: Locating Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Release filler plug (1) again. Top up automatic transmission fluid until it flows over. Increase temperature of automatic transmission fluid to 40-50°C. Check temperature of automatic transmission fluid with MoDiC or DIS. Screw in filler plug (1).

Installation: replace filler plug (1). Tighten to specification. See TORQUE SPECIFICATIONS .
