Section 51 (On-Vehicle Servicing - (A5S 360R/390R)): Application
WARNING: This page does not describe the selected car, but rather 49 other vehicles, including the 2007 BMW Z4, 2007 BMW X3, 2006 BMW Z4, 2006 BMW X5, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

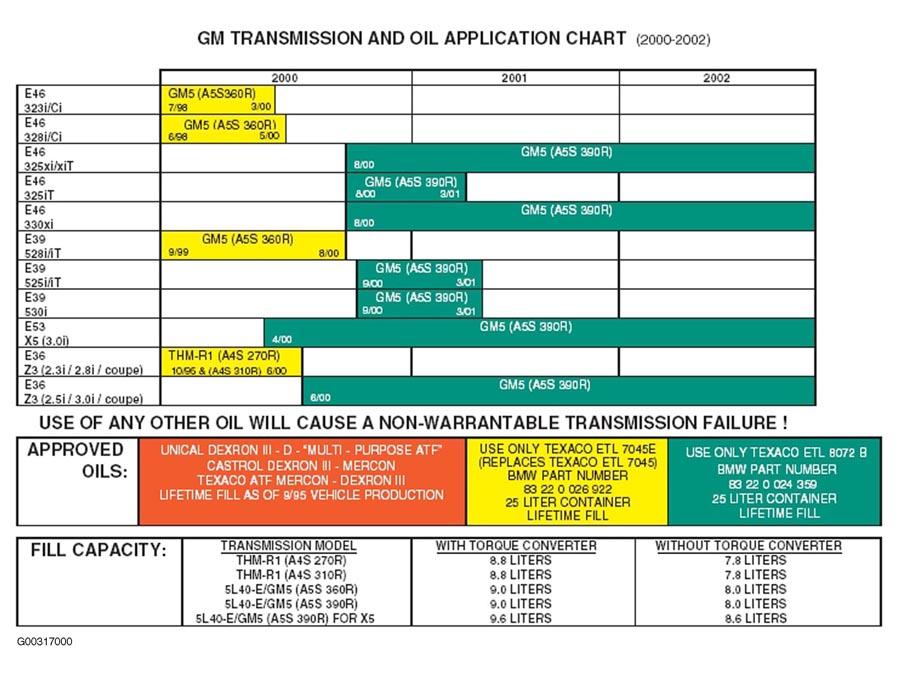

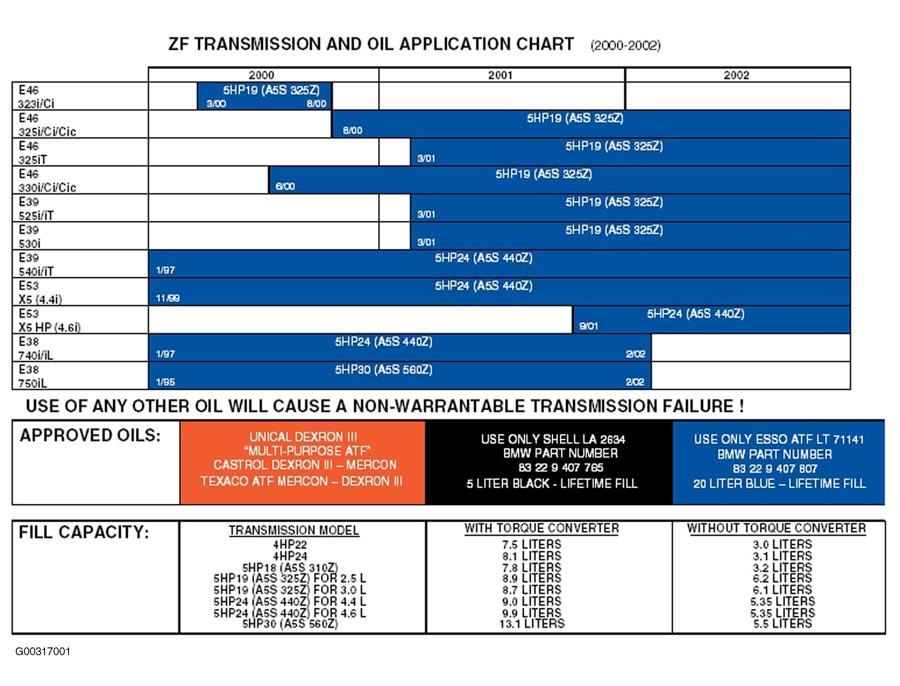

For transmission application, see AUTOMATIC TRANSMISSION APPLICATION table. For transmission application and oil recommendation, see Fig 1 -Fig 5 . Also see LUBRICATION .
AUTOMATIC TRANSMISSION APPLICATION
| Application | Transmission Model |
|---|---|
| 3-Series (E46) | A5S 325Z (5HP19), A5S 360R/390R (GM5) |
| 525i (E39) | A5S 325Z (5HP19) |
| 528i (E39) | A5S 360R/390R (GM5) |
| 530i (E39) | A5S 325Z (5HP19) |
| X3 (E83) | A5S 360R/390R (GM5) |
| X5 3.0L (E53) | A5S 360R/390R (GM5) |
| Z4 (E85) | A5S 325Z (5HP19) |
