Removal & Installation: Installation

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2007 BMW Z4, 2006 BMW Z4, 2006 BMW M3, 2006 BMW 330Ci, and 2006 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When joining up engine and transmission, ensure ease of movement of torque converter.
  1. Pay attention to adapter sleeves (1 and 2). See Fig 1 . Remove damaged adapter sleeves from transmission housing and replace.
  2. Sheet metal flywheel is provided with three recesses for the torque converter retaining lugs. When joining together engine and transmission, the three retaining lugs on the torque converter must be flush with the three recesses on the sheet metal flywheel. See Fig 2 . Failure to comply with this requirement will result in damage to the automatic transmission. Turning on the torque converter or engine is no longer possible after guiding engine and transmission together and would cause damage.
  3. Bore on driver must point to center of aperture in cover plate. See Fig 3 .
  4. Tighten transmission-to-engine screws to specification. See Figure . See TORQUE SPECIFICATIONS  .
  5. Use only original bolts. Tighten torque converter-to-flywheel screws to specification. See Figure . See TORQUE SPECIFICATIONS  .
  6. To complete installation, reverse removal procedure. Replace sealing rings on lines. See Fig 4 .
  7. On all vehicles except compacts and Z4, Remove any butylene tape already fitted on center bearing. Clean adhesive area on center bearing and on body. Coat adhesive area on body with mineral oil to enable sticky butylene tape to feed easily into propeller shaft tunnel. This prevents any deformation of butylene tape. Pull masking tape off butylene tape on both sides. Attach butylene tape (1) to outside of center bearing (2). See Fig 5 .
  8. On all vehicles except compacts and Z4, press center bearing (2) into transmission tunnel. See Fig 6 .
  9. Tighten nuts of center mount-to-body to specification. See Figure . See TORQUE SPECIFICATIONS  .
  10. Replace self-locking nuts of flexible disk-to-propeller shaft and transmission output flange and tighten to specification. See Figure . See TORQUE SPECIFICATIONS  .
  11. Tighten screws of cross member-to-body and rubber mounts-to-cross member or transmission to specification. See Figure . See TORQUE SPECIFICATIONS  .
  12. Tighten cable on shift tower/transmission to specification. See Figure . See TORQUE SPECIFICATIONS  .
  13. Check cable for ease of movement. Move selector lever to Park. Grip clamp bushing (1). See Fig 7 . Loosen nut (2). Press selector lever (3) forwards into park position. Press cable (4) in direction of arrow and release again. Grip clamping piece (1). Tighten nut (2) to specification. See TORQUE SPECIFICATIONS  . Move selector lever to park position. Check whether parking gear is engaged by rotating Cardin shaft or by pushing car.
  14. After completion of work, check transmission fluid level. Connect battery.
Fig 1: Locating Adapter Sleeves
G00056375Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: Aligning Recesses In Sheet Metal Flywheel
G00367865Courtesy of BMW OF NORTH AMERICA, INC.
Fig 3: Pointing Bore To Center Of Aperture In Cover Plate
G00367866Courtesy of BMW OF NORTH AMERICA, INC.

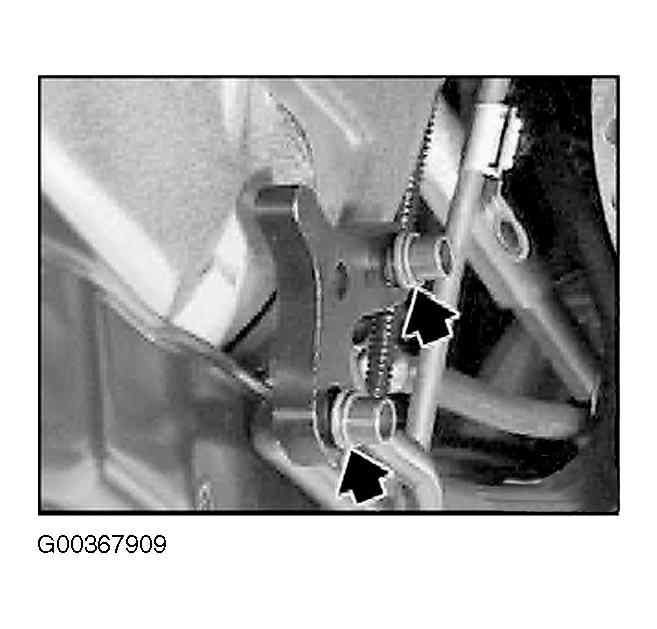

Fig 4: Locating O-Rings
G00367909Courtesy of BMW OF NORTH AMERICA, INC.
Fig 5: Sticking Butylene Tape To Center Bearing
G00367869Courtesy of BMW OF NORTH AMERICA, INC.
Fig 6: Pressing Center Bearing Into Transmission Tunnel
G00367870Courtesy of BMW OF NORTH AMERICA, INC.

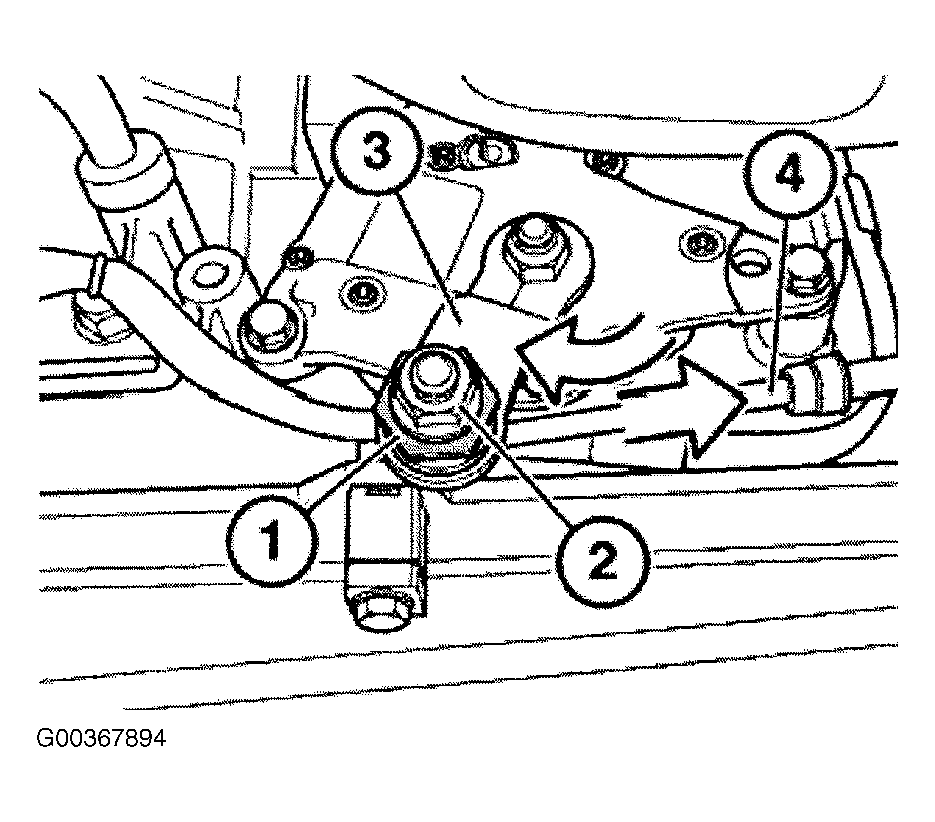

Fig 7: Adjusting Shift Lever
G00367894Courtesy of BMW OF NORTH AMERICA, INC.
