Transmission Fluid Application

WARNING: This page does not describe the selected car, but rather 212 other vehicles, including the 2012 BMW 750i, 2012 BMW 750Li, 2011 BMW M3, 2011 BMW 750i, and 2011 BMW 750Li. However, it is still accessible from the selected car via links, so may be relevant.

There are numerous types of transmission fluid used in BMW transmissions. With the exception of the early transmissions (4HP22/24, A4S310/270R and the A5S310Z) all current BMW transmissions use "Lifetime Fill" transmission fluid. There is no maintenance required for these transmissions. It is important to use the correct fluid. Incorrect use of the transmission fluid can cause non-warrantable transmission damage.

When performing repairs on transmissions with lifetime fluid, it is important to drain the transmission fluid in to a clean container for re-use. New fluid should only be used for transmission replacement and for topping off after repairs.

Also, transmission fluid level is vital to the proper operation of the transmission. See Fig 1.

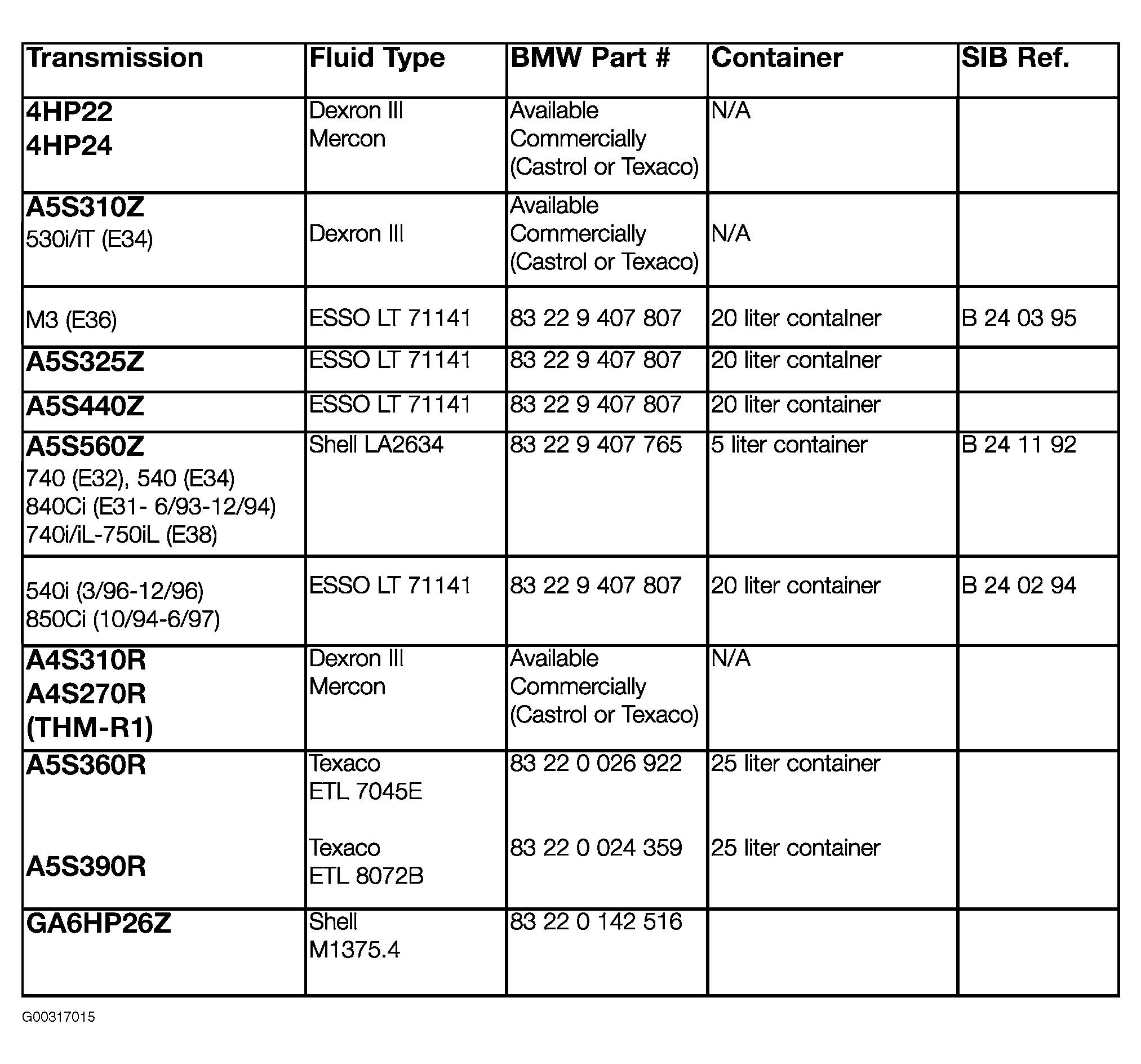

Fig 1: Transmission Fluid Application

Courtesy of BMW OF NORTH AMERICA, INC.
