Wilson Gear Set
WARNING: This page does not describe the selected car, but rather 212 other vehicles, including the 2012 BMW 750i, 2012 BMW 750Li, 2011 BMW M3, 2011 BMW 750i, and 2011 BMW 750Li. However, it is still accessible from the selected car via links, so may be relevant.

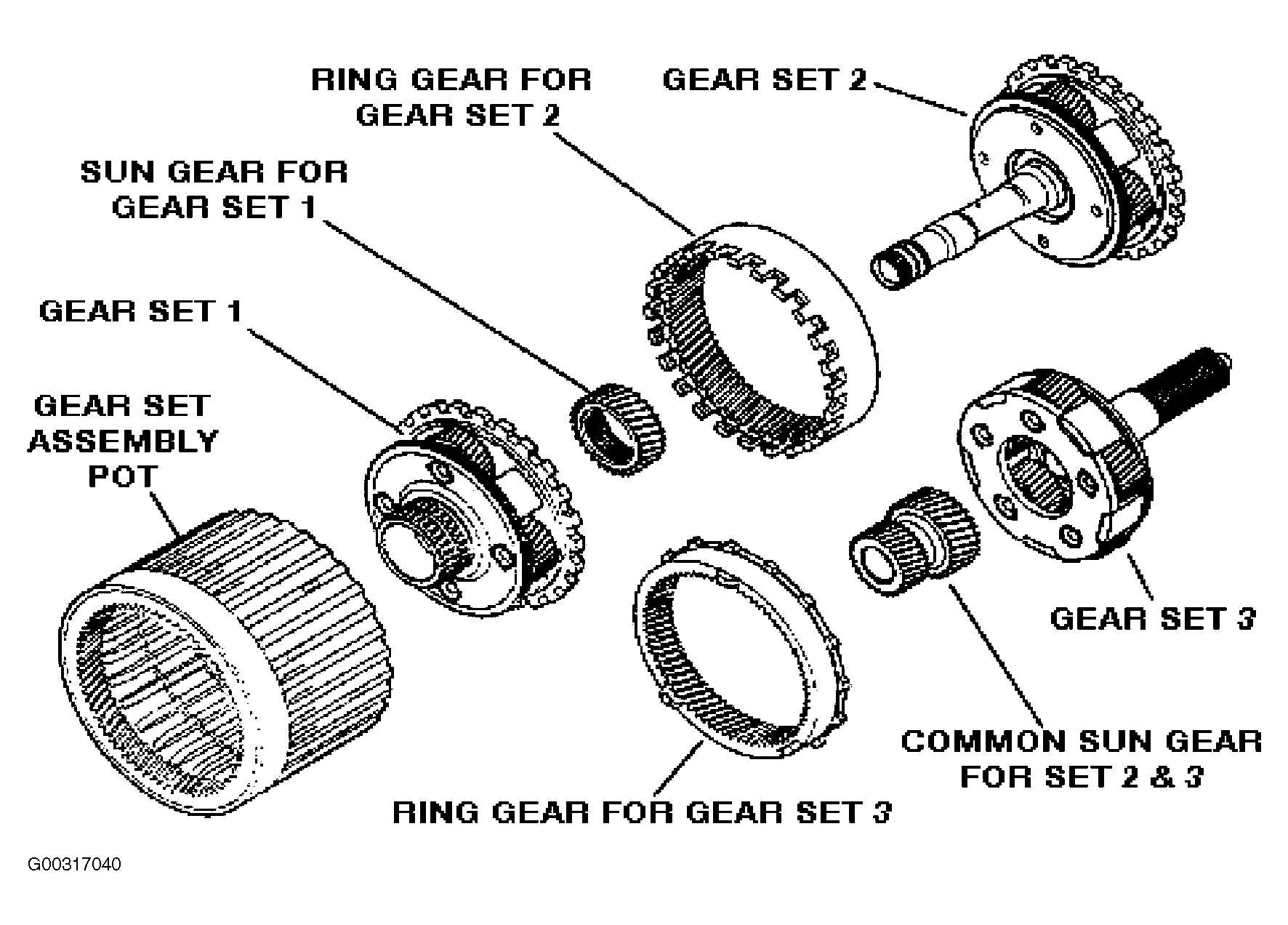

On BMW transmissions, the Wilson gear set is only used on the A5S440Z and A5S560Z. See Fig 1. The Wilson Gear Set consists of three planetary gear sets. The ring gear of the first gear set, the planetary carrier of the second gear set and the ring gear of the third planetary gear set and directly connected to the "Pot". The "Pot" is a cylindrical device that slides over all of the components to unitize the individual gear sets into an assembly. The characteristics of the Wilson Gear Set are:
- Three planetary carriers.
- Three ring gears, with ring gear 1 and 3 meshed to "Pot" assembly.
- Three sun gears, sun gear 2 and 3 are common (attached). Sun gears 2 and 3 are also referred to as the "Double Sun Gear".
