Ravigneaux Gear Set
WARNING: This page does not describe the selected car, but rather 212 other vehicles, including the 2012 BMW 750i, 2012 BMW 750Li, 2011 BMW M3, 2011 BMW 750i, and 2011 BMW 750Li. However, it is still accessible from the selected car via links, so may be relevant.

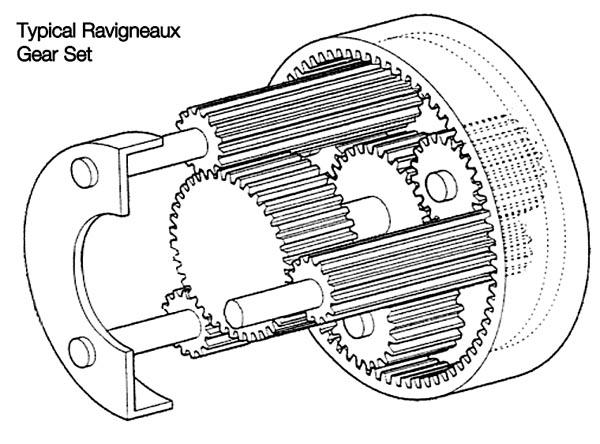

A new version on the planetary design is the Ravigneaux gear set. See Fig 1. This gear set is capable of 4 forward gears and one reverse. However, depending upon application it may be used with an auxiliary gear set. Here are some examples:
- The A4S310/270R uses the Ravigneax set for 3 forward gears and one reverse. Overdrive is obtained by the auxiliary gear set.
- The A5S310Z uses a combination of the Ravigneaux gear set and the auxiliary gear set to obtain 5 forward gear and one reverse. First, second and reverse gears are achieved by using a combination of both gear sets.
- The A5S360/390R uses a modified version of the Ravigneaux set that provides five forward gears and one reverse. There is no auxiliary gear set used.
- One planetary carrier which is common to both sets of planetary pinions.
- Two sets of planetary pinions, one long set with small diameter and one short set with large diameter.
- Two sun gears, one input sun gear and one reaction sun gear.
- One common ring gear.NOTE: The Ravigneaux Gear Set shown in the figure is a typical representation. There are a few variations of this arrangement used on BMW transmissions.
