Lepelletier Gear Set
WARNING: This page does not describe the selected car, but rather 212 other vehicles, including the 2012 BMW 750i, 2012 BMW 750Li, 2011 BMW M3, 2011 BMW 750i, and 2011 BMW 750Li. However, it is still accessible from the selected car via links, so may be relevant.

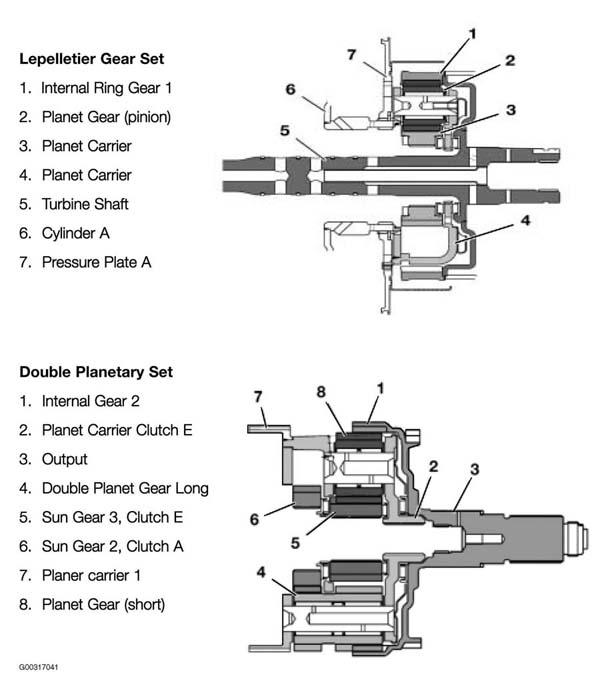

The Lepelletier Gear Set was introduced to BMW on the ZF GA6HP26Z. See Fig 1. This gear set allows for 6 forward speeds and one reverse gear using a light weight design. The planetary gear train consists of a single carrier planetary gear train and a downstream double planetary gear train.
