One-Way Clutches (Freewheel)

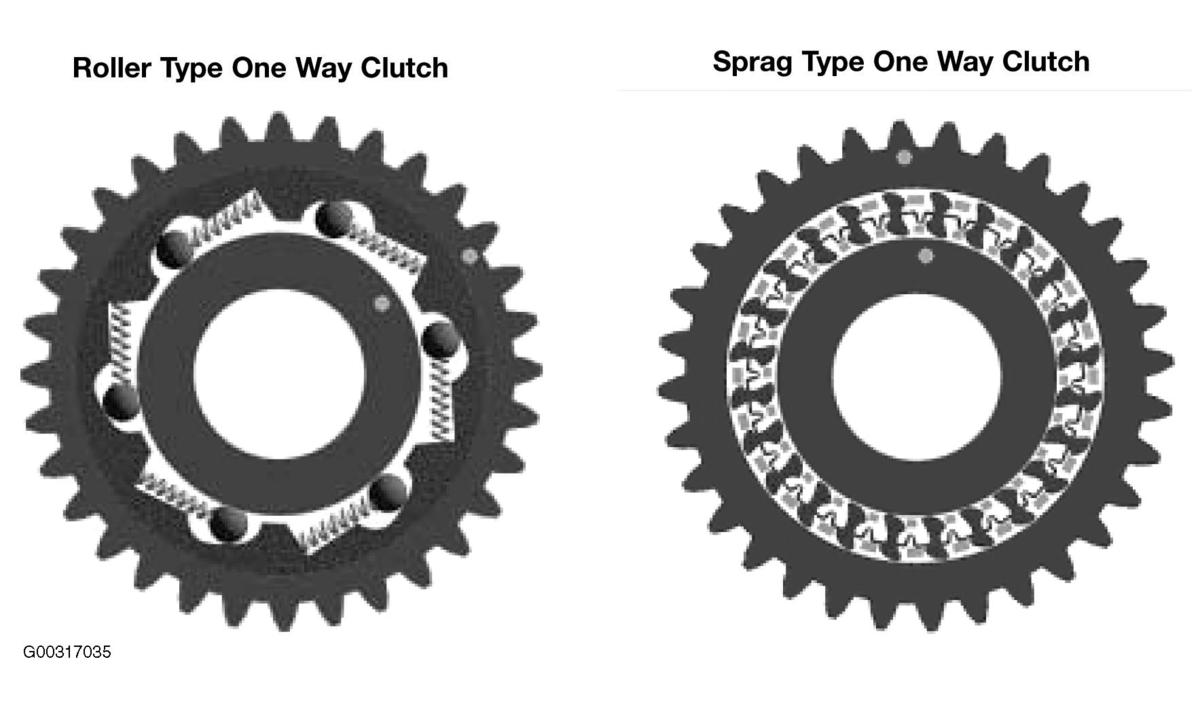

The one way clutch consists of an inner and outer ring with a locking device between the two. The one way clutch is designed to lock in one direction and to allow free rotation in the other direction. See Fig 1. Currently there are two types of one way clutches used in BMW transmissions:
- Roller type which consists of spring loaded rollers between the inner and outer race of the one way clutch. (Roller type is also used without springs on some applications).
- Sprag type which consists of asymmetrical shaped wedges located between the inner and outer race of the one way clutch.
In both versions of the one way clutch (freewheel), rotation is only allowed in one direction. Using the diagrams above, imagine that the inner races were locked stationary. The outer race would only be allowed to turn counter clock wise. In the clock wise direction, the outer race of both versions would be locked. In the roller type, the helper springs would push the rollers up the ramp on the outer race. This would force the rollers in to the smaller area which would cause the outer race to lock, In the sprag type, the asymmetrical wedges would lock between the inner and outer race. The one way clutches are used in the transmission to prevent an interruption of drive torque during certain gear shifts and to allow engine braking during coasting. Also there is a one way clutch in the stator of the torque converter.
