Oil Pump: Notes
WARNING: This page does not describe the selected car, but rather 212 other vehicles, including the 2012 BMW 750i, 2012 BMW 750Li, 2011 BMW M3, 2011 BMW 750i, and 2011 BMW 750Li. However, it is still accessible from the selected car via links, so may be relevant.

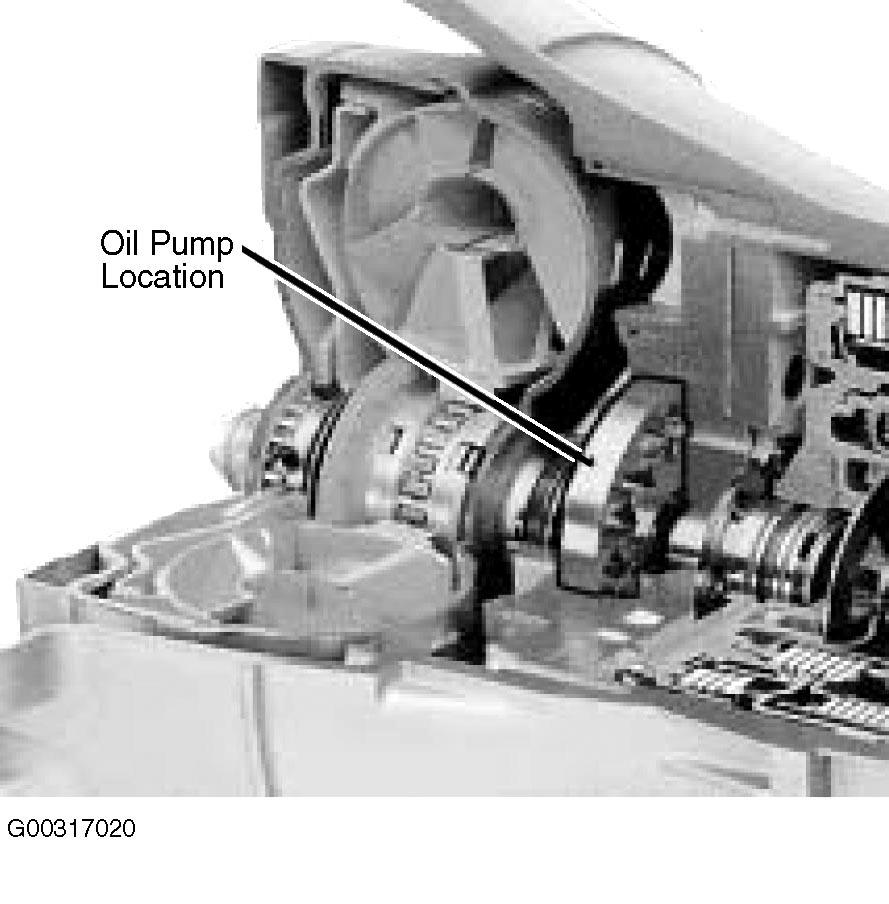

The transmission oil pump is used to circulate oil and provide pressure for hydraulic operation. The pump is driven by the torque converter shell and rotates with engine. Fluid is drawn from the sump through the filter and distributed to the various transmission hydraulic systems. The output pressure is regulated to an operating pressure of approximately 25 bar. Currently there are two types of oil pumps used in BMW transmissions: Crescent type and Vane type. See Fig 1.
