Electro/Hydraulic Valve Body

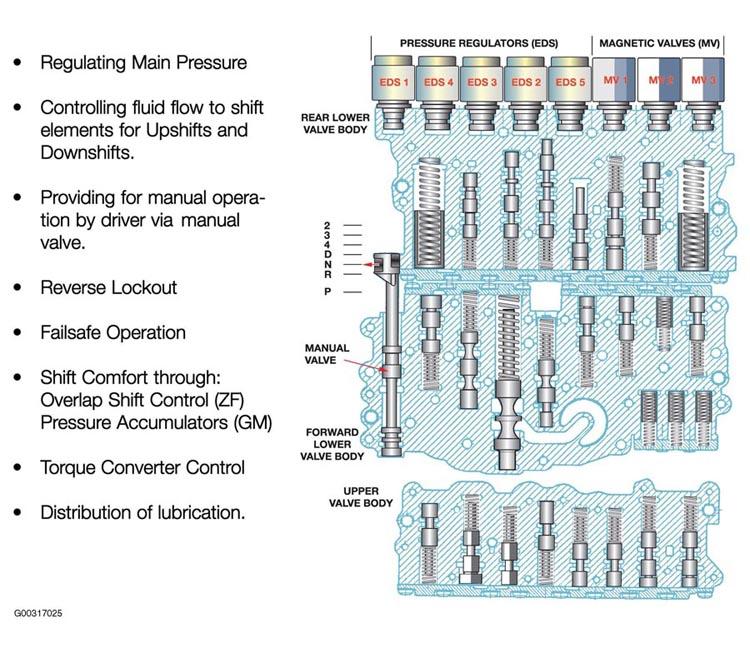

The valve body assembly is the main shift control element in the transmission. In non-EH transmissions the valve body was only hydraulically controlled. In the current EH (electrohydraulic) transmissions the valve body is similar in design, but now also housing a number of shift solenoids which are controlled by the TCM. The valve body consists of a number of sub-assemblies. Each sub-assembly contains a number of spool valves which are hydraulically controlled. Most spool valves are opposed by spring pressure. The spool valves are used to direct hydraulic fluid flow to the various shift elements in the transmission. There is also a manual valve which is connected to the shift assembly by a cable. The manual valve allows the drivers to select the basic operating mode (or ratio). See Fig 1. The valve body is responsible for the following:
- Regulating main pressure.
- Controlling fluid flow to shift elements for Upshifts and Downshifts.
- Providing for manual operation by driver via manual valve.
- Reverse Lockout.
- Failsafe Operation.
- Shift Comfort through: Overlap Shift Control (ZF) Pressure Accumulators (GM).
- Torque Converter Control.
- Distribution of lubrication.
