Test Group YBMXV03.2S52
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2000 BMW Z8, 2000 BMW Z3, 2000 BMW X5, 2000 BMW M5, and 2000 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
- Catalyst Monitoring General Description - Catalyst monitoring is based on monitoring catalyst's oxygen storage capability. The engine closed loop feedback control generates lambda (air/fuel ratio) oscillations in the exhaust gas. These oscillations are dampened by the oxygen storage activity of the catalyst. The amplitude of the remaining lambda oscillations downstream of the catalyst indicates the storage capability.
- Monitoring Procedure -

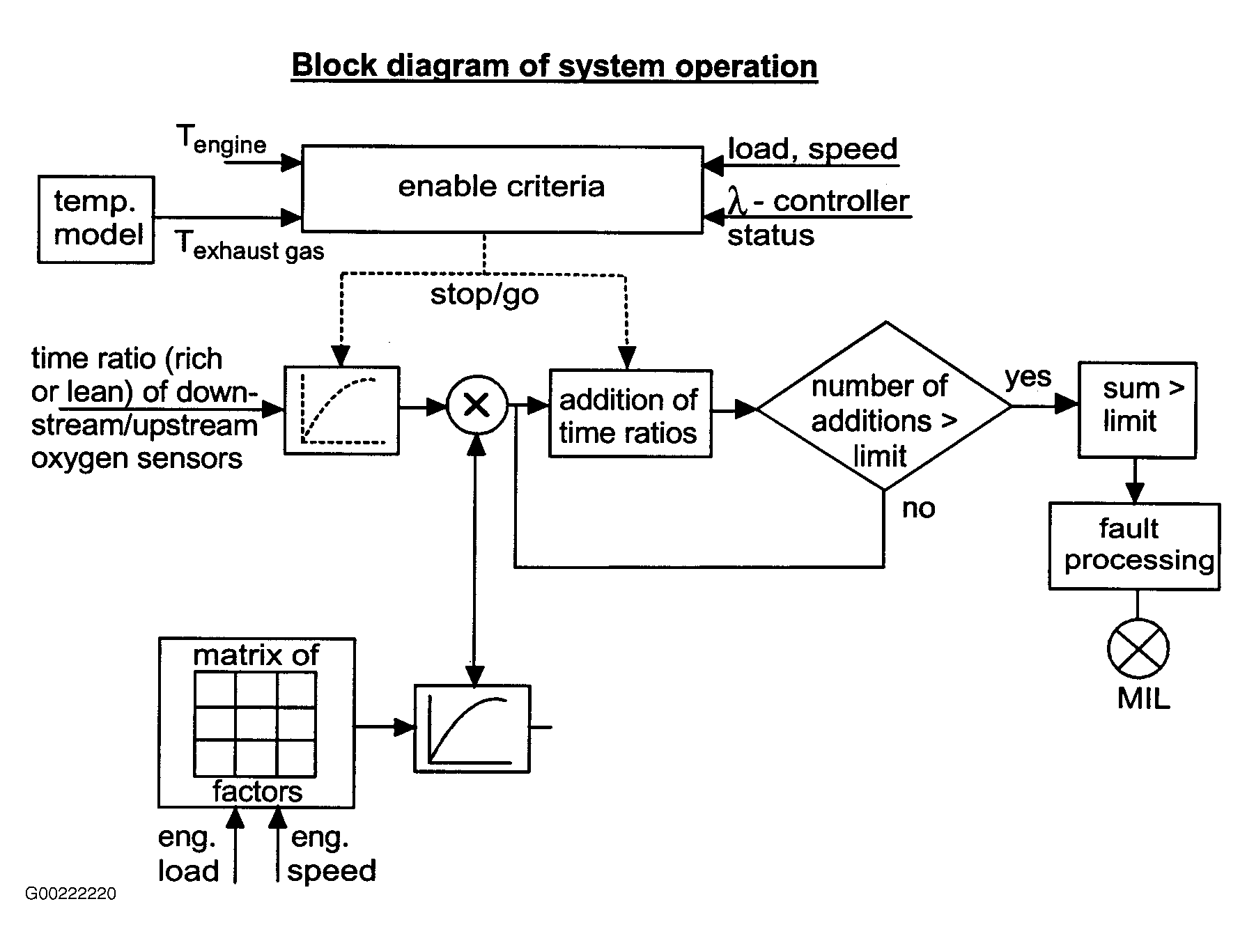

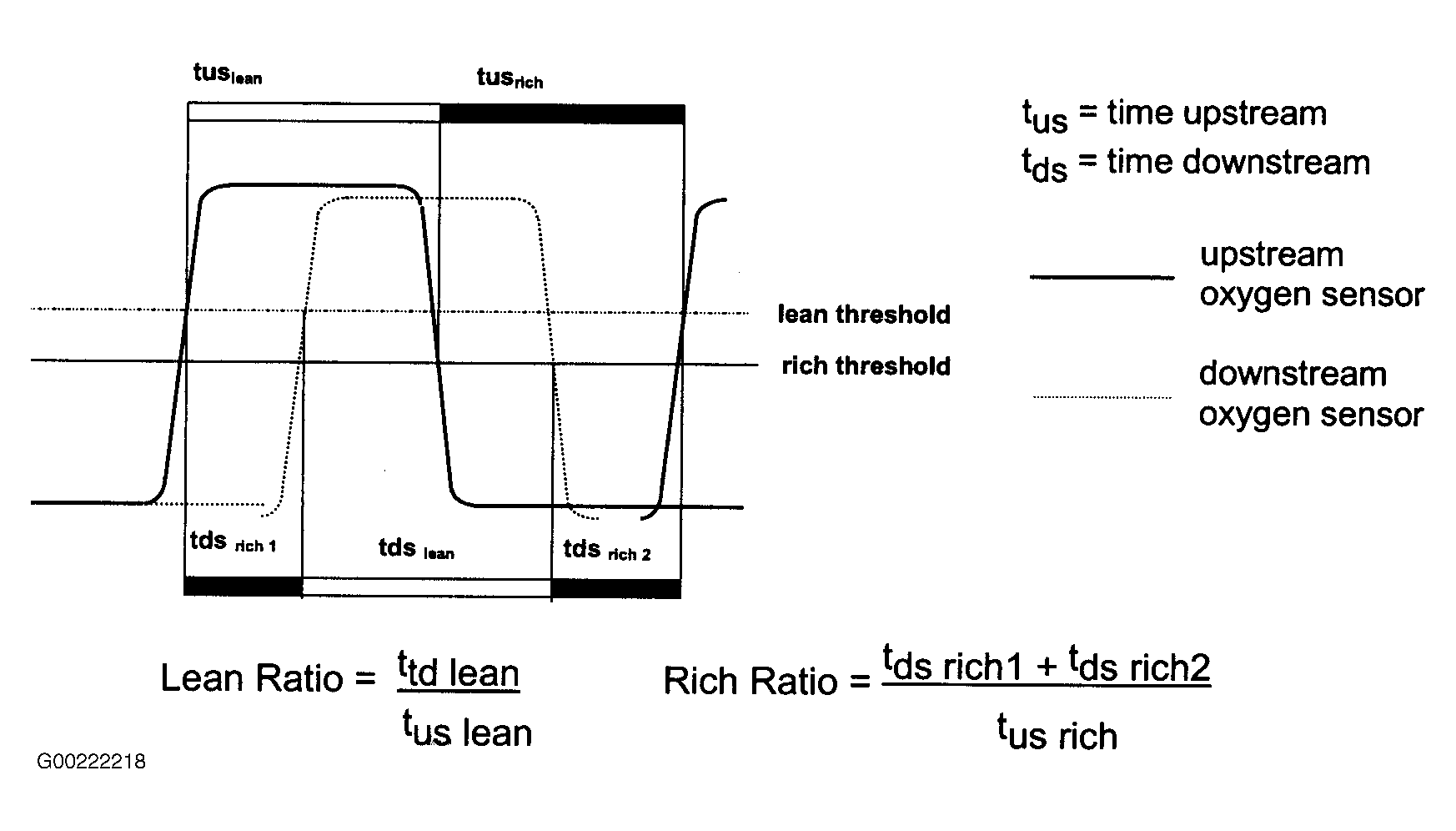

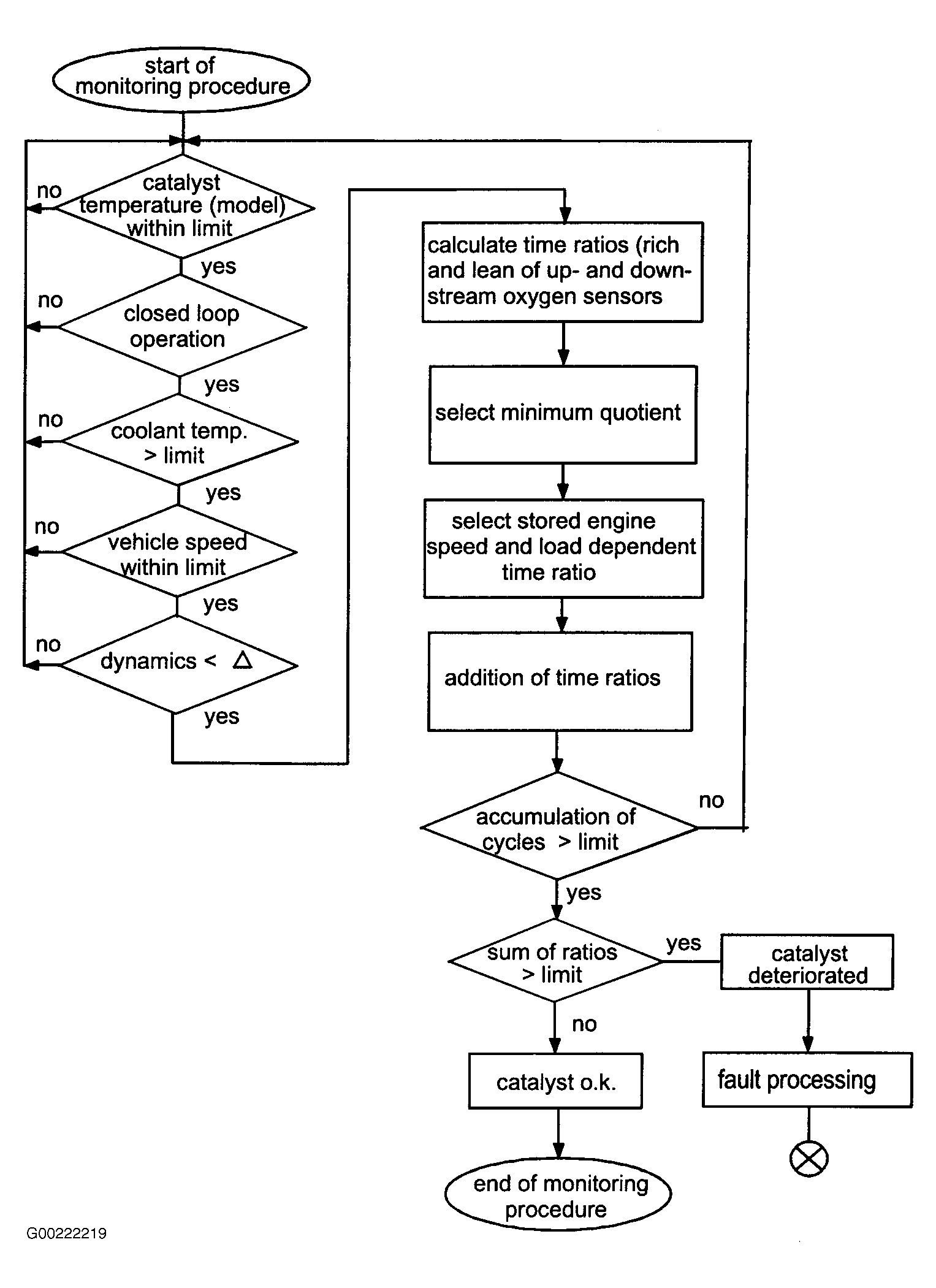

The conversion efficiency of both catalyst systems (Cyl. 1-3 and Cyl. 4-6) are separately monitored. In order to determine the efficiency, lean and rich time periods of the oxygen sensors up and downstream will be compared. See Fig 1-Fig 3
.
The smaller of the two ratios is used for further processing. The cycle counter is incremented by one after each cycle. If the counter reaches a predetermined number of checks, and the sum of all ratios determined is greater than a fixed value, a fault will be stored in computer memory. The monitoring procedure is then terminated until the engine is shut-off and started again.
